Micodus MV901N Price Gps Gsm Hardwired Car Gps Tracker Vehicle Locator Location Tracking Device Geo Fancing

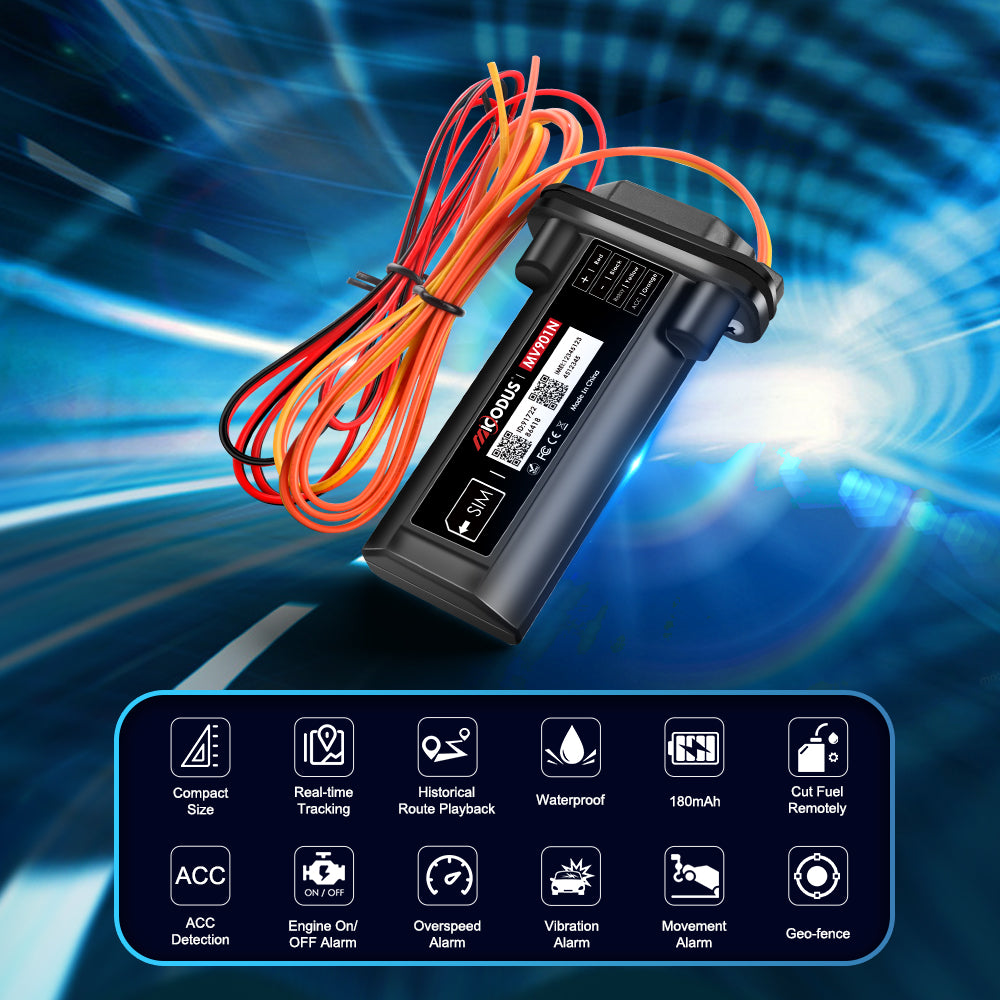

Main Functions:
1. Compact Size Design and Easy Installation
2. Wide Operating Voltage 9-95V DC, compatible with most vehicles on the market!
3. Remotely Cut Off & Resume Fuel.
4. GPS+LBS+GLONASS+BEIDOU Positioning Ways

5. Engine Start/Flameout Alarm.

6. ACC Detection.
5. Realtime Tracking
6. History Route Playback for 180days
7. Power Saving Mode
8. Overspeed Alarm,Movement Alarm,Vibration Alarm.Geofence,Cut Wire Alarm,Engine ON/OFF Alarm.
9. Waterproof
10.The tracking platform supports multiple languages.(Stable, Fast, Accurate)

12.The tracking platform supports multiple languages!(ww.micodus.net)

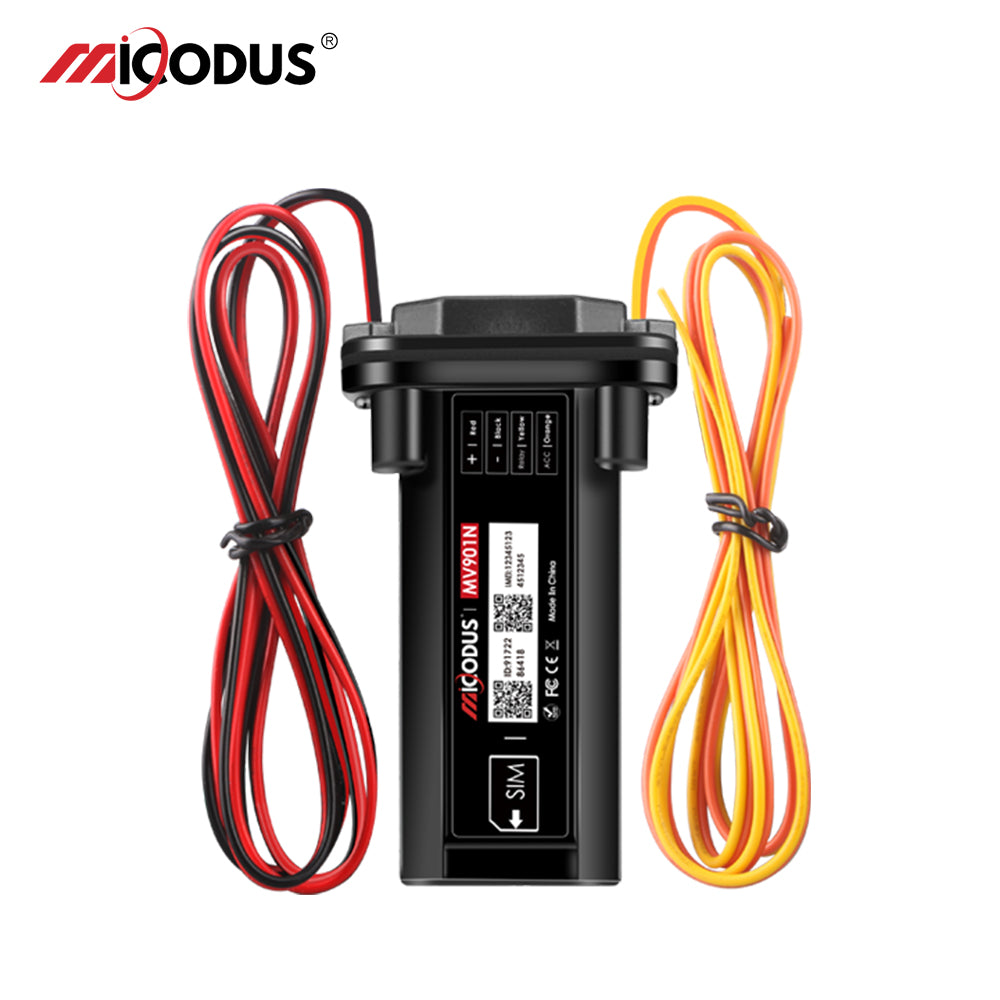

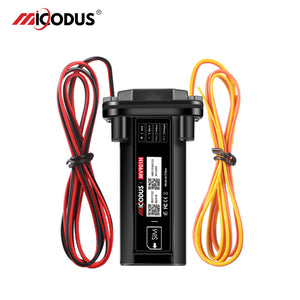

Product Structure

Dimensions: 90(L) x 41(W) x 14(H)mm;

Weight: 49g

9-95V Wide Working Voltage

With wide working voltage, MV901N can work with car, truck, motorcycle, electric car and other vehicles. Besides, it has built-in protection power board, you needn't worry about the high pressure damage.

Realtime Tracking

It is working based on the GNSS system(GPS+GLONASS+BEIDOU), has no limit on the tracking distance. And you will can realtime track your target on Google maps at anytime anywhere.

History Route Playback

Our MiCODUS tracking platform can record history route data up to 180 days, no matter wherever it has been, all under your eyes.

Waterproof and Dust Resistant

MV901N has special waterproof and dust design which can ensure stable performance under tough environment.

Remotely Cut off Fuel

Once met emergency situation you will can remotely cut off the fuel of your car via your cellphone, you also can resume it remotely.

Engine Start/Flameout Alarm

Under arm status, if the device detected engine start or flameout action, it will immediately report alarm via SMS and call.

Overspeed Alarm

You can preset a limit speed for MV901N, once your car exceed the limit speed this vehilce tracker will report alarm message.

GPS Data Supplementary Of Newwork Blind Area

Without network, the device will disconnect with the server, but the GPS data will be saved by the built-in memory, once the metwork signal recovered the saved data will be uploaded to the tracking server.

Multiple Alarms For Anti-theft

MiCODUS MV901N GPS tracker has multiple functions: Geo-fence, Movement alarm, Vibration alarm, Engine ON/OFF alarm, Cut wire alarm.

How to Install the SIM Card

1). Unscrew the screw and open the lip.

2). Plug-in SIM card (SIM card not include).

3). After inserting the card, there are blue and orange LED lights flashing respectively.

4). Just screw in the screws.

Web Tracking Platform and Mobile APP

LIFETIME FREE ! Web server and both iOS and Android version APP are available! www.micodus.net APP; MiCODUS Support Multiple languages tracking platform.There is demo account , just please go there to click the demo account button directly to try it. no need user name and password.

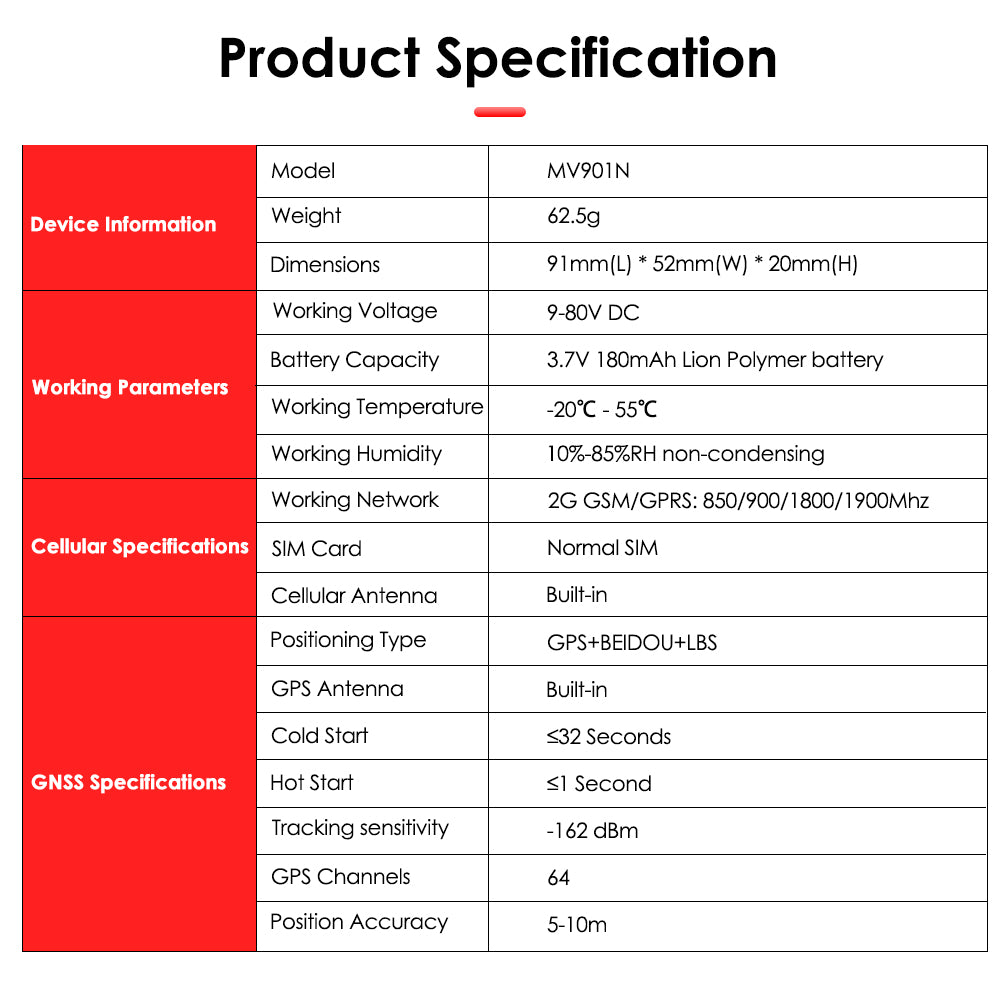

Characteristics

Model MV901N

Weight 62.5g

Dimensions 91mm(L) * 52mm(W) * 20mm(H)

Backup Battery Working Time 1-2 hours

Working Voltage 9-80V DC

Working Current 4V/Average 45mA

Sleep Current 4V/less than 5mA

Battery Capacity 3.7V 180mAh Li-ion Battery

Working Temperature -20°C - 55°C

Working Humidity 10%-85%RH non-condensing

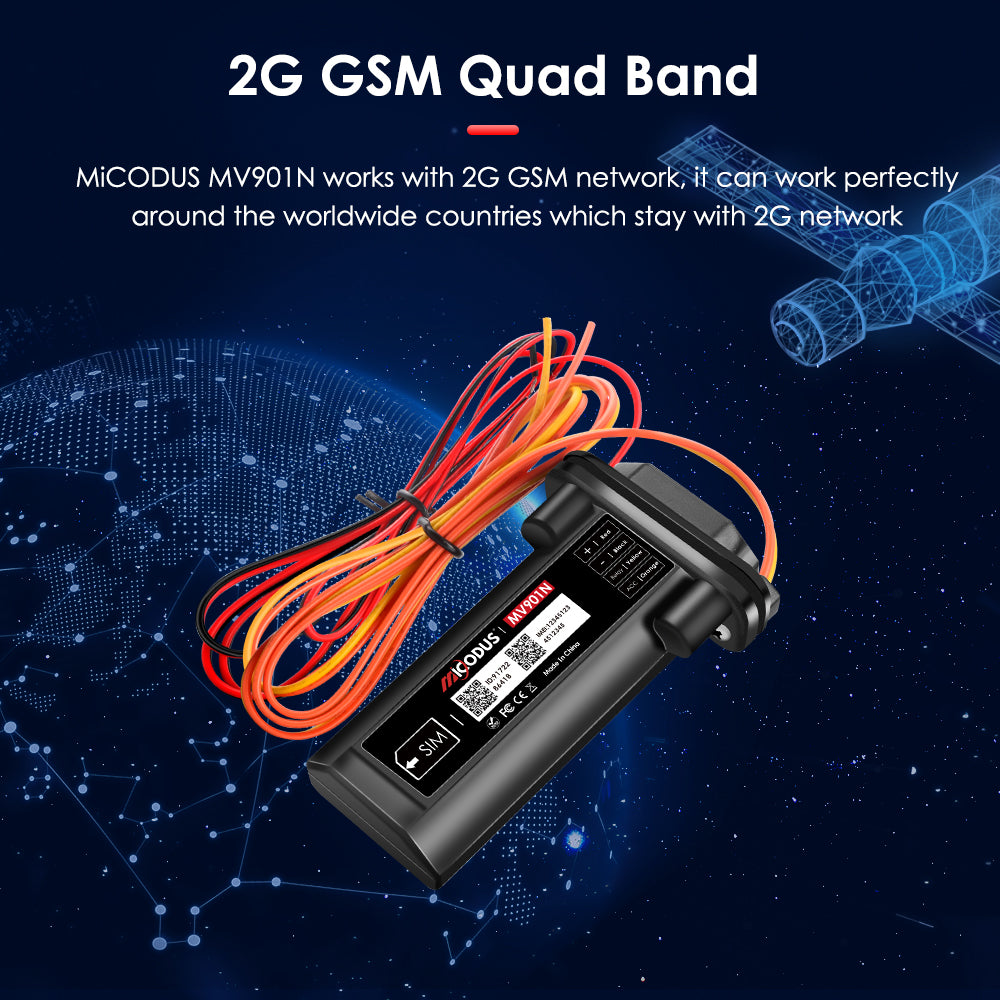

Working Frequency 2G GSM 850/900/1800/1900MHz

SIM Card Normal SIM

Cellular Antenna Built-in

Positioning Type GPS+BEIDOU+LBS

GPS Antenna Built-in

Cold Start ≤32 Seconds

Hot Start ≤1 Second

Tracking Sensitivity -162 dBm

GPS Channels 64

Position Accuracy 5-10m
