VL512 LTE OBD GPS Tracker Hidden Remote Sound 9-36V Mini Car Tracking Realtime Monitor 4G Car Locator Update Of OB22 PC

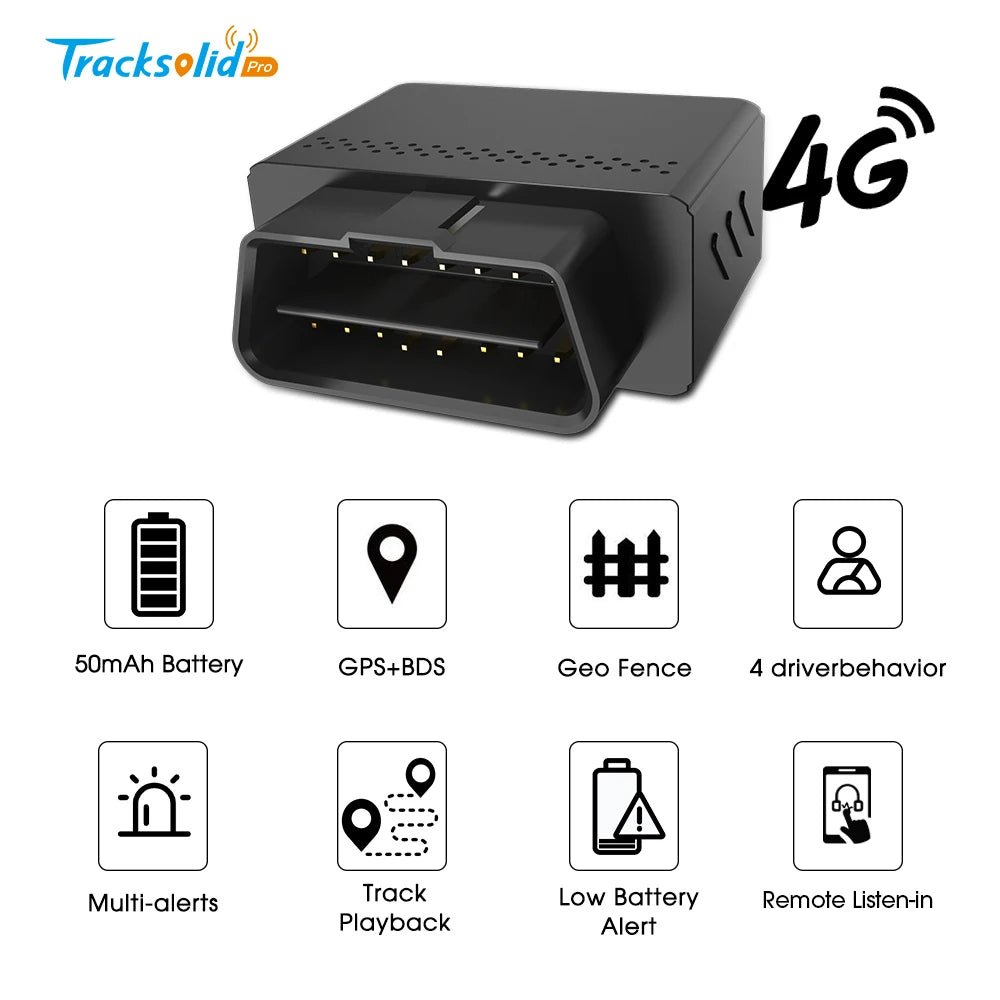

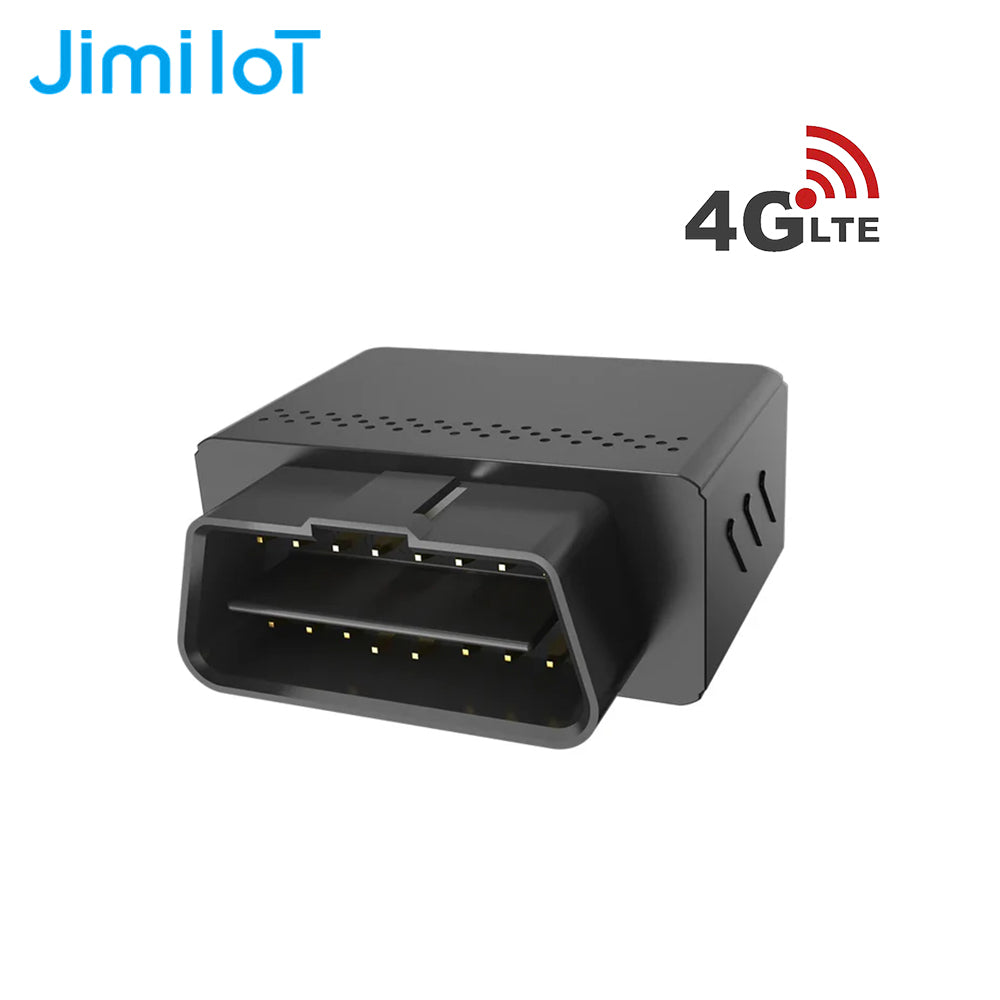

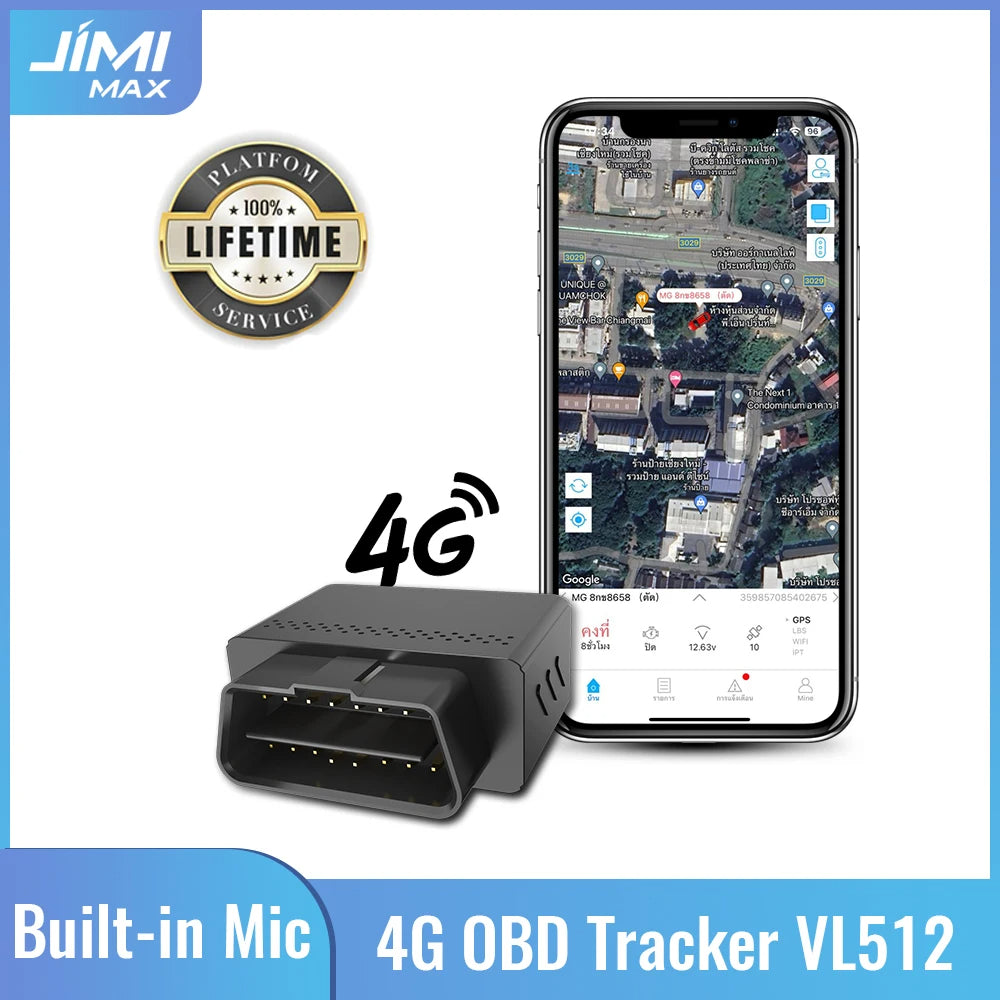

1. Plug & Play 4G OBDII GNSS GPS Tracker

The VL512 is a 4G OBDII tracker designed specifically for use in vehicles. Featuring a compact size body and OBD port, this device is easy to install on virtually any passenger car and ideal for fleet management. LTE communication with GSM (2G) fallback ensures a solid connection in almost all cases, and the GPS+BDS positioning system provides more accurate positioning capability, helping you stay informed about the location or condition of your fleet, telling you exactly where any of your vehicles has been, where it’s heading and how fast it’s traveling.


2. Why VL512 LTE OBD Tracker?
1). With Voice Monitoring

Use SOS numbr to call the SIM card number inside our VL512, 10 seconds later you will hear the voice around the car.

2). Very easy for installation
You can install any kind of car with OBD port, even if our VL512 car obd not suit for your connector, you can buy a converter OBD cable from market easily.

3). Driver Behavior Monitoring
Receive alerts when any of 4 kinds of dangerous driving behavior is detected.
Harsh speeding or sharp turnning, collision alerts etc.

4). Powered Without Charger
Our VL512 by adopting ultra-low power consumption - battery power supply. The battery power consumption is negligible and will not damage the battery, let you get rid of the daily charge repeatedly.

5). GPS+LBS Positioning
Two complementary positioning systems ensure the locations to be accurately displayed on cloud platform.


6). Power-off Alert
Get instant alerts when an interruption of power supply is detected.


7). LTE & GSM Network
Communication via 4G LTE networks with 2G GSM fallback. And can set 20 Geo-fences for each locator.

8). Over speed Alert
You'll be notified when vehicle speed is higher than preset value.

9). Ignition Detection
Constant, real-time ACC/ignition status from the vehicle.

Detailed Spec of VL512 4G OBD car tracker.

• GNSS
• Positioning system GPS/BDS
• Positioning accuracy ＜2.5m CEP
•

• Tracking sensitivity -165 dBm
• Acquisition sensitivity -148 dBm (cold) /-163 dBm (hot)
• TTFF (open sky) Avg. hot start ≤1sec
• Avg. cold start ≤32sec
• Cellular
• Communication network LTE Cat 1 + GSM
• Frequency LTE FDD: B1/B3/B7/B8/B20/B28
• LTE TDD: B34/B38/B39/B40/B41
• GSM: 850/900//1800/1900MHz
• Power
• Battery 50mAh industrial-grade LiCo battery
• Input voltage 9-36VDC
• Interface
• LED indication GNSS (Blue), Cellular (Green)
• Connector
• OBDII port:
• SIM Nano-SIM
• USB:1 x USB Type-C for configuration
• Data storage 16+16MB
• Physical specification

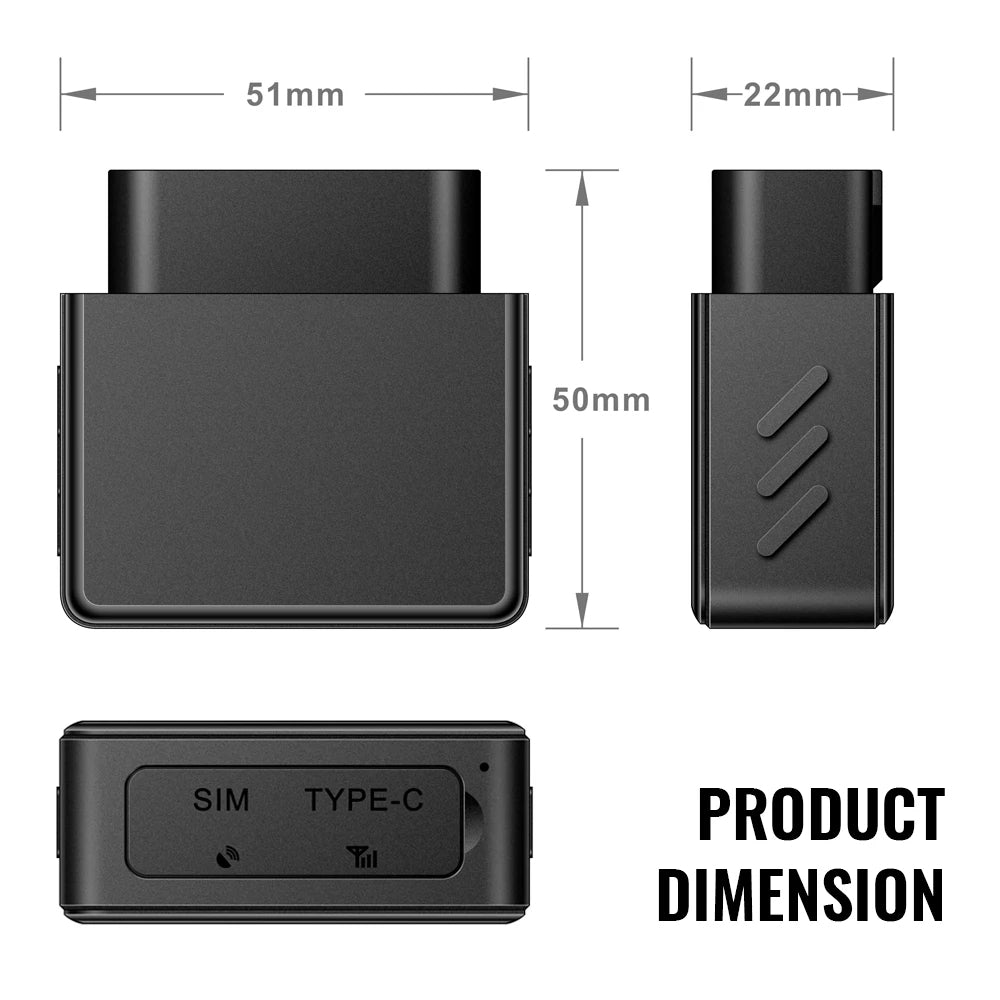

• Dimensions 51.0 x 50.0 x 22.0mm
• Weight 42g
• Operating environment
• Operating temperature -20°C to 70°C
• Operating humidity 5%～95%, non-condensing
• Feature:
• Voice monitoring range ≤5 meters
• Sensors Accelerometer
• Ignition detection: External Power Voltage
• Scenarios: Vehicle movement alert, Speeding alert, Geo-fence, Voice-monitoring, Vehicle battery detection, Power supply disconnection.
• Driving behavior analysis Harsh acceleration, Harsh braking, Harsh cornering, Collision.

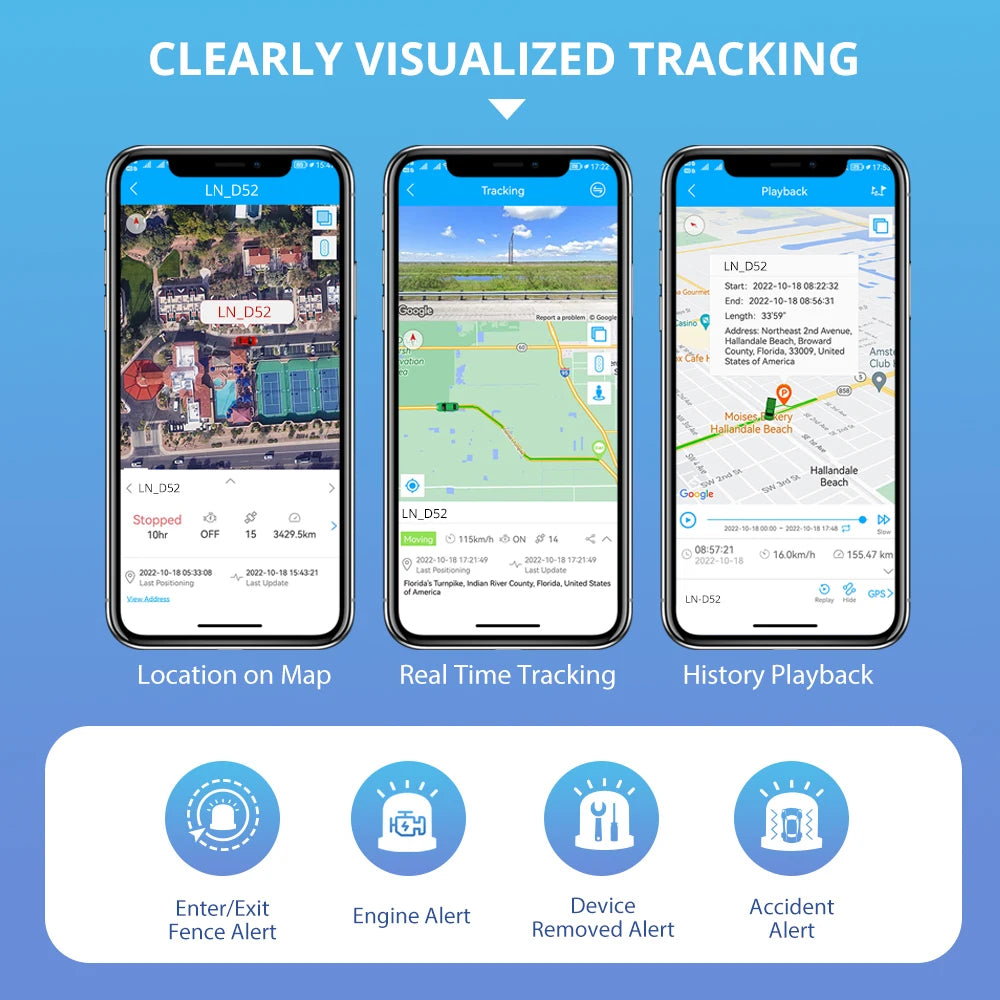

Real Time tracking check position on Google map by APP-Tracksolidpro or website.
