Description

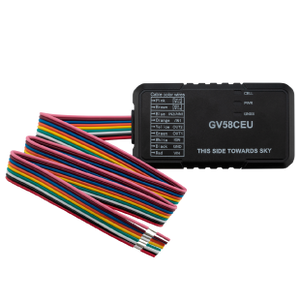

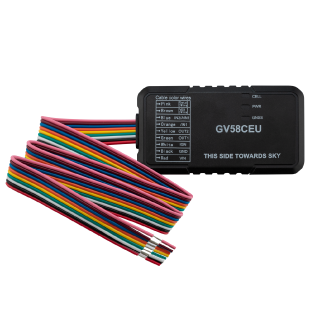

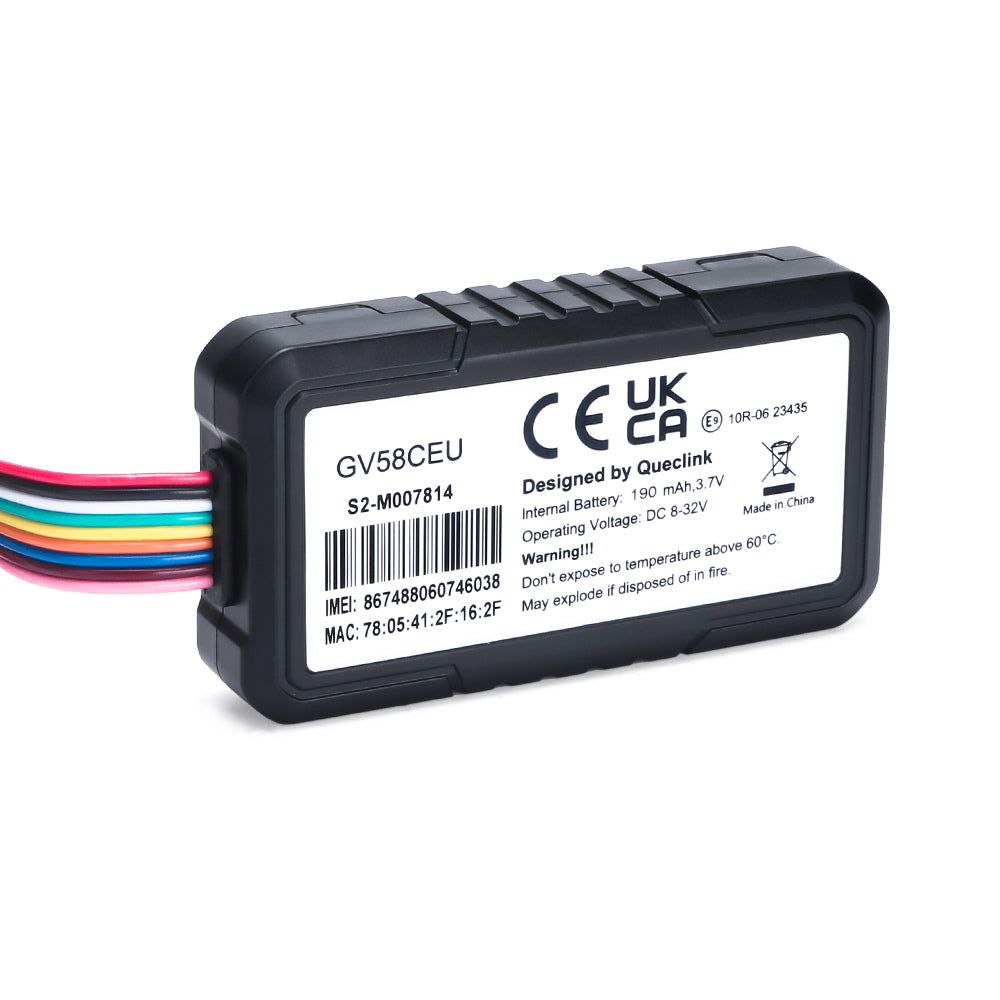

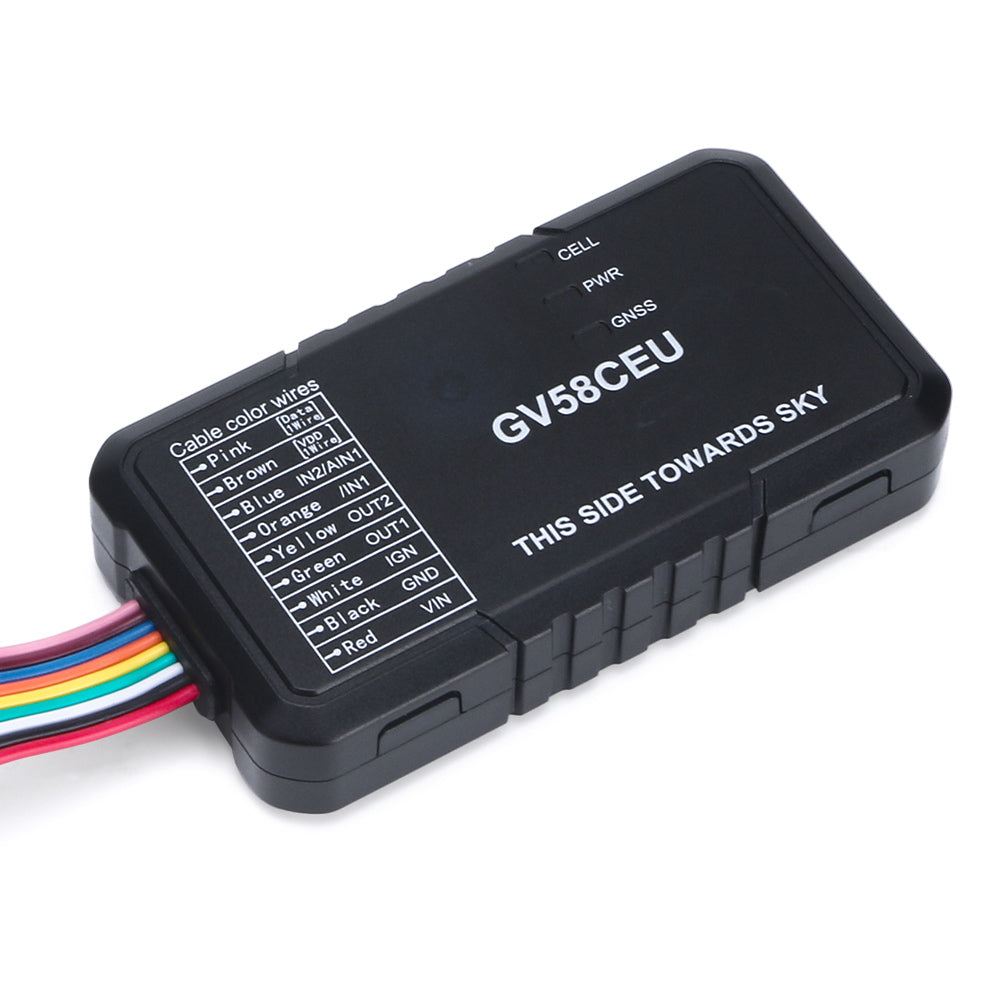

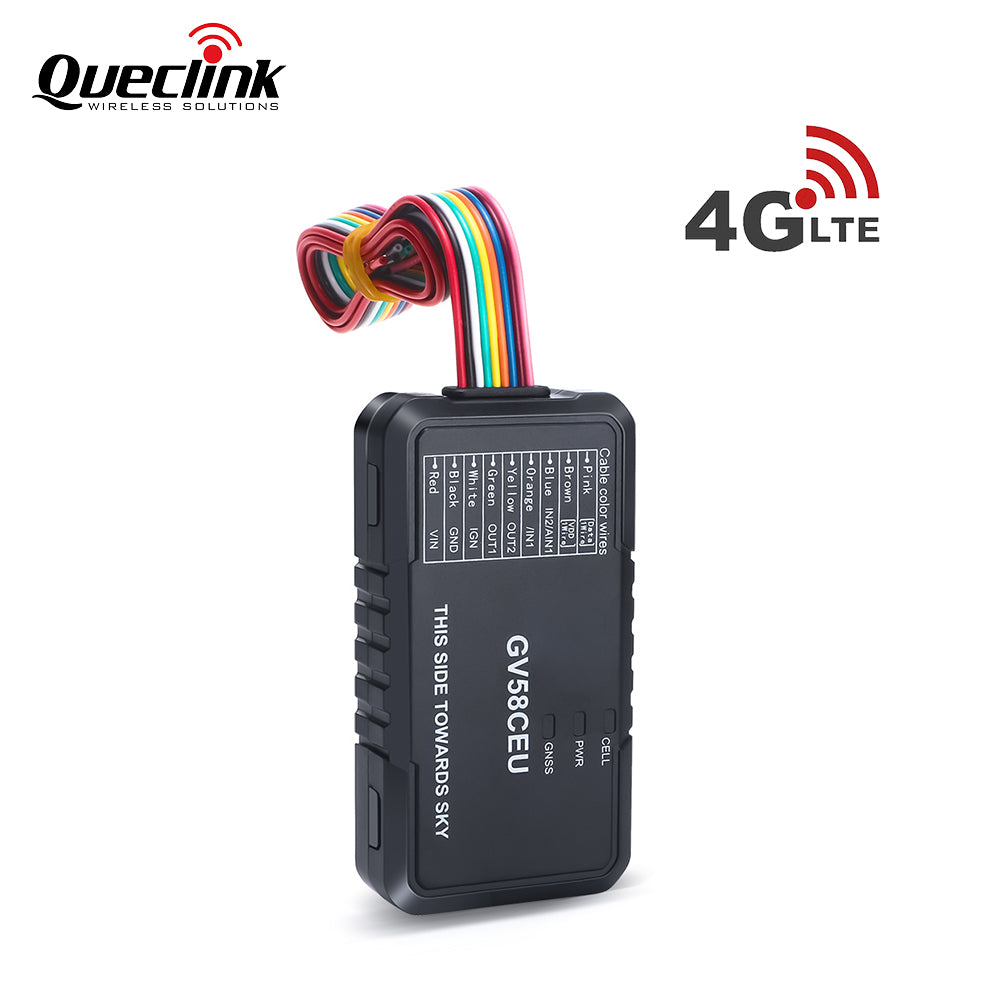

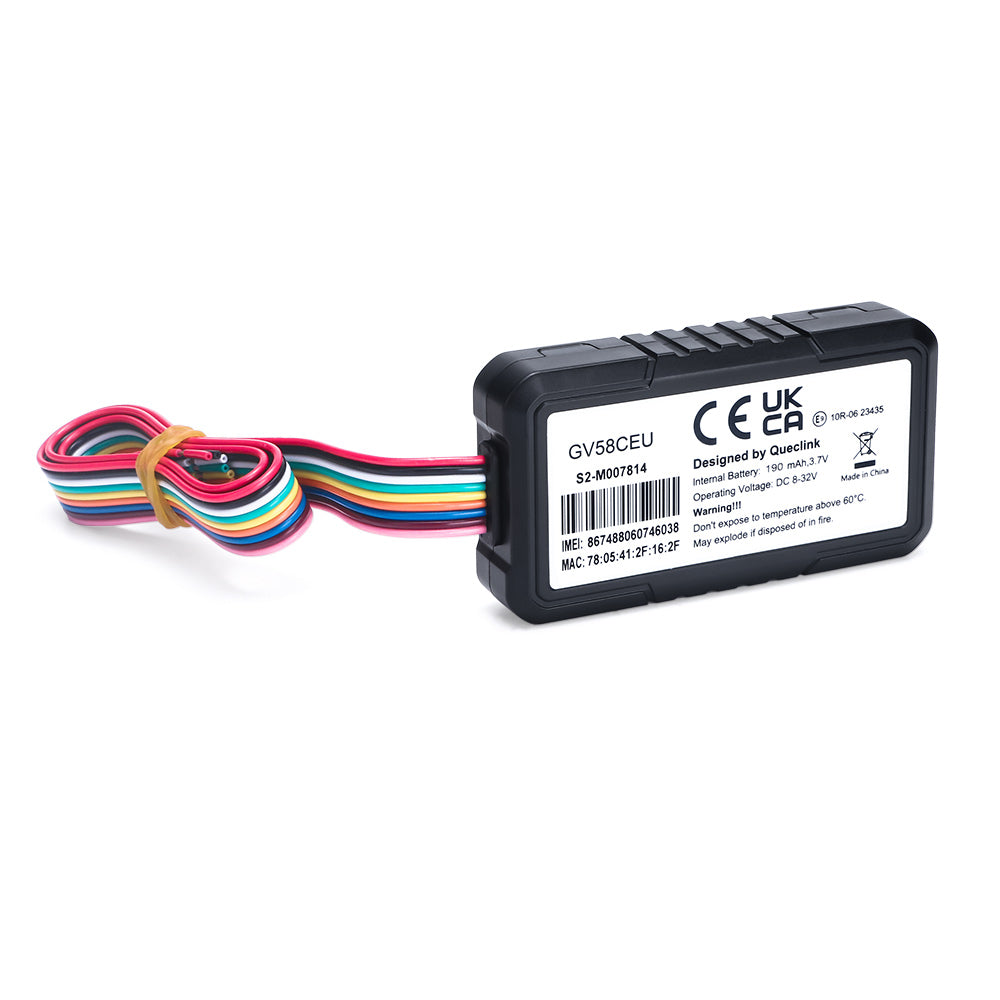

The GV58CEU is the most cost-effective LTE Cat1 telematics device ideal for variety of fleet management applications rangefrom general fleet tracking, car rental and leasing, stolen vehicle recovery, logistics and more. The GV58CEU optimizes theavailable /Os, allowing fuel cut-of, ignition detections, and a single analog sensor in addition to driver identification over1-wire or BLE. Supported accessories include a range of BLE-based temperature and humidity, fuel level as well as angle titmonitoring solutions offered either from Queclink or selected partners. Queclink GV58CEU Driver Behavior Monitoring Fleet Management Gps Tracking Device 4G LTE CAT1 Car Gps Tracker

Optional Accessories:

Queclink GV58CEU Driver Behavior Monitoring Fleet Management Gps Tracking Device 4G LTE CAT1 Car Gps Tracker

Characteristics

Operating Band LTE-FDD: B1/B3/B7/B8/B20/B28

Data Transmission LTE-FDD:(DL)10Mbps/(UL)5Mbps

Frequency 900/1800MHz

Data Transmission EDGE:(DL)236.8Kbps/(UL)236.8Kbps GPRS:(DL)85.6Kbps/(UL)85.6Kbps

GNSS Type u-blox All-in-one GNSS receiver

Constellation Support GPS,Glonass,Galileo,Beidou

Sensitivity Cold start: -148 dBm Hot start: -160 dBm Tracking: -167 dBm

Position Accuracy (CEP) Autonomous: < 2.0m

TTFF (Open Sky) Cold start: 24s average Hot start: 1s average

Dimensions 86.7(L) x 46.4(W) x 18.1(H)mm

Weight 80g

Backup Battery Li-Polymer, 190 mAh

Operating Voltage 8V to 32V DC

Operating Temperature -30℃ ~ +70℃ -40℃ ~ +80℃ for storage

BLE Support BLE 5.2 protocol

Digital Input 1 positive trigger input for ignition detection or other positive trigger detection 2 negative trigger input (1 configurable input for Analog input / Digital Input)

Digital Output 1 digital output, open drain, 150 mA max drive current

Latched Digital Output 1 digital output with internal latch circuit, open drain, 150 mA max drive current (Reserved)

Cellular Antenna Internal only

GNSS Antenna Internal only

BLE Antenna Internal only

LED Indicators CEL, GNSS, Power

Micro USB Interface Used for upgrade and debug

1-wire Interface 1 (Support 1-wire temperature sensor and iButton driver ID)

Transmit Protocol TCP, UDP, SMS

Scheduled Report Report position and status based on preset time intervals, distance, mileage or a combination of these settings

Geo-fences Geo-fence alarm, support up to 20 circular and 20 polygon geo-fence regions

Low Power Alarm Alarm when backup battery is low

Power On Report Report when the device is powered on

Tow Alarm Alarm for tow event in ignition-off state

Driving Behavior Monitoring Aggressive driving behavior detection, including harsh braking, acceleration, etc.

Crash Detection Accident data collection for reconstruction and analysis

Special Alarm Special alarm based on digital/analog inputs

Remote Control OTA control of digital outputs
