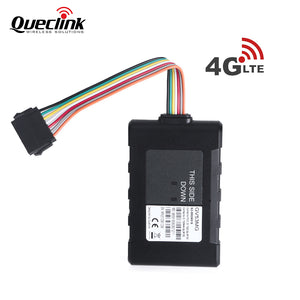

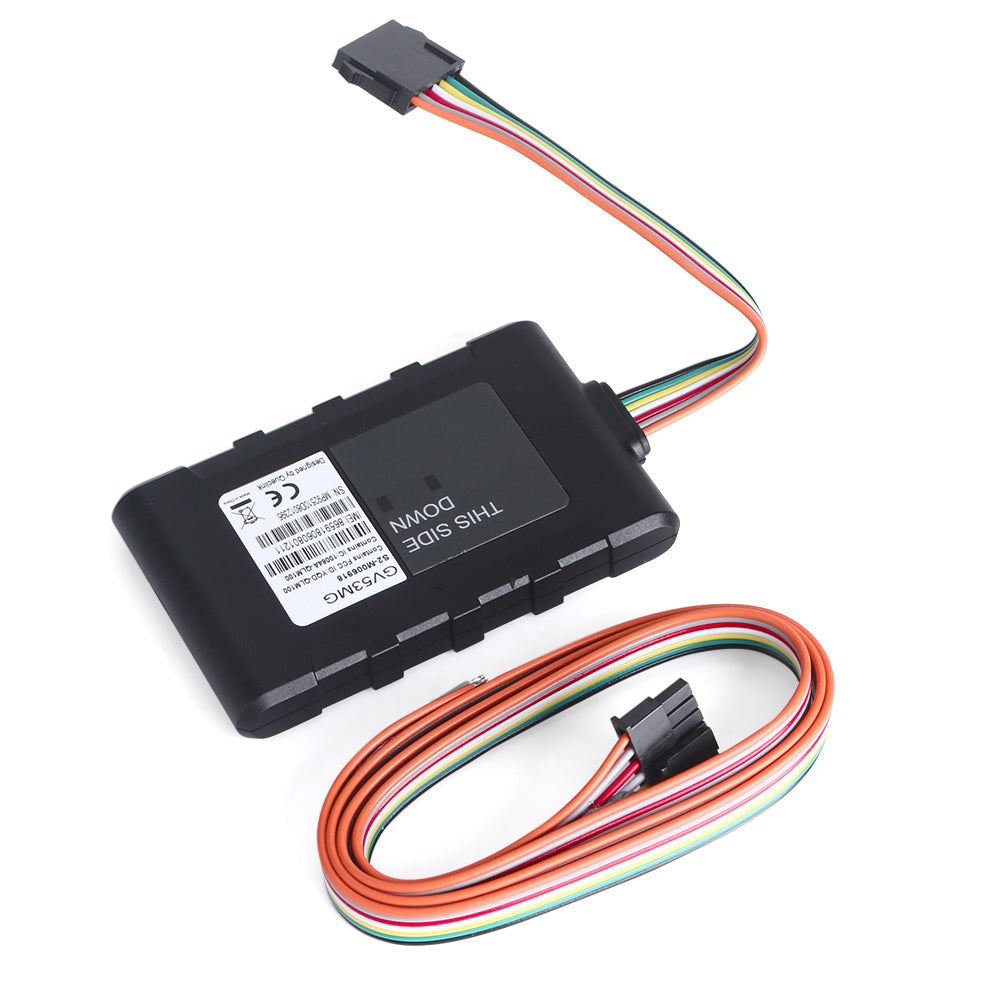

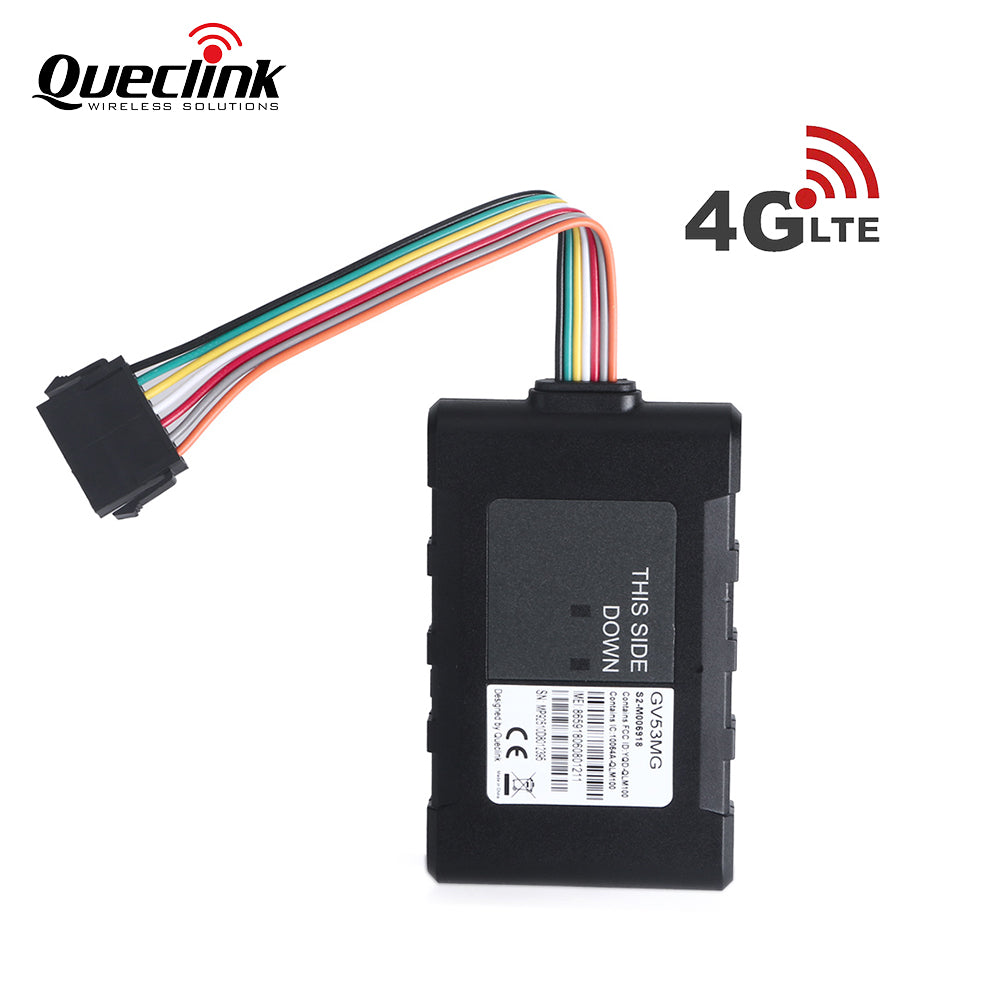

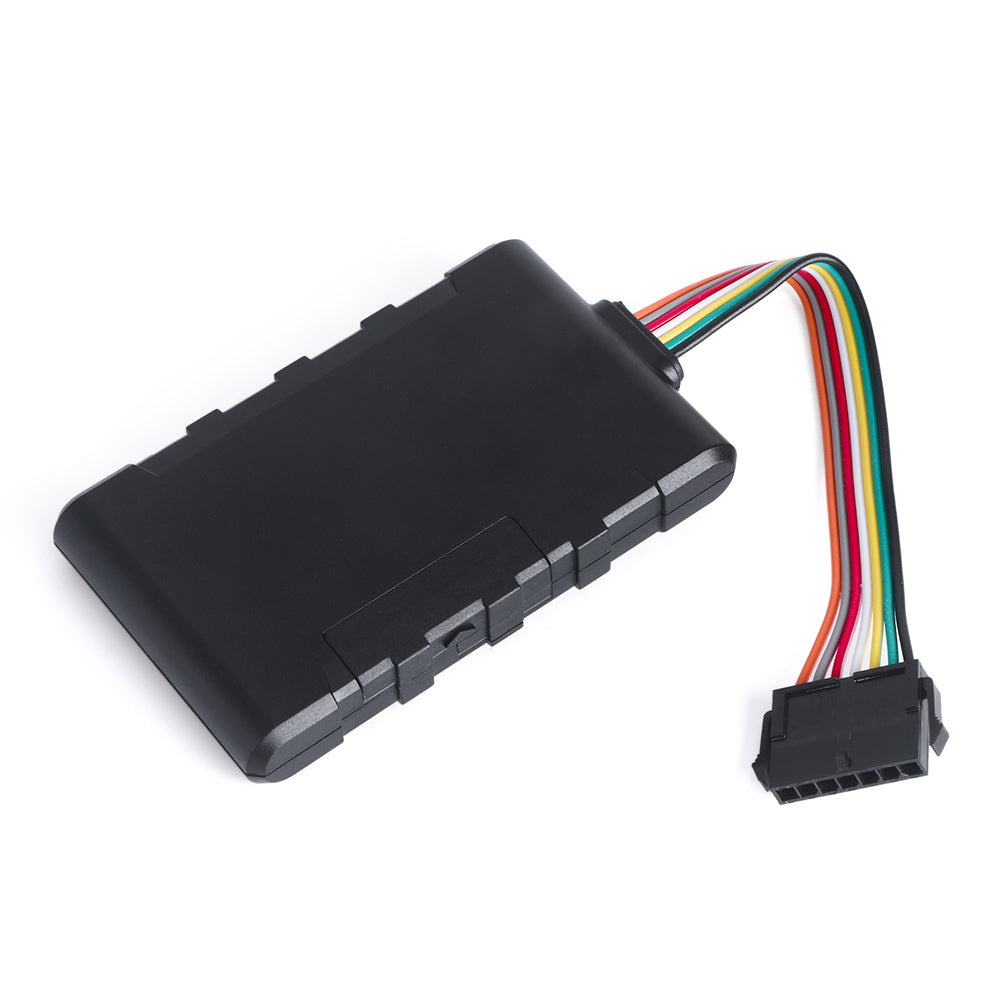

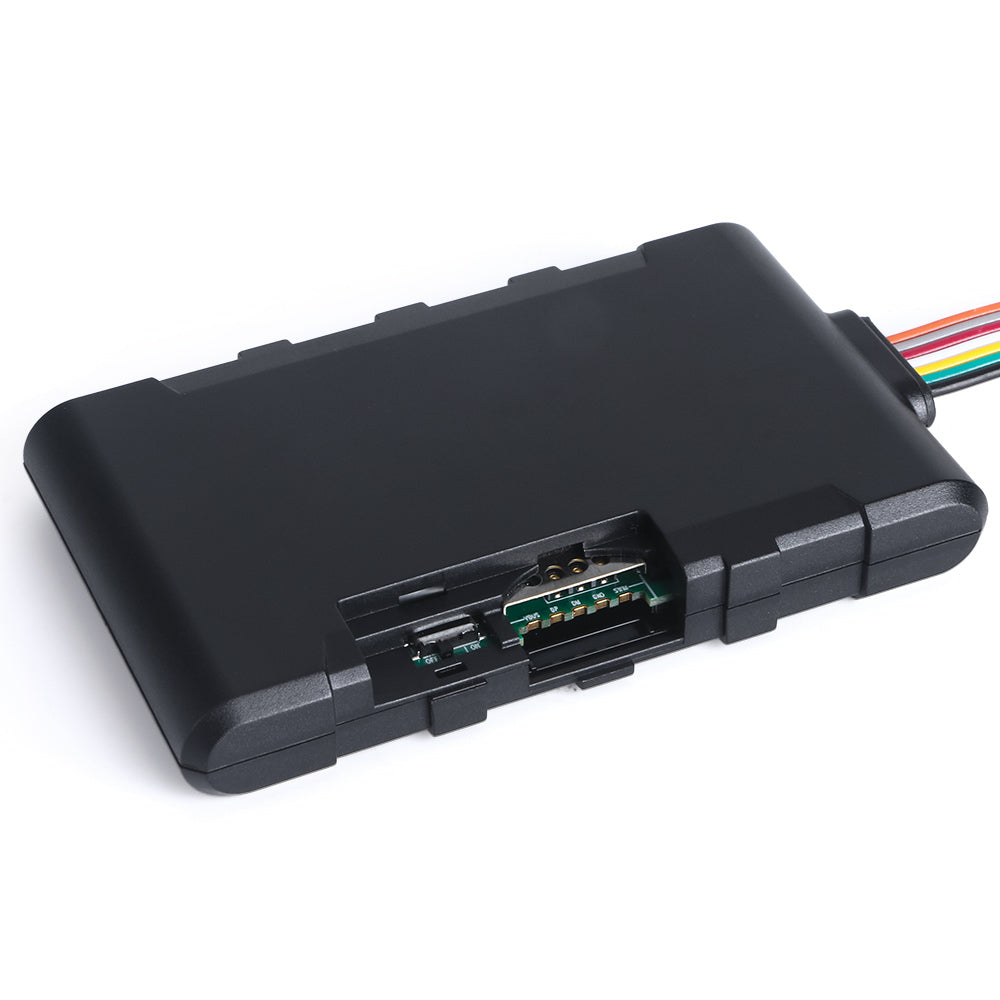

Queclink GV53MG Driving Behavior Monitoring Tracking System Remote Engine Cutting Off High Accuracy Car Gps Tracker 4G



Mian Features:

1. LTE Cat M1/NB2 with 2G Fallback
2. Covert Installation
3. OTA Control
4. Scheduled Report
5. Geo-fences
6. Crash Detection
7. Driving Behavior Monitoring
8. Tow Alarm
9. Power on Report
10. AES-256 Encryption
11. Up to 10,000 Buffer Messages

The GV53MG is the upgraded LTE Cat M1/NB2 version of GV50MG. It integrates the latest low-power wide area network standards and covers a broader area, making it more flexible to deploy. It is a compact, ultra-thin product allowing covert and easy installation. The product offers basic digital I/Os that can be used for ignition detection and vehicle control. An extra configurable I/O enables flexible applications.

The GV53MG supports AES-256 encryption to secure business-critical data, guard against unauthorized access and ensure data integrity.

The product is designed for various use cases such as auto financing, buy here pay here (BHPH), car rental and leasing, basic fleet management and stolen vehicle recovery



Queclink GV53MG Driving Behavior Monitoring Tracking System Remote Engine Cutting Off High Accuracy Car Gps Tracker 4GQueclink GV53MG Driving Behavior Monitoring Tracking System Remote Engine Cutting Off High Accuracy Car Gps Tracker 4G

Optional Accessories:

Queclink GV53MG Driving Behavior Monitoring Tracking System Remote Engine Cutting Off High Accuracy Car Gps Tracker 4GQueclink GV53MG Driving Behavior Monitoring Tracking System Remote Engine Cutting Off High Accuracy Car Gps Tracker 4GQueclink GV53MG Driving Behavior Monitoring Tracking System Remote Engine Cutting Off High Accuracy Car Gps Tracker 4G



Characteristics
Operating Band LTE Cat M1/NB2 Cat M1: LTE-FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B27 /B28/B66/B85 Cat NB2:(*Cat NB1 is available in Brazil) LTE-FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28 /B66/B71/B85
Data Transmission eMTC (DL) 348 Kbps eMTC (UL) 1.08 Mbps NB2 (DL) 121 Kbps NB2 (UL) 150 Kbps NB1 (DL) 74.1 Kbps NB1 (UL) 101 Kbps
Frequency EGPRS 850 / 900 / 1800 / 1900 MHz
Data Transmission EDGE 296 Kbps (DL) / 236.8 Kbps (UL) GPRS 107 Kbps (DL) / 85.6 Kbps (UL)
GNSS Type u-blox All-in-One GNSS receiver
Sensitivity Autonomous: -147 dBm Hot start: -156 dBm Reacquisition: -160 dBm Tracking: -162 dBm
Position Accuracy (CEP) Autonomous: < 2.5m
TTFF (Open Sky) Cold start: 27s average Warm start: 27s average Hot start: 1s average
Dimensions 87× 55 × 12.5mm 3.43”(L) × 2.17”(W) × 0.49”(H)
Weight 95g (3.35oz)
Backup Battery Li-Polymer, 190 mAh
Operating Voltage 8V to 32V DC
Operating Temperature -30℃~ +80℃ -40℃ ~ +80℃ for storage
Buffer Messages Up to 10,000 buffer messages
Digital Input 1 positive trigger input for ignition detection
Digital Output 1 digital output, open drain, 150 mA max drive current
Configurable Input/ Output 1 special I/O can be configured as a negative trigger digital input or an open drain output with 150 mA max drive current
Serial Port 1 TTL UART port for upgrading and debugging
Cellular Antenna Internal only
GNSS Antenna Internal only
LED Indicators CEL, GNSS
Transmit Protocol TCP, UDP, SMS
Scheduled Report Report position and status based on preset time intervals, distance, mileage or a combination of these settings
Geo-fences Geo-fence alarm, support up to 20 circular and 20 polygon geo-fence regions
Power On Report Report when the device is powered on
Tow Alarm Alarm for tow event in ignition-off state
Driving Behavior Monitoring Aggressive driving behavior detection, e.g. harsh braking and acceleration
Crash Detection Accident data collection for reconstruction and analysis
Special Alarm Special alarm based on digital inputs
Remote Control OTA control of digital outputs
Description

Queclink GV53MG Driving Behavior Monitoring Tracking System Remote Engine Cutting Off High Accuracy Car Gps Tracker 4G



Mian Features:

1. LTE Cat M1/NB2 with 2G Fallback
2. Covert Installation
3. OTA Control
4. Scheduled Report
5. Geo-fences
6. Crash Detection
7. Driving Behavior Monitoring
8. Tow Alarm
9. Power on Report
10. AES-256 Encryption
11. Up to 10,000 Buffer Messages

The GV53MG is the upgraded LTE Cat M1/NB2 version of GV50MG. It integrates the latest low-power wide area network standards and covers a broader area, making it more flexible to deploy. It is a compact, ultra-thin product allowing covert and easy installation. The product offers basic digital I/Os that can be used for ignition detection and vehicle control. An extra configurable I/O enables flexible applications.

The GV53MG supports AES-256 encryption to secure business-critical data, guard against unauthorized access and ensure data integrity.

The product is designed for various use cases such as auto financing, buy here pay here (BHPH), car rental and leasing, basic fleet management and stolen vehicle recovery



Queclink GV53MG Driving Behavior Monitoring Tracking System Remote Engine Cutting Off High Accuracy Car Gps Tracker 4GQueclink GV53MG Driving Behavior Monitoring Tracking System Remote Engine Cutting Off High Accuracy Car Gps Tracker 4G

Optional Accessories:

Queclink GV53MG Driving Behavior Monitoring Tracking System Remote Engine Cutting Off High Accuracy Car Gps Tracker 4GQueclink GV53MG Driving Behavior Monitoring Tracking System Remote Engine Cutting Off High Accuracy Car Gps Tracker 4GQueclink GV53MG Driving Behavior Monitoring Tracking System Remote Engine Cutting Off High Accuracy Car Gps Tracker 4G



Characteristics
Operating Band LTE Cat M1/NB2 Cat M1: LTE-FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B27 /B28/B66/B85 Cat NB2:(*Cat NB1 is available in Brazil) LTE-FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28 /B66/B71/B85
Data Transmission eMTC (DL) 348 Kbps eMTC (UL) 1.08 Mbps NB2 (DL) 121 Kbps NB2 (UL) 150 Kbps NB1 (DL) 74.1 Kbps NB1 (UL) 101 Kbps
Frequency EGPRS 850 / 900 / 1800 / 1900 MHz
Data Transmission EDGE 296 Kbps (DL) / 236.8 Kbps (UL) GPRS 107 Kbps (DL) / 85.6 Kbps (UL)
GNSS Type u-blox All-in-One GNSS receiver
Sensitivity Autonomous: -147 dBm Hot start: -156 dBm Reacquisition: -160 dBm Tracking: -162 dBm
Position Accuracy (CEP) Autonomous: < 2.5m
TTFF (Open Sky) Cold start: 27s average Warm start: 27s average Hot start: 1s average
Dimensions 87× 55 × 12.5mm 3.43”(L) × 2.17”(W) × 0.49”(H)
Weight 95g (3.35oz)
Backup Battery Li-Polymer, 190 mAh
Operating Voltage 8V to 32V DC
Operating Temperature -30℃~ +80℃ -40℃ ~ +80℃ for storage
Buffer Messages Up to 10,000 buffer messages
Digital Input 1 positive trigger input for ignition detection
Digital Output 1 digital output, open drain, 150 mA max drive current
Configurable Input/ Output 1 special I/O can be configured as a negative trigger digital input or an open drain output with 150 mA max drive current
Serial Port 1 TTL UART port for upgrading and debugging
Cellular Antenna Internal only
GNSS Antenna Internal only
LED Indicators CEL, GNSS
Transmit Protocol TCP, UDP, SMS
Scheduled Report Report position and status based on preset time intervals, distance, mileage or a combination of these settings
Geo-fences Geo-fence alarm, support up to 20 circular and 20 polygon geo-fence regions
Power On Report Report when the device is powered on
Tow Alarm Alarm for tow event in ignition-off state
Driving Behavior Monitoring Aggressive driving behavior detection, e.g. harsh braking and acceleration
Crash Detection Accident data collection for reconstruction and analysis
Special Alarm Special alarm based on digital inputs
Remote Control OTA control of digital outputs
