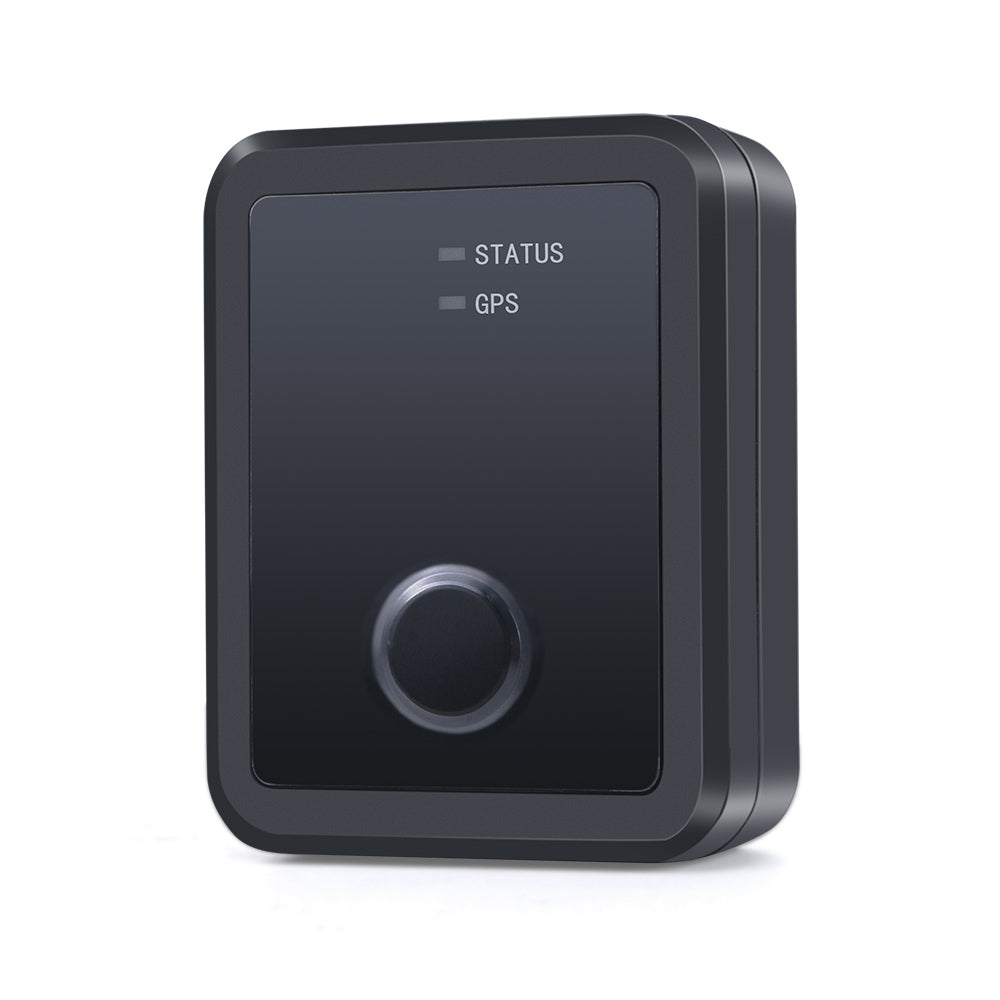

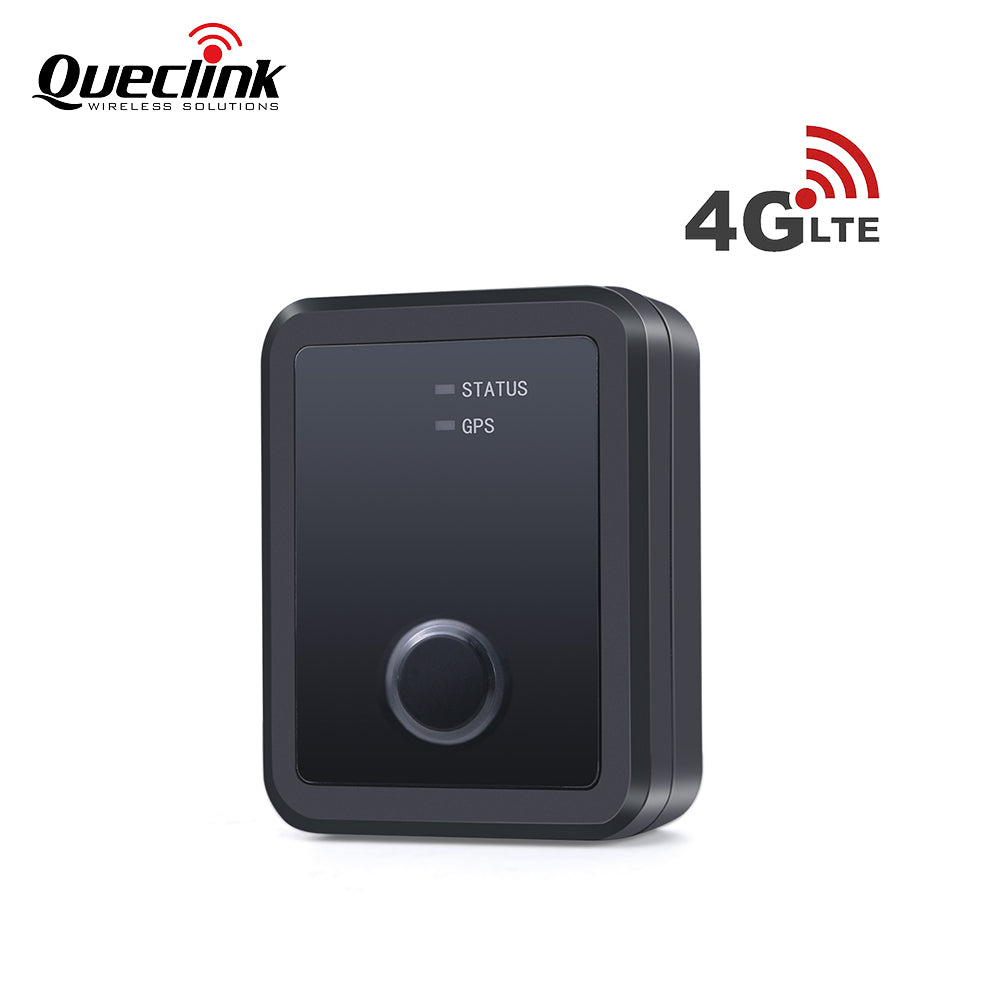

Queclink GL53MG BLE 5.1 4G LTE Cat M1/NB2 Accurate Car Asset Gps Tracking Device Long Distance Small Container Gps Tracker

Main Features:

4G LTE CAT M1/NB2 + 2G GSM/GPRS
Easy to installation.
Built-in 2400mAh Battery.
Built-in BLE 5.1
IP67 waterproof design.
Power Saving Mode.
Remotely OTA Control.

The GL53MG is the upgraded LTE Cat M1/NB2 version of GL50MG. It integrates the latest low-power wide area network standards and covers a broader area, making it more flexible to deploy. Adding a programmable button makes it ideal for applications requiring rapid emergency alert or checking status of device. Its built-in BLE allows connectivity to diverse wireless accessories. Micro-sized waterproof design allows it to be used in harsh environments. The GL53MG is an ideal product for SVR application requiring LTE technology. In addition, it is also used for a wide range of applications including auto financing, asset monitoring, car rental and leasing and more. Queclink GL53MG BLE 5.1 4G LTE Cat M1/NB2 Accurate Car Asset Gps Tracking Device Long Distance Small Container Gps Tracker Optional Accessories:

Characteristics

Operating Band LTE Cat M1/NB2 Cat M1: LTE-FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B27 /B28/B66/B85 Cat NB2:(*Cat NB1 is available in Brazil) LTE-FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28 /B66/B71/B85

Data Transmission eMTC (DL) 348 Kbps eMTC (UL) 1.08 Mbps NB2 (DL) 121 Kbps NB2 (UL) 150 Kbps NB1 (DL) 74.1 Kbps NB1 (UL) 101 Kbps

Frequency EGPRS 850 / 900 / 1800 / 1900 MHz

Data Transmission EDGE 296 Kbps (DL) / 236.8 Kbps (UL) GPRS 107 Kbps (DL) / 85.6 Kbps (UL)

GNSS Type u-blox All-in-One GNSS receiver

Sensitivity Autonomous: -147 dBm Hot start: -156 dBm Reacquisition: -160 dBm Tracking: -162 dBm

Position Accuracy (CEP) Autonomous: < 2.5m

TTFF (Open Sky) Cold start: 27s average Warm start: 27s average Hot start: 1s average

Dimensions 87× 55 × 12.5mm 3.43”(L) × 2.17”(W) × 0.49”(H)

Weight 95g (3.35oz)

Backup Battery Li-Polymer, 190 mAh

Operating Voltage 8V to 32V DC

Operating Temperature -30℃~ +80℃ -40℃ ~ +80℃ for storage

Buffer Messages Up to 10,000 buffer messages

Digital Input 1 positive trigger input for ignition detection

Digital Output 1 digital output, open drain, 150 mA max drive current

Configurable Input/ Output 1 special I/O can be configured as a negative trigger digital input or an open drain output with 150 mA max drive current

Serial Port 1 TTL UART port for upgrading and debugging

Cellular Antenna Internal only

GNSS Antenna Internal only

LED Indicators CEL, GNSS

Transmit Protocol TCP, UDP, SMS

Scheduled Report Report position and status based on preset time intervals, distance, mileage or a combination of these settings

Geo-fences Geo-fence alarm, support up to 20 circular and 20 polygon geo-fence regions

Power On Report Report when the device is powered on

Tow Alarm Alarm for tow event in ignition-off state

Driving Behavior Monitoring Aggressive driving behavior detection, e.g. harsh braking and acceleration

Crash Detection Accident data collection for reconstruction and analysis

Special Alarm Special alarm based on digital inputs

Remote Control OTA control of digital outputs
