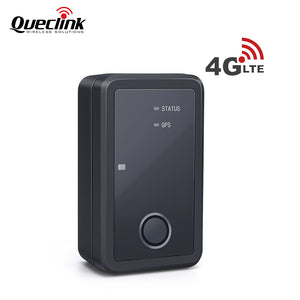

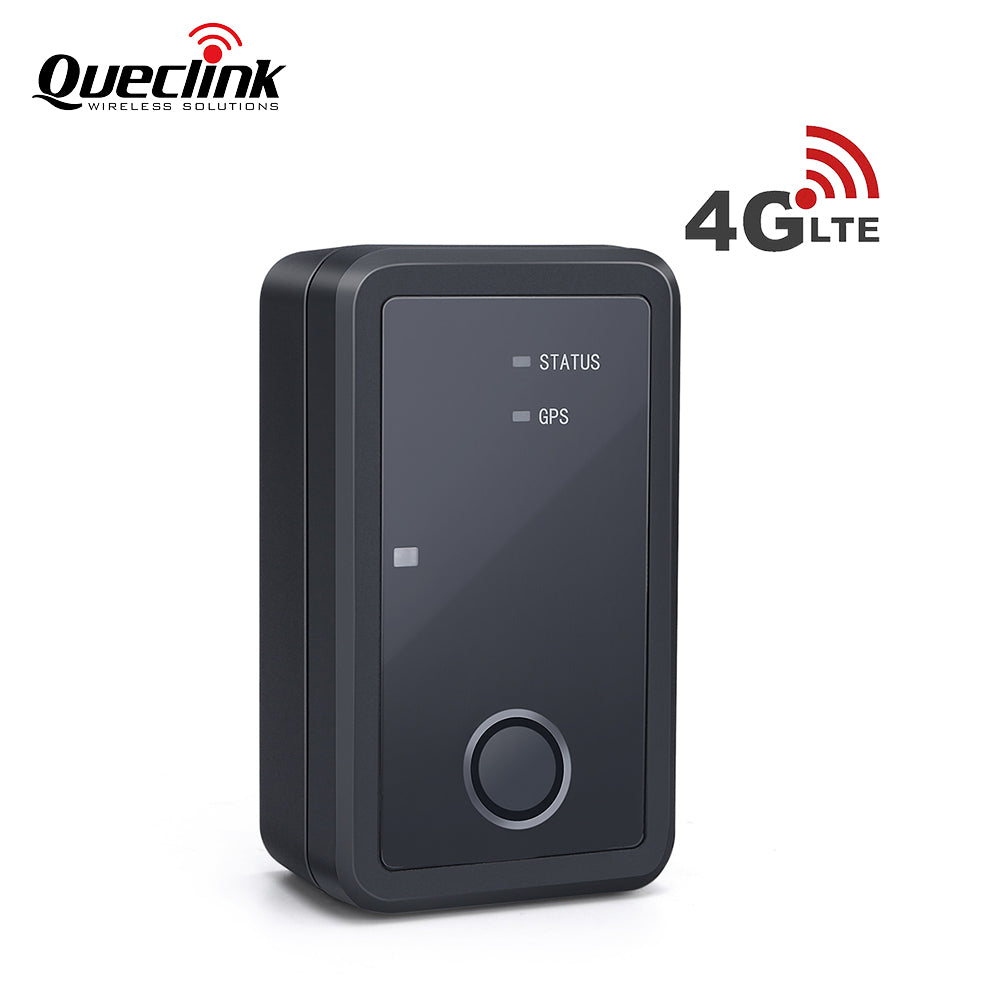

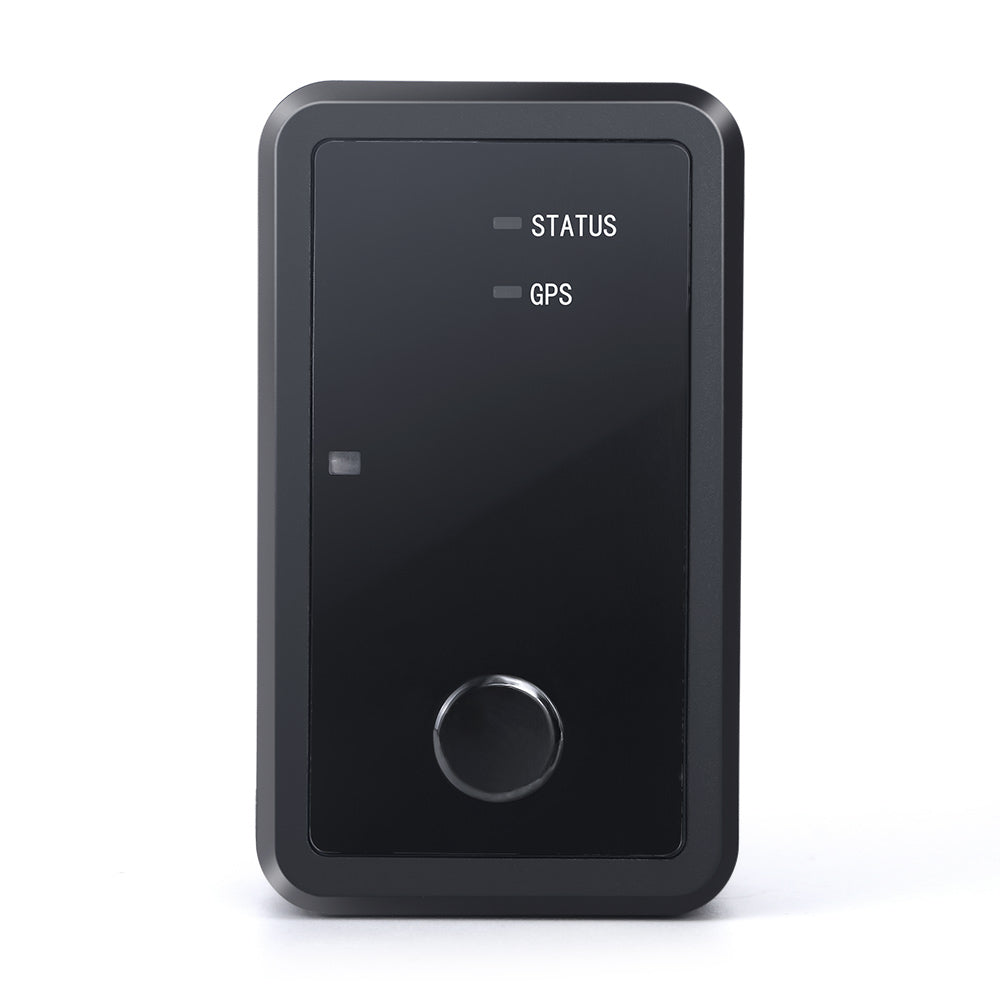

Queclink GL520MG Wireless 4G Cargo Location Device Professional Satellite Tracking System Gps Tracker Gps Tracking Device

Main Features:
1. 4G LTE CAT M1/NB2 + 2G GSM/GPRS
2. Easy to installation.
3. Built-in 1400mAh Battery.
4. Built-in light sensor.
5. Waterproof design.
6. Built-in temperature sensor.

GL520MG Basic Specification

Internal Battery	Li-Polymer 1400mAh	Dimension	87 x 51 x 30mm
Net weight	140g	Temperature	-20°C~ +60°C for operating
Network Operating Band	Cat M1: LTE-FDD: B1/B2/B3/B4/B5/B8/B12 /B13/B18/B19/B20/B25 /B26/B27/B28/B66/B85 Cat NB2: LTE-FDD: B1/B2/B3/B4/B5/B8/B12 /B13/B18/B19/B20/B25 /B28/B66/B71/B85 EGPRS: 850/900/1800/1900MHz	GNSS Type	u-blox All-in-one GNSS Receiver
Position Accuracy (CEP)	Autonomous: < 2.5m

Interface

Power Button	Used for power on/off and working status checking
LTE Antenna	Internal only
GNSS Antenna	Internal only
LED Indicators	GNSS, Status

Air Interface Protocol

Command Set	@Track protocol command
Transmit Protocol	TCP, UDP, SMS
Working Modes	Power saving mode for long standby time Continuous mode for emergency tracking
Scheduled Timing Report	Report position and status at preset time intervals
Geo-fences	Support up to 20 internal geo-fence regions
Low Power Alarm	Alarm when internal battery is low
Wakeup Report	Report when the device wakes up
Motion Detection	Motion detection based on intermnal 3-axis accelerometer
Reporting Frequency Adjustment	Intelligent adjustment of reporting frequency

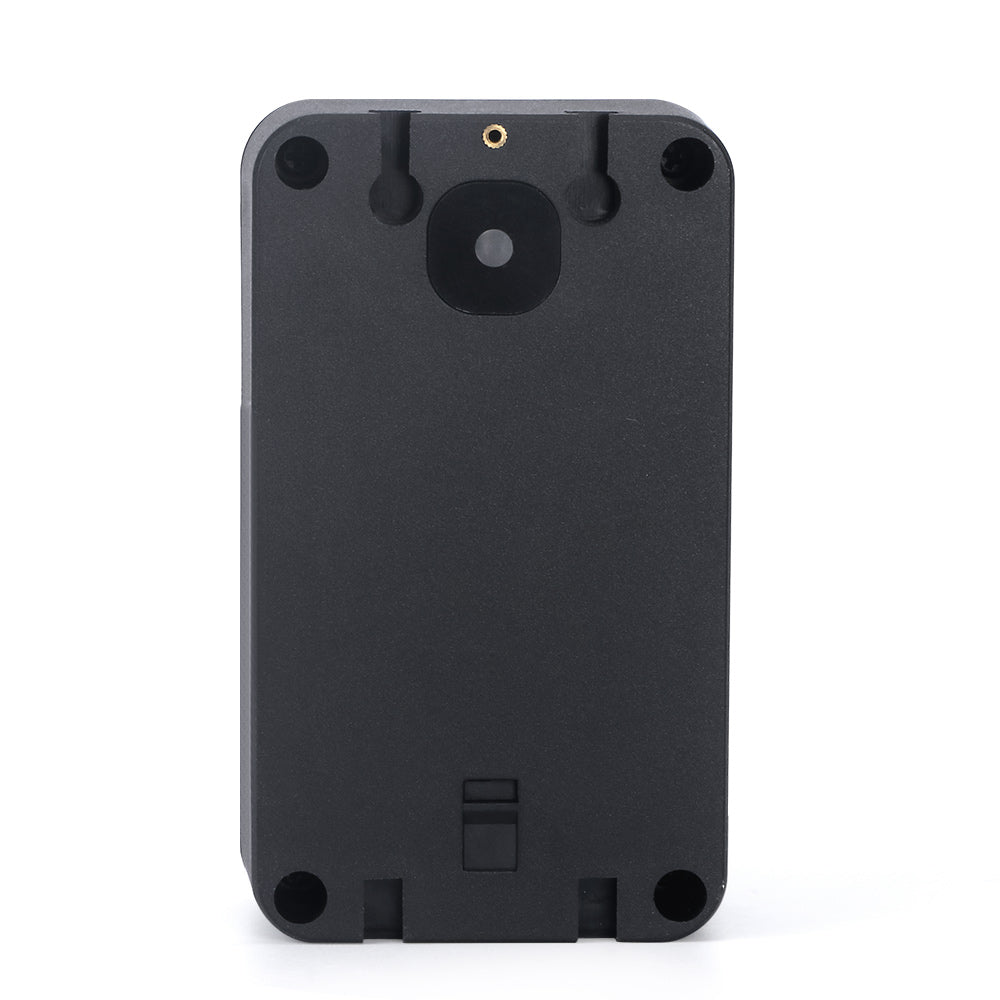

The GL520MC is an easy-to-deploy asset tracker bult on Queclink's innovative power management technology. lt lasts for up to seven years and features one of the longest battery lives among devices of its size n the market. The built-in light sensors make the product sensitive to tamper attempts and its waterproof design allows it to be used in harsh environments. With internal temperature and light sensors, the products ideal for a wide range of environmental monitoring applications such as cold chain logistics,warehouse management, cargo trucking, high-value static asset monitoring and more. The GL520MG supports several mounting alternatives which use unique clip on design to securely attach the device to any asset. Queclink GL520MG Wireless 4G Cargo Location Device Professional Satellite Tracking System Gps Tracker Gps Tracking Device Optional Accessories:

Characteristics

Type Mini, build-in

Placement PORTABLE

Track View PC, IOS APP, SMS Coordinate, Android APP

Warranty 1 Year

Place of Origin Guangdong, China

Battery Life (Hour) >96H

Brand Name golophy

Model Number Queclink GL520MG

Use Motorcycle, Other, Automotive, HAND HELD, cut off fuel, car, truck, fleet management

DIMENSION 87 x 51 x 30mm

Weight 140g

Network LTE CAT M1/NB2/EGPRS

GPS sensitivity -165dBm

Battery capacity 1400 mAh

GPS accuracy 2.5m

Operation Temp -20°C~+60°C

Humidity 5%--95% non-condensing
