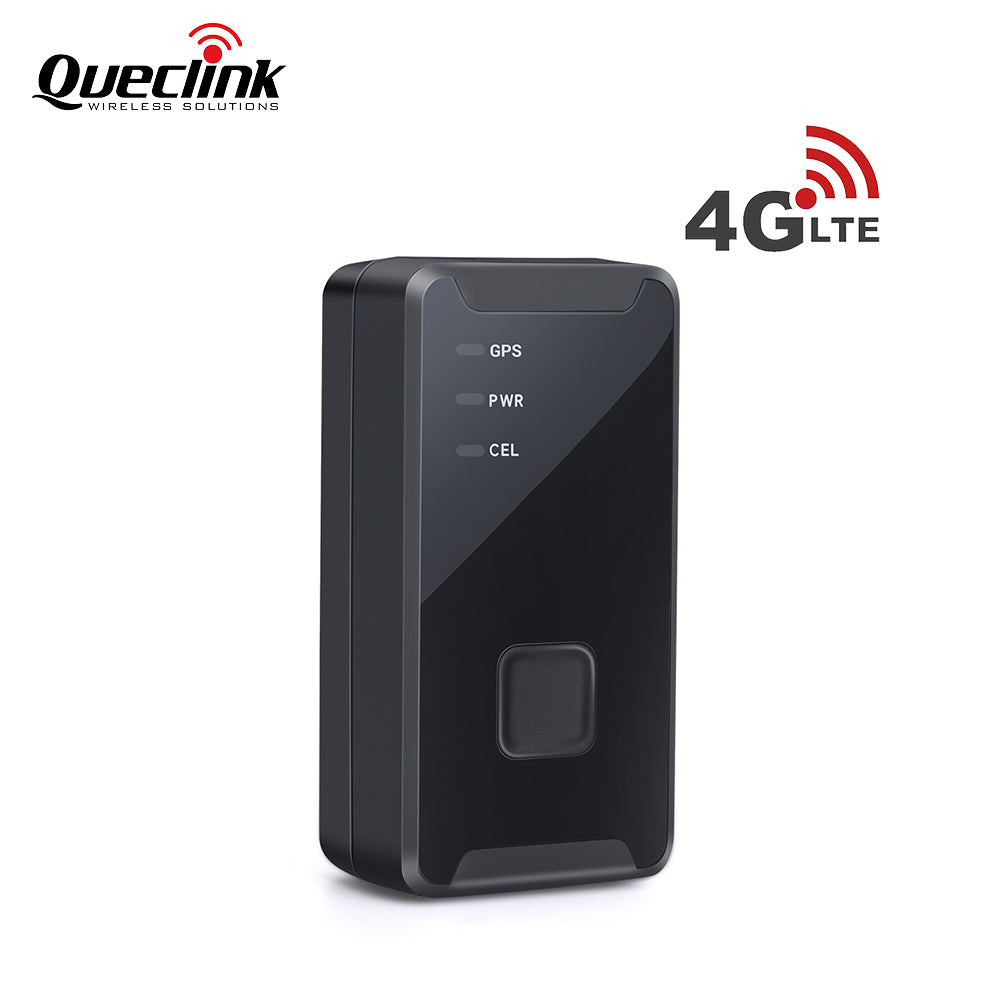

High Quality Queclink GL320MG IoT Gps Tracking Asset Personal Small Location Device Portable Locator Tracker Wireless Gps

1. 4G LTE + 2G GSM Network	It can be compatible with 2G and 4G networks at the same time, and is applicable to the world
2. Rapid Installation	It's very convenient. You don't need to install it
3. SOS Emergency Call	In case of emergency or accident, you can call the emergency number to ask for rescue
4. Waterproof	gps tracker has super water-resistant to ensure stable operation in tough environment it is not only effectively prevent dust from entering,but also don't worry about being splashed by water
5.OTA Control	After the device is connected to your mobile phone, you can remotely operate a series of commands through the mobile to maintain your vehicle, without operating beside or in the vehicle
6.Realtime Tracking	You can realtime track your target on google maos via mobilephone,tablet and computer and the minumum upload interval is 10 seconds
7.Geo-fence	You can set up a geofence for the tracker to restrict its movements within a district the unit will send sms to the authorized numbers when it goes in and leave out of this distric
8.Vibration Alarm	If someone ram your car after the device entered into arm status ,the locator will send the alarm information to your phone
9.Low Power Alarm	When the power of the locator is lower than 10%, it will remind you to charge or replace the battery in time
10.Power On/Off Report	11.Use With Animal Collars
12.Up to 10000 Buffer Messages	13.Built In 2600 mAh Li-ion Battery Standby Up 480 Hours

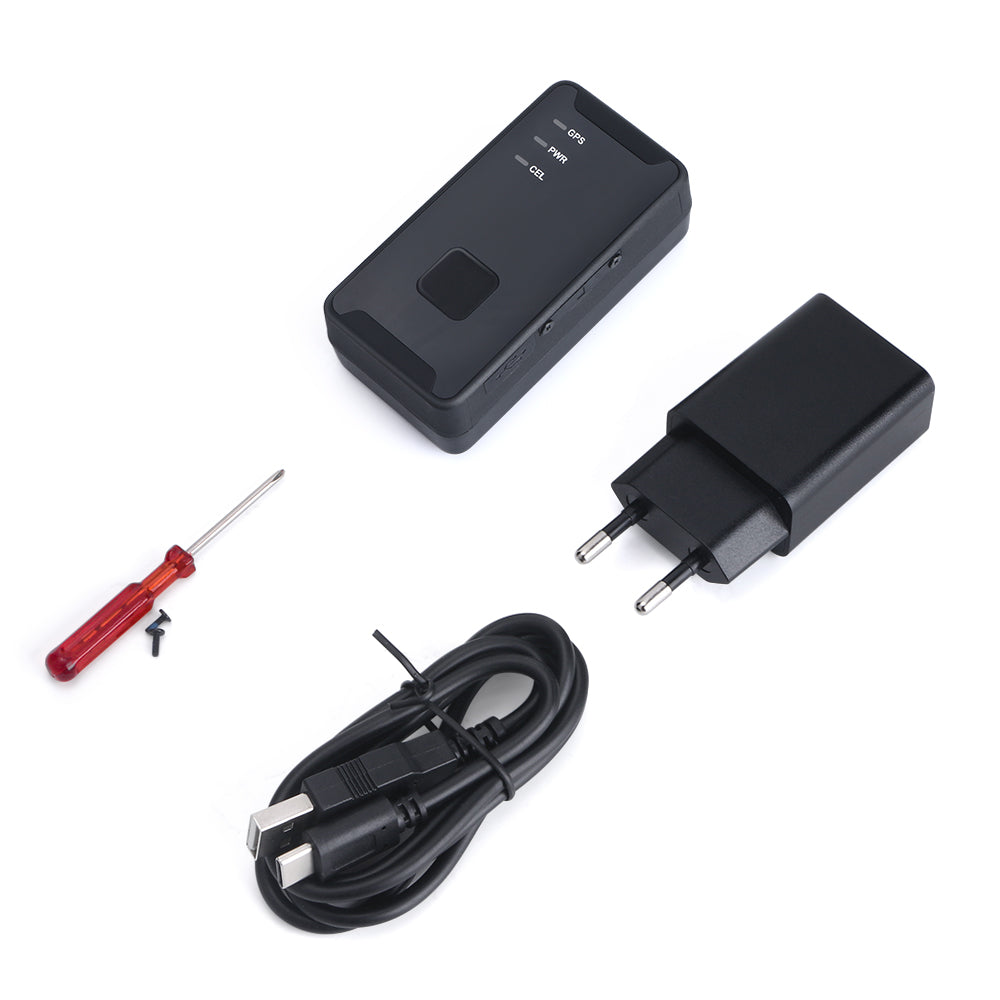

Optional Accessories

Characteristics

Operating Band Cat M1: LTE-FDD:B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/ B27/B28/B66/B85 Cat NB2:(*Cat NB1 is available in Brazil) LTE-FDD:B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/ B66/B71/B85

Data Transmission eMTC (DL) 588 Kbps eMTC (UL) 1119 Kbps NB2 (DL) 127 Kbps NB2 (UL) 158.5 Kbps NB1 (DL) 32 Kbps NB1 (UL) 70 Kbps

Frequency 850 / 900 / 1800 / 1900 MHz

Data Transmission GPRS: (DL)107Kbps, (UL)85.6Kbps; EDGE: (DL)296Kbps, (UL)236.8Kbps

GNSS Type u-blox All-in-One GNSS receiver

Sensitivity Autonomous: -147 dBm Hot start: -156 dBm Reacquisition: -160 dBm Tracking: -162 dBm

Position Accuracy (CEP) Autonomous: < 2.5m

TTFF (Open Sky) Cold start: 27s average Warm start: 27s average Hot start: 1s average

Dimensions 3.07’’(L) × 1.57’’(W) × 1.05’’(H) 77.9 × 39.9 × 26.7mm

Weight 93g (3.28oz)

Backup Battery Li-Polymer, 2600 mAh

Standby Time Without Reporting: 480 Hours; 5 Min Reporting: 260 Hours ;10 Min Reporting: 300 Hours

Water Resistance IPX5 Compliant

Charging Voltage 5V DC

External Battery Voltage 3.7V to 4.2V DC

Operating Temperature -20℃ ~ +60℃

Digital Inputs 1 positive trigger input for ignition detection; 1 negative trigger input for normal use

Power Button Power on and power off, can be disabled via air interface protocol

Function Button with Vibration Feedback Emergency alert or instant geo-fence setting

Cellular Antenna Internal only

GNSS Antenna Internal only

LED Indicators CEL, GNSS, PWR

USB Type-C Interface Used for external power and configuration

Transmit Protocol TCP, UDP, SMS

Scheduled Report Report position and status based on preset time intervals, distance, mileage or a combination of these settings

Geo-fences Support up to 20 geo-fence regions

Low Power Alarm Alarm when battery is low

Power On/Off Report Report when the device is powered on and off

SOS/Emergency Alarm SOS alarm via pressing function button

Special Alarm Special alarm based on digital inputs

Motion Detection Motion alarm based on internal 3-axis accelerometer
