Description

Main Features:
1. Water Resistant IPX5
2. Multiple GNSS Support With u-blox M8 Chipset
3. Vibration Feedback Confirming Successful Button Operation
4. Thumb sized button allowing easier emergency alert or instant geo-fence setting
5. Full Power Management
6. Internal WCDMA/GPS Antennas
7. Triple band frequencies UMTS/HSDPA 850 (Band V)/1900 (Band II)/2100 (Band I) MHz and quad band GSM/GPRS 850/900/1800/1900 MHz

8.Low Battery Alarm

GL300W manage tool is PC software which can be used to configure GL300W through UART. It is easy for the backend server developers to configure GL300W with manage tool, which has friendly user interface. The correct command messages sent to GL300W will be displayed on the manage tool.(These messages also can be sent by SMS or UMTS).

The administrators can also use the manage tool to configure GL300W before selling. But it is strongly recommended to establish a backend server and implement the way to control GL300W by SMS or UMTS.Please refer to "GL300W @Track Air Interface Protocol" for detail.

Before using the manage tools please find "Queclink_WCDMA_USBDriver_V1.00" in develop suit and install the driver. After that a
new COM port can be found in the PC system, and then please follow the steps as below:

1. Power on GL300W
2. Connect GL300W to PC with USB data cable or DATA CABLE_M.
3. Run "Queclink GL300W_Manage_Tool_Vx.xx.exe"

System Requirements

1. In order for this manage tool to run on your computer, you must use it in below operating system:

* Windows 98SE;
* Windows ME Windows 2000 SP4;
* Windows XP SP2 and above (32 & 64 bit);
* Windows Server 2003 (32 & 64 bit);
* Windows Server 2008 (32 & 64 bit);
* Windows Vista (32 & 64 bit);
* Windows 7 (32 & 64 bit);
* Windows 8 (32 & 64 bit);

2. Supported System Environments: Microsoft.NET Framework 2.0 or higher

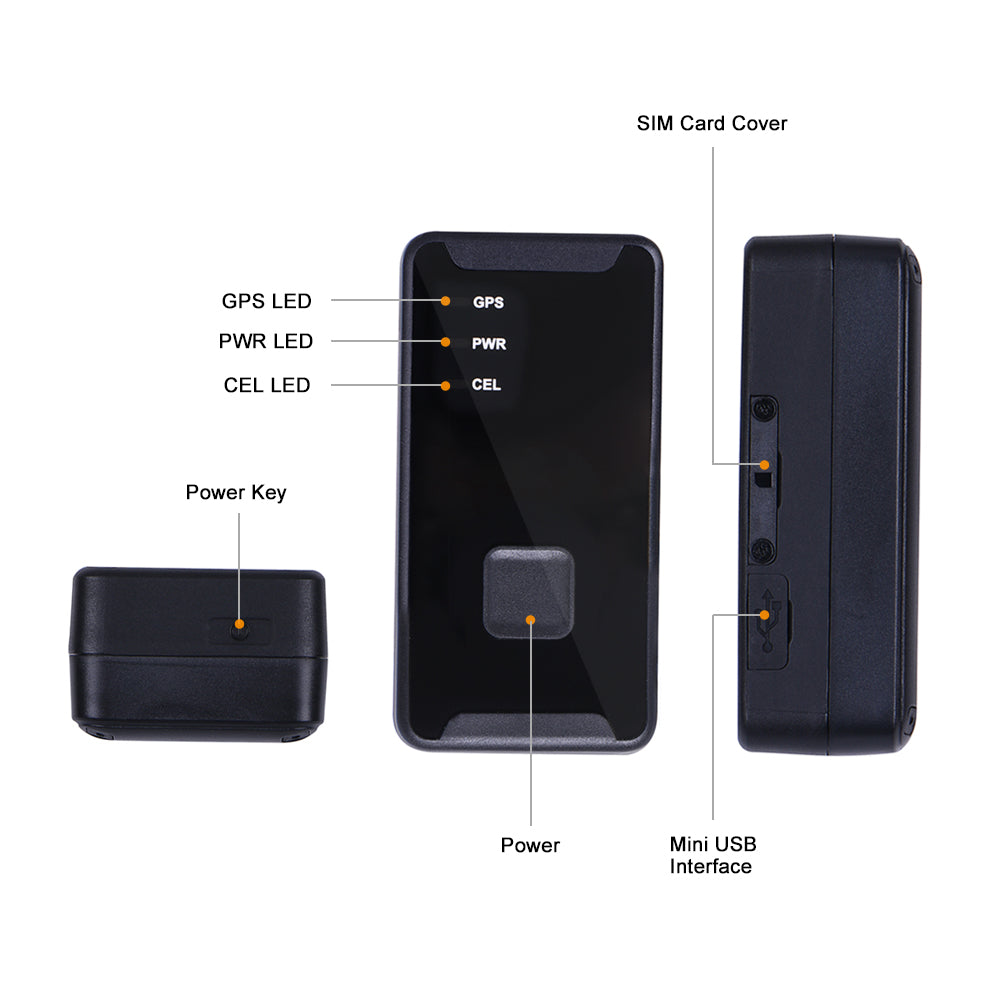

1. The use of the Function Key:
* Geo-fence mode: Long press the key to enable/disable Geo-fence ID0
* Geo-fence in current position mode: Long press the key to enable/disable Geo-fence ID0. If enable Geo-fence ID0, using the current position as the centre of Geo-fence 0.
* SOS mode: This is the default mode, long press the key to active SOS alarm.

2. The use of the Mini USB interface:
* Connect a 5V DC adapter can power GL300W and charge the internal battery
* Connect a 3.7V Li-ion or Li-Polymer battery can power GL300W
* Backend server developer or administrator can use the Data_Cable_M to configure GL300W

Characteristics

Operating Band UMTS: 850 / 1900 / 2100 MHz GSM/GPRS: 850 / 900 / 1800 / 1900 MHz

Data Transmission GPRS multi-slot class 12

Transmitting Power Class 4 (33±2 dBm) for GSM 850 and EGSM 900; Class 1 (30±2 dBm) for DCS 1800 and PCS 1900; Class 3 (24+1/-3 dBm) for UMTS 850 / 1900 / 2100

GNSS Type u-blox All-in-One GPS receiver

Sensitivity Autonomous: -147 dBm Hot start: -156 dBm Reacquisition: -160 dBm Tracking: -162 dBm

Position Accuracy (CEP) Autonomous:< 2.5m

TTFF (Open Sky) Cold start: 27s average Warm start: 27s average Hot start: 1s average

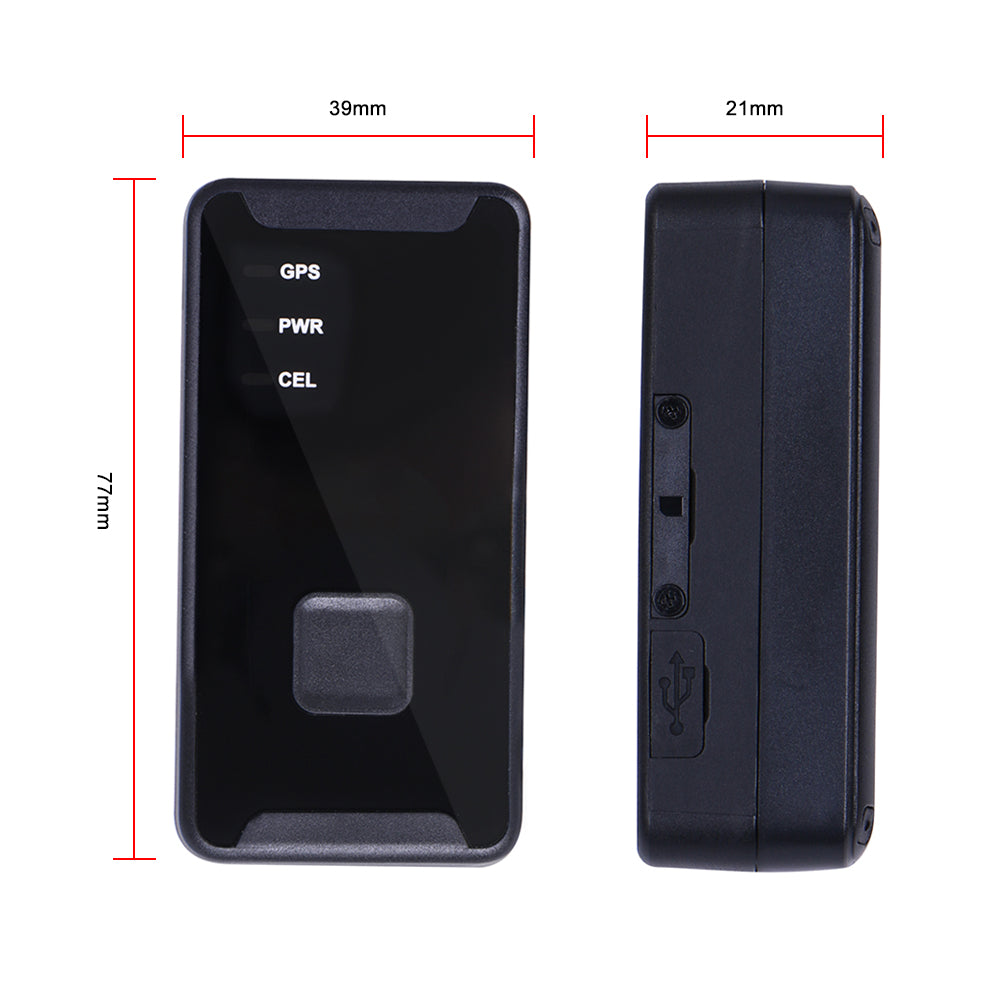

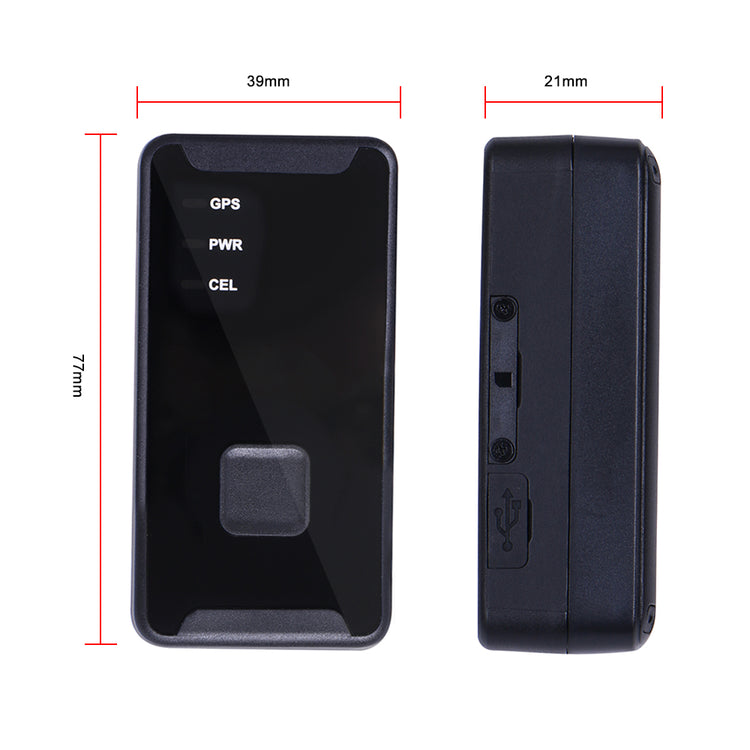

Dimensions 77.9 × 39.9 × 26.7mm 3.07”(L) × 1.57”(W) × 1.05”(H)

Weight 93g (3.28oz)

Internal Battery Li-Polymer, 2600 mAh

Standby Time Without reporting: 670 hours 5 minutes’ reporting: 320 hours 10 minutes’ reporting: 410 hours

Water Resistance IPX5 Compliant

Charging Voltage 5V DC

External Battery Voltage 3.5V to 4.2V DC

Operating Temperature -20℃ ~ +55℃

Digital Inputs 1 positive trigger input for ignition detection 1 negative trigger input for normal use

Power Button Power on and power off, can be disabled by the air interface protocol

Function Button with Vibration Feedback Emergency alert or instant geo-fence setting

Cellular Antenna Internal only

GPS Antenna Internal only

LED Indicators CEL, GPS, PWR

Mini USB Interface Used for external power and configuration

Transmit Protocol TCP, UDP, SMS

Scheduled Report Report position and status based on preset time intervals, distance, mileage or a combination of these settings

Geo-fences Support up to 20 internal geo-fence regions

Power On/Off Report Report when the device is powered on and off

Low Power Alarm Alarm when battery is low

SOS/Emergency Alarm SOS alarm via pressing function button

Special Alarm Special alarm based on digital inputs

Motion Detection Motion alarm based on internal 3-axis accelerometer
