IP67 Waterproof Queclink GB130MG Anti Jammer Data Logger Accurate Vehicle Real Time Gps Tracking Device Gps Tracker For Car 4G

Mian Features:

1. LTE Cat M1/NB2 with 2G Fallback
2. Self-Fit Installation
3. IP67 Waterproof
4. Virtual Ignition Detection
5. 1Hz GNSS sampling
6. 400Hz 6-Axis Accelerometer
7. Accelerometer Self-calibration
8. Driving Behavior Monitoring
9. Crash Detection & Data Packet
10. Scheduled Report Geo-fences
11. Jamming Detection
12. Tow Alarm
13. OTA Control
14. Up to 10,000 Buffer Messages
15. Built-in BLE 5.2

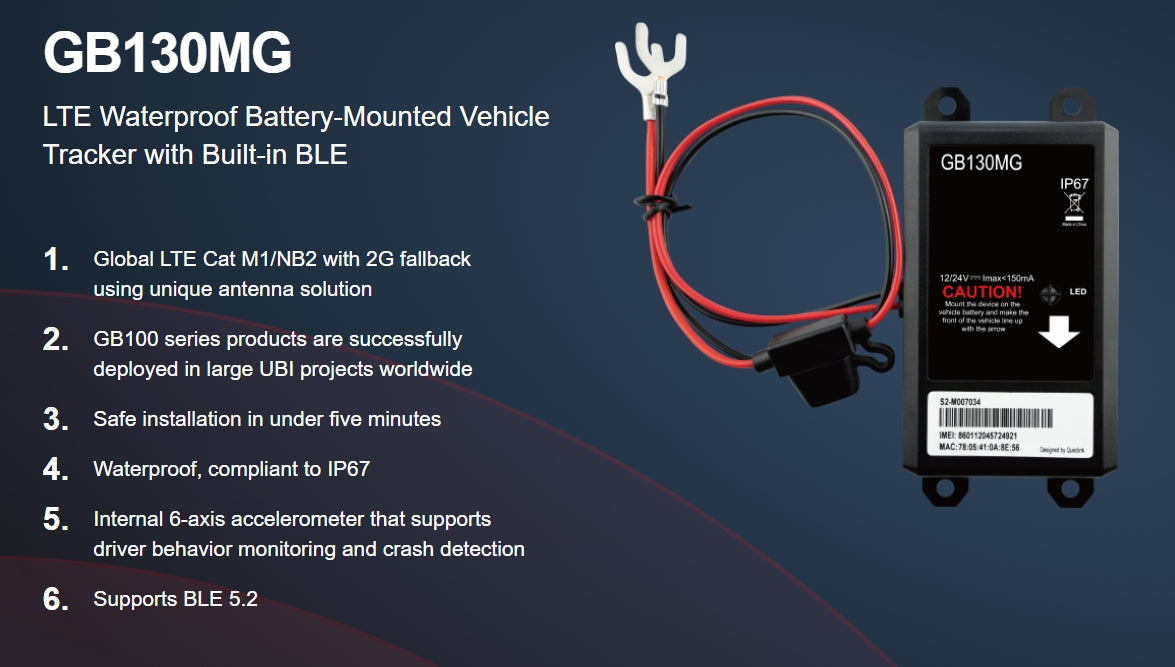

The GB130MG is the LTE version of our proven usage-based insurance telematics product GB100P. Its built-in 6-axis accelerometer allows accurate accident data sampled at up to 400 times per second. With built-in BLE it supports wireless accessories; thus allowing the product to be flexible and suitable for applications beyond insurance data acquisition.

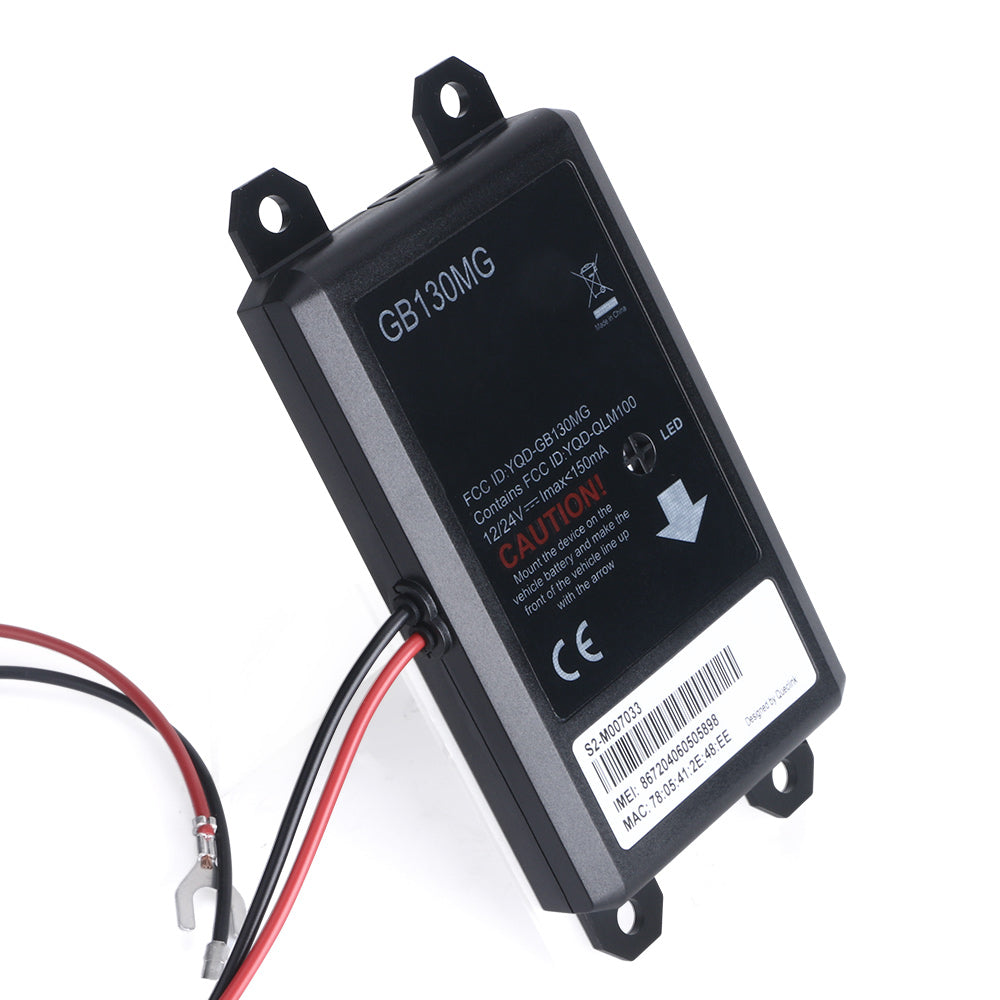

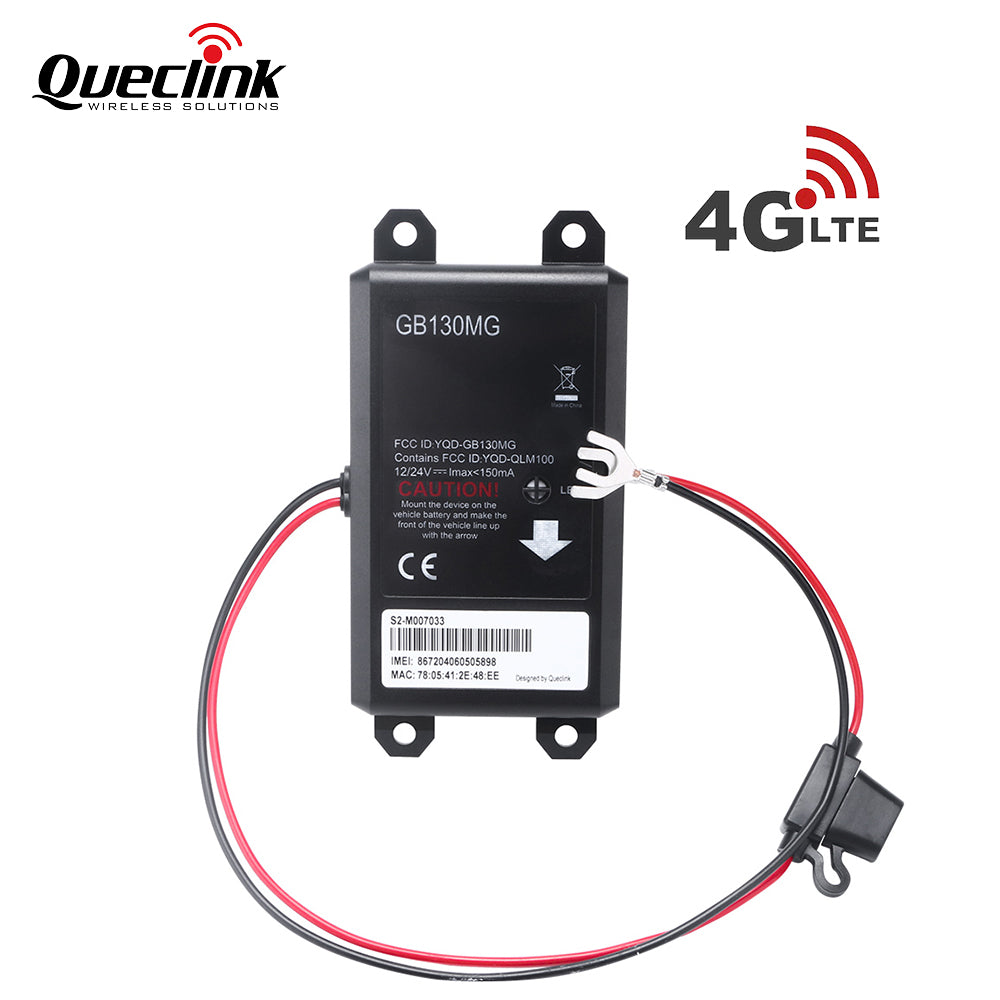

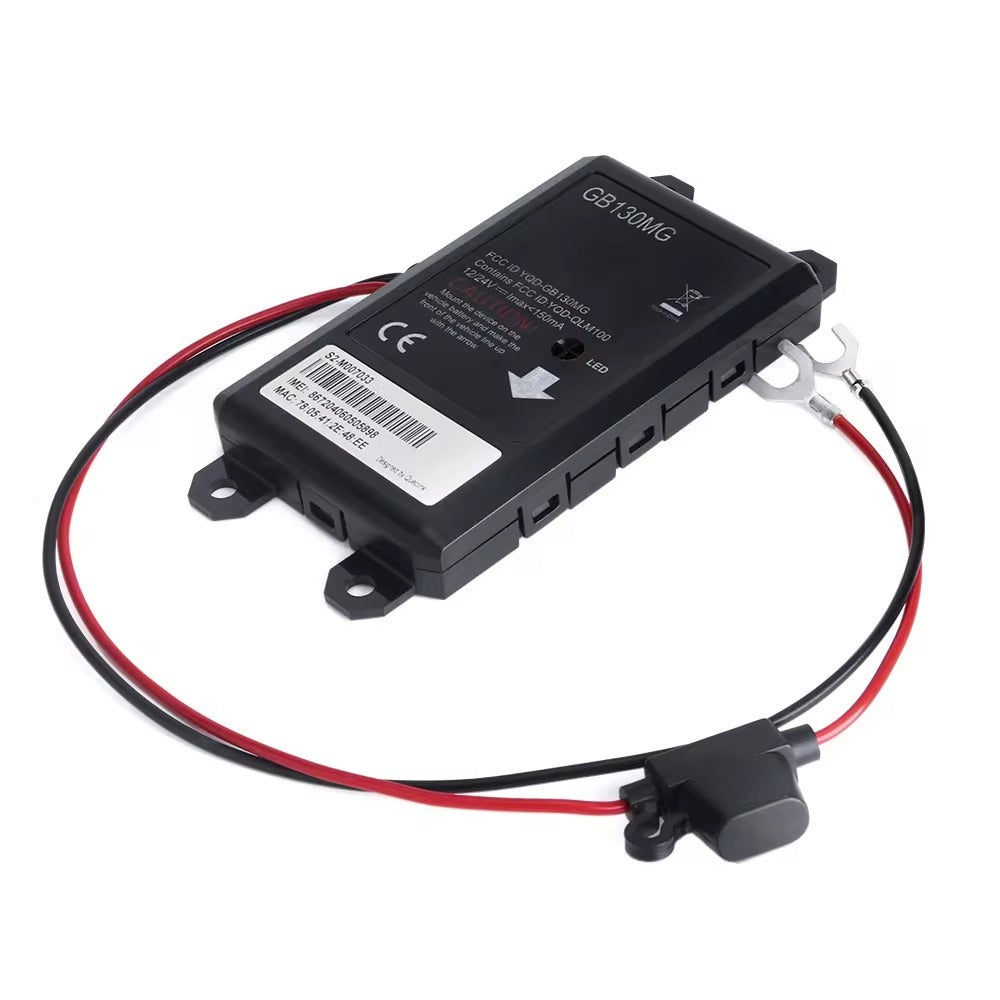

The GB130MG is a vehicle battery mounted product specifically designed to lower the installation costs of telematics products in the usage-based insurance market. Its internal battery and waterproof enclosure maintain stable and reliable performance when installed in the engine compartment of vehicles. The GB100 series is proven to provide accurate and reliable data under the metal hood of a vehicle engine and has been used successfully in the delivery of several large UBI projects for insurers and service providers alike.

IP76 Waterproof Queclink GB130MG Anti Jammer Data Logger Accurate Vehicle Real Time Gps Tracking Device Gps Tracker For Car 4G

Characteristics

Operating Band Cat M1/Cat NB2: Cat M1: LTE-FDD: B1/ B2/ B3/ B4/ B5/ B8/ B12/ B13/ B18/ B19/ B20/ B25/ B28/ B66/ B85 Cat NB2: LTE-FDD:B1/B2/B3/B4/B5/B8/B12/B13/ B18/B19/B20/B25/B28/B66/B71/B85

Data Transmission eMTC (DL) 348 Kbps eMTC (UL) 1.08 Mbps NB2 (DL) 121 Kbps NB2 (UL) 150 Kbps NB1 (DL)74.1 Kbps NB1 (UL)101 Kbps

Frequency 850 / 900 / 1800 / 1900 MHz

Data Transmission GPRS 107Kbps(DL)/85.6Kbps(UL) EDGE 296Kbps(DL)/236.8Kbps(UL)

GNSS Type u-blox All-in-One GNSS receiver

Constellation Support GPS,Glonass,Galileo,Beidou

Sensitivity Cold Start: -148 dBm Reacquisition: -160 dBm Tracking: -167 dBm

Position Accuracy (CEP) Autonomous: < 2m

TTFF (Open Sky) Cold start: 29s average Warm start: 21s average Hot start: 1s average

Dimensions 134.6 × 67.5 × 14.8mm 5.30” (L) × 2.66” (W) × 0.58” (H)

Weight 130g (4.59oz)

Backup Battery High temperature NiMH, 200 mAh

Water Resistance IP67 Compliant

Operating Voltage 8V to 32V DC

Operating Temperature -30℃~ +70℃ -40℃ ~ +70℃ for storage

BLE Support BLE 5.2 protocol

Cellular Antenna Internal only

GNSS Antenna Internal only

Bluetooth Antenna Internal only

LED Indicators CEL, GNSS, PWR

Transmit Protocol TCP, UDP, SMS

Scheduled Report Report position and status based on preset time intervals, distance, mileage or a combination of these settings

Geo-fences Geo-fence alarm, support up to 20 circular and 20 polygon geo-fence regions

Crash Detection Accident data collection for reconstruction and analysis

Crash Data Packet Crash data collection from accelerometer up to 15 seconds before and after an incident

Driving Behavior Monitoring Aggressive driving behavior detection, including harsh braking, acceleration, etc.

Tow Alarm Alarm for tow event in ignition-off state

Virtual Ignition Detection Based on voltage and accelerometer
