Description

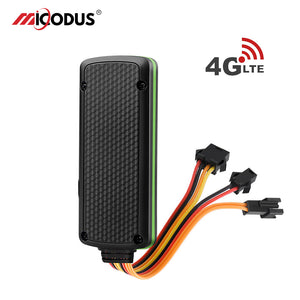

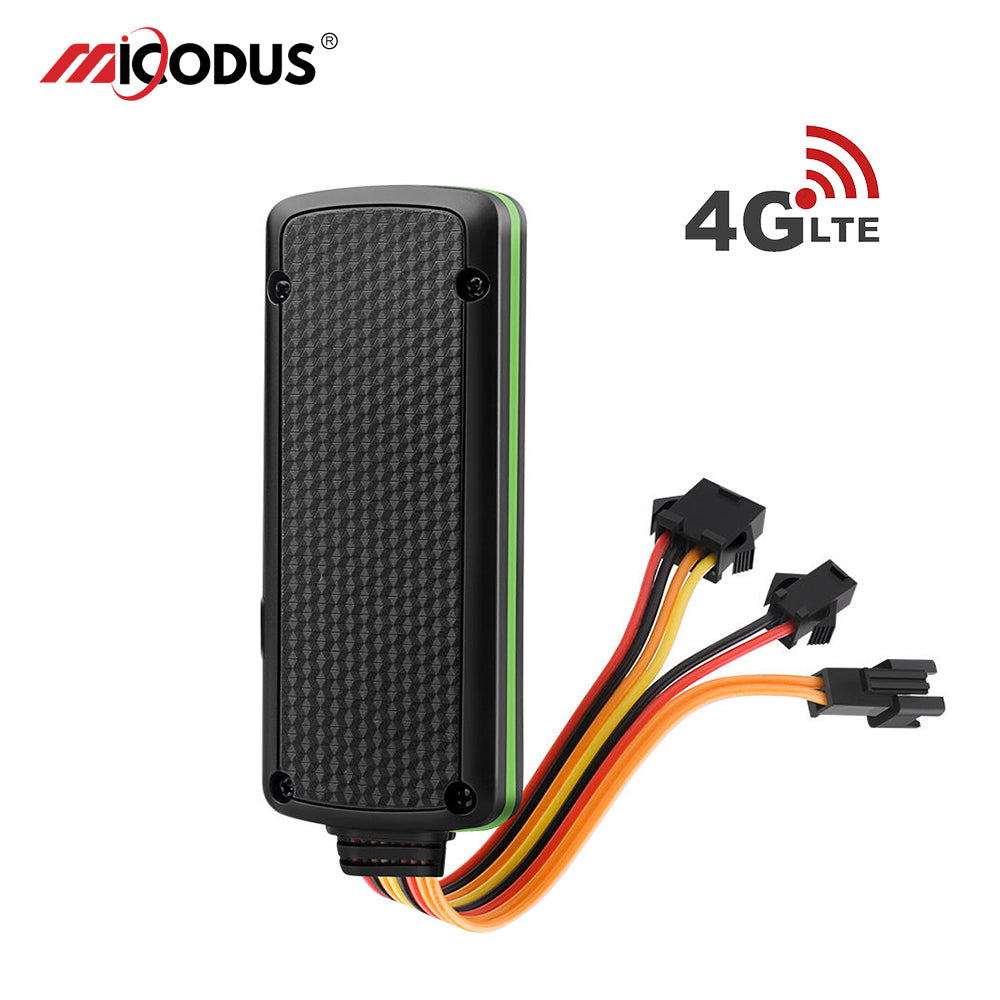

MV400G 4G GPS Tracker

GPS+AGPS Realtime tracking

AGPS assisted positioning to improve the positioning speed of our device.

Operating Voltage

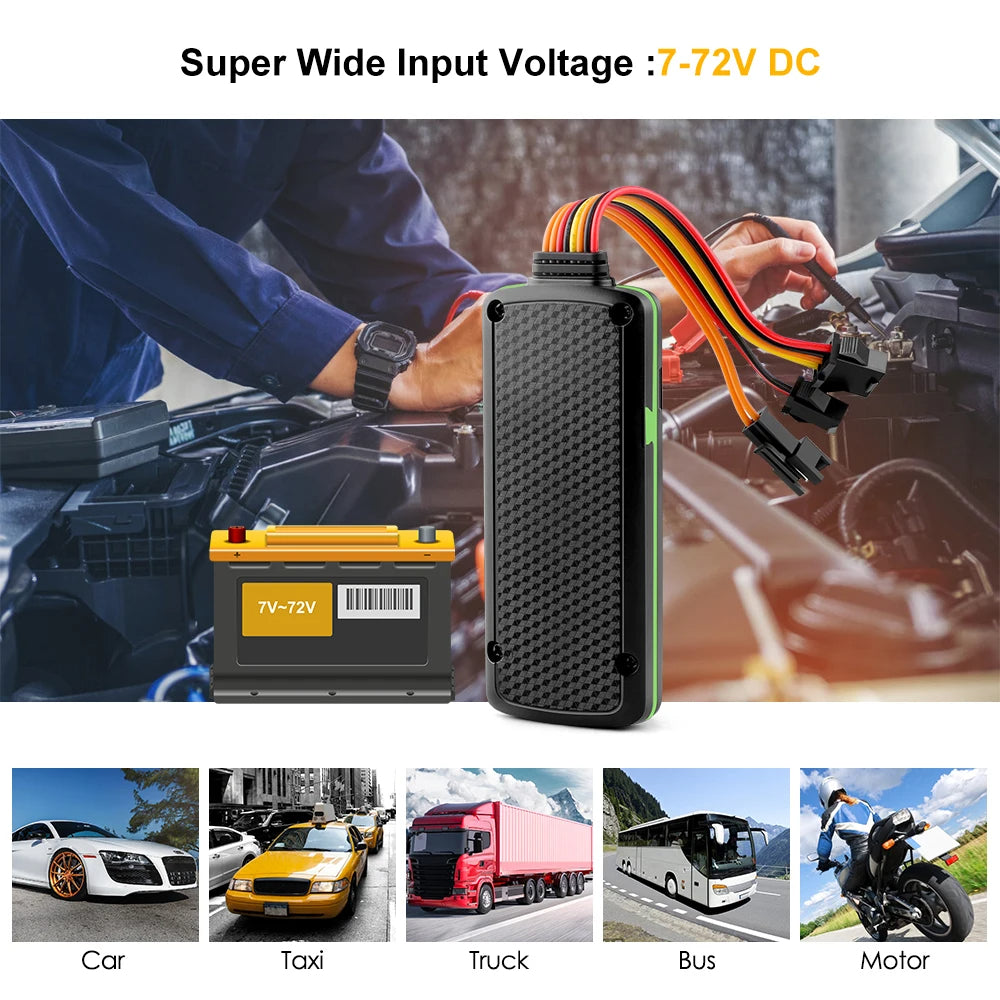

Super wide input voltage:7-72v.suitable for all kinds of cars.

Built-in G-sensor

The built-in sensor of the device, when the device vibrates, our mobile phone will receive an alarm message to avoid theft.

Waterproof IP65

Multiple alarm functions

1.Low battery alarm&power disconnect;
2.overspleed alarm;
3.Geo-fence;

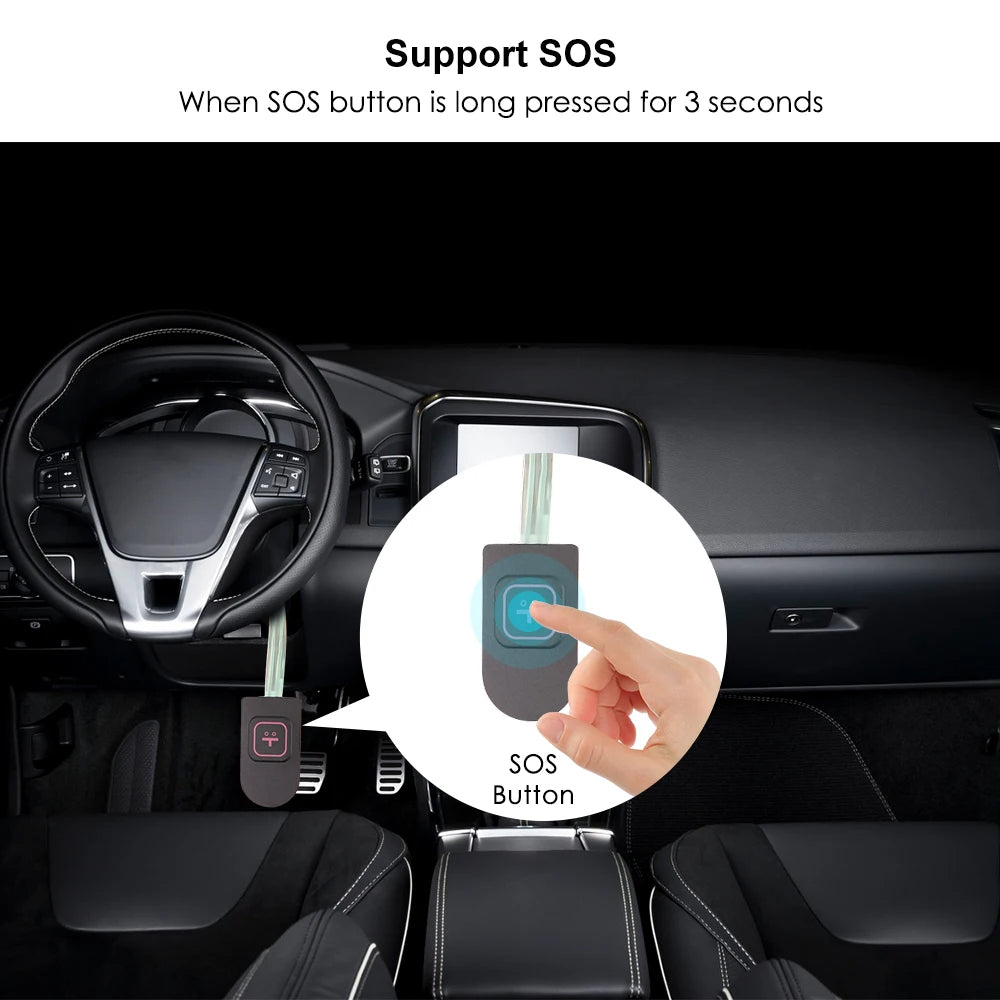

4.SOS alarm;(If you need this feature, please choose to configure the SOS line）；
5.Move alarm;
6.Loosing alarm.

SMS inquiry device position

Platform and mobile app

Website:http://www.micodus.net

Mobile APP:scan the QR code in the image and download the mobile app,log in with the device's id (above device sticker) number and password; (the original password is :123456. You can modify it).

SIM card installation

Overview

MV400G, Is a 4G GPS tracker device, it work band is 800/900/1800 / 1900Mhz, can be used globally, we can monitor your vehicle by GPS satellite positioning system, temperature detection unit GPRS / LTE CAT M1, communication and-Internet a real-time remote location and temperature monitoring and control of vehicles can be achieved through a powerful service platform. It plays a significant role in logistics and cold chain, helping customers to achieve transparent management, reduce costs ensure safety, and improve efficiency.

Product Features

1. Supports GSM/LTE CAT M1;
2.Super Wide Input Voltage: 7-72V DC;
3.GPS precise positioning, support A-GPS uploaded by LTE/GPRS regularly, real-time tracking and history track playback;
4.ACC status detection;
5.Support SOS, Temperature, External battery, Gplo(Hardware customization Choose one of the four );
6.Serial port, also can be GPIO port(Firm ware Customization);
7.Built-in battery, power disconnect alarm low battery alarm;
8.Built-in G-sensor vibration, collision and falling alarm;
9.Geo-fence alarm, speed &shift alarm;
10.Relay to cut engine, auto cut engine when over speed and recover when normal speed;
11.EELINK protocol 2.0, Firmware OTA;
12.Waterproof level IP65.

Specification

Antenna: LTE Antenna Internal, GPS Antenna Internal
GPS Positioning Accuracy: 5m-15m (Depending on GPS Signal)
LBS Positioning Accuracy: ~ 200m (Depending on density of base stations)
GPS Frequency: L1, 1575.42MHz C / A code
Network: LTE / FDD, WCDMA, GSM, SMS
GSM Frequency: 850/900/1800 / 1900MHz
GPRS: Class 12, TCP / IP
LED Indicator: GPS-Blue; GSM-Red
Hot / Warm / Cold Start: <3x, <15s, <60s
Main PCB: LTE Module
Built-in Battery: Embedded 3.7V / 140mAh battery for emergency alarm when removing main power

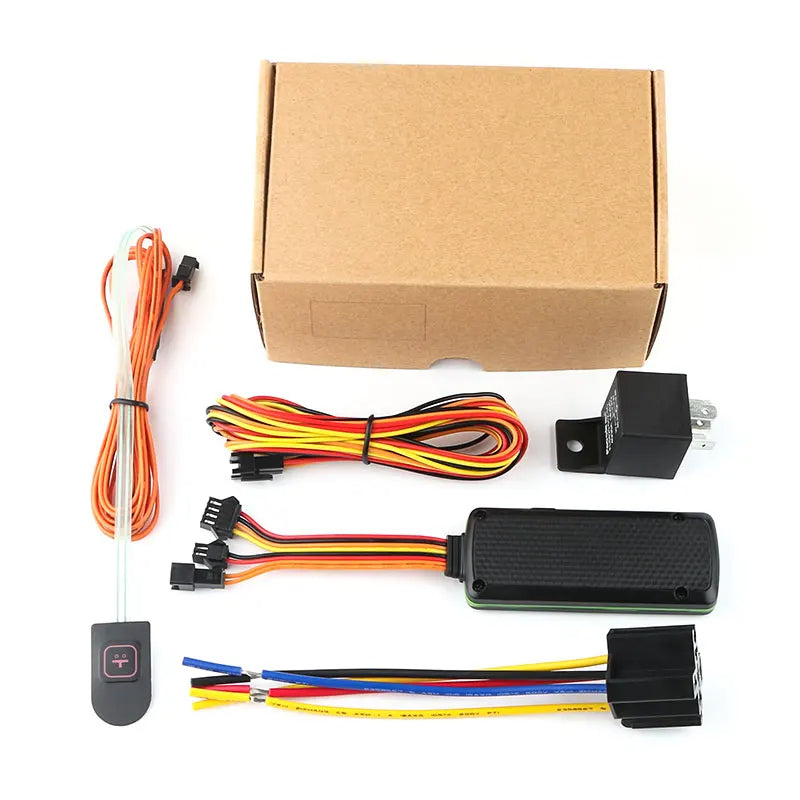

Optional Accessories: Relay, Temperature Sensor, SOS, External Battery.
Work Current: <30 mA
Standby Current: <15 uA
IP Waterproof Level: IP65
Dimensions (mm): 89mm x 37mm x 12mm
Operating Voltage: 9-72V DC
Environment Temperature: -20 ○ C-65 ○ C
Environment Humidity: 20% ~ 80% RH

Characteristics

Type Mini, build-in

Placement Windshield, Dashboard, wired-conneted

Track View PC, IOS APP, SMS Coordinate, Android APP

Warranty 1 Years

Place of Origin Guangdong, China

Battery Life (Hour) 24~48H

Brand Name Micodus

Model Number MV400G

Use Motorcycle, Automotive, BICYCLES, GPS Tracker

Size 89mm x 37mm x 12mm

Working voltage/curren 9-72V DC

Network LTE / FDD, WCDMA, GSM, SMS

GSM Frequenc 850/900/1800 / 1900MHz

GPRS Class 12, TCP / IP

IP Waterproof Level IP65

Hot / Warm / Cold Start <3x, <15s, <60s

Environment Temperature -20 ° C-65 ° C

Environment Humidity 20% ~ 80% RH

Platform Lifetime FREE(MICODUS)

Selling Units Single item

Single package size 15X8X6 cm

Single gross weight 0.300 kg
