Description

Main Features:

1. Network: 4G LTE CAT1+2G GSM/GPRS

2. Realtime Tracking
3. History Route Playback
4. Built-in 3.7V 2500mAh Li-ion battery
5. Fast charging
6. Waterproof IP65
7. Remotely Voice Monitor

9. Strong Magnetic
8. Multiple Alarms: Overspeed Alarm,Shock/Vibration Alarm, Movement Alarm, Geo-fence, Teardown Alarm.
9. Data logger
10.LIFETIME FREE Web Tracking Platform and Mobile APP

11. MiCODUS Tracking Platform Supports Multiple Languages.

www.micodus.net
iOS&Android APP: Micodus

Small Size

Convenient for carrying, dimensions: 78mm(L)x58mm(W)x14mm(H)

Type-C Charging Port

ML300G uses the most popular type-c charging port, it can be fully charged by only around 4 hours.

Long Working Time

ML300G has built-in rechargeable 3.7V 2500mAh Li-ion battery, can last 4-6 days under normal working mode

4G LTE & 2G GSM Network

This GPS tracker ML300G supports the latest 4G network on multiple bands for operation globally and also stay with a fallback to 2G network, can work perfectly around the worldwide countries.

2G GSM/GPRS:850/900/1800/1900MHz

4G LTE CAT1:B1/B2/B3/B4/B5/B7/B8/B28/B66

Realtime Tracking & Historical Route Playback

You will can realtime track your target on google maps via mobilephone, tablet and computer, and the minumum upload interval is 10 seconds. And Our MiCODUS platform also can record the history route data up to 180 days, it can help you to change your lifestyle about driving habits, fuel saving, environment friendly.

Support GPS+GLONASS+BDS

Supports GPS+GLONASS+BDS multiple positioning systems ensures that locations are accurately displayed on the cloud platform.

Dual Positioning Ways

Support two positioning methods: GNSS+LBS, your car can be tracked via both indoor and outdoor

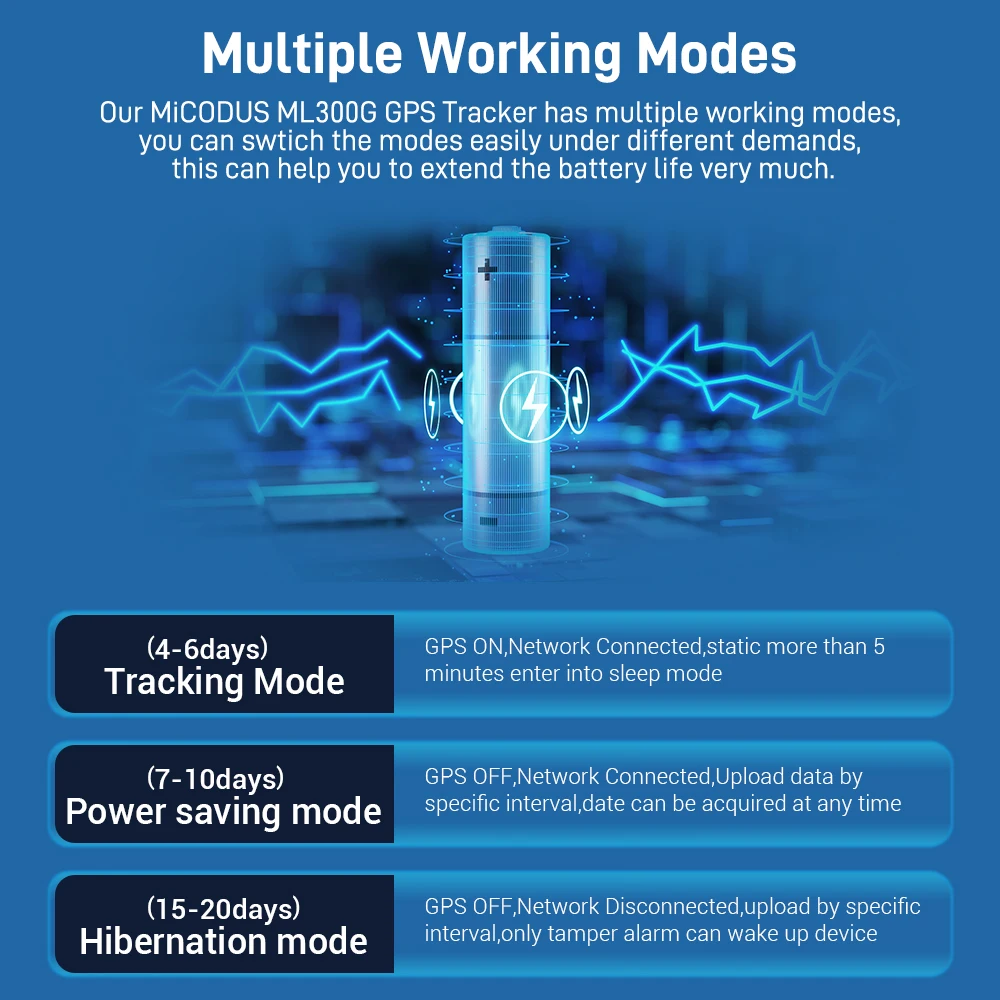

Multiple Working Modes

Our MiCODUS ML300G GPS Tracker has multiple working modes, you can swtich the modes easily under different demands, this can help you to extend the battery life very much.The device has built-in rechargeable 3.7V 2500mAh Li-ion battery.

Tracking Mode≈4-6 days

Power saving Mode≈7-10 days

Hibernate Working Mode≈15-20 days

Web Tracking Platform and Mobile APP

LIFETIME FREE ! Web server and both iOS and Android version APP are available!

1). Time Zone & Local Language: More than 10 languages and timezone settings
2). Multiple Account Support: Allow you to set up an account for company users to manage many vehicles
3). Group Management: The user can manage the vehicle by setup different groups
4). Reporting and Export: The overview report, Speeding report, Mileage Report, Stop Report
5). Freely import GPS devices.
6). Lifetime free tracking platform.
7). MiCODUS tracking platform support most GPS models.
8). Micodus platform can host unlimited quantity of gps tracking device.

www.micodus.net
APP; MiCODUS

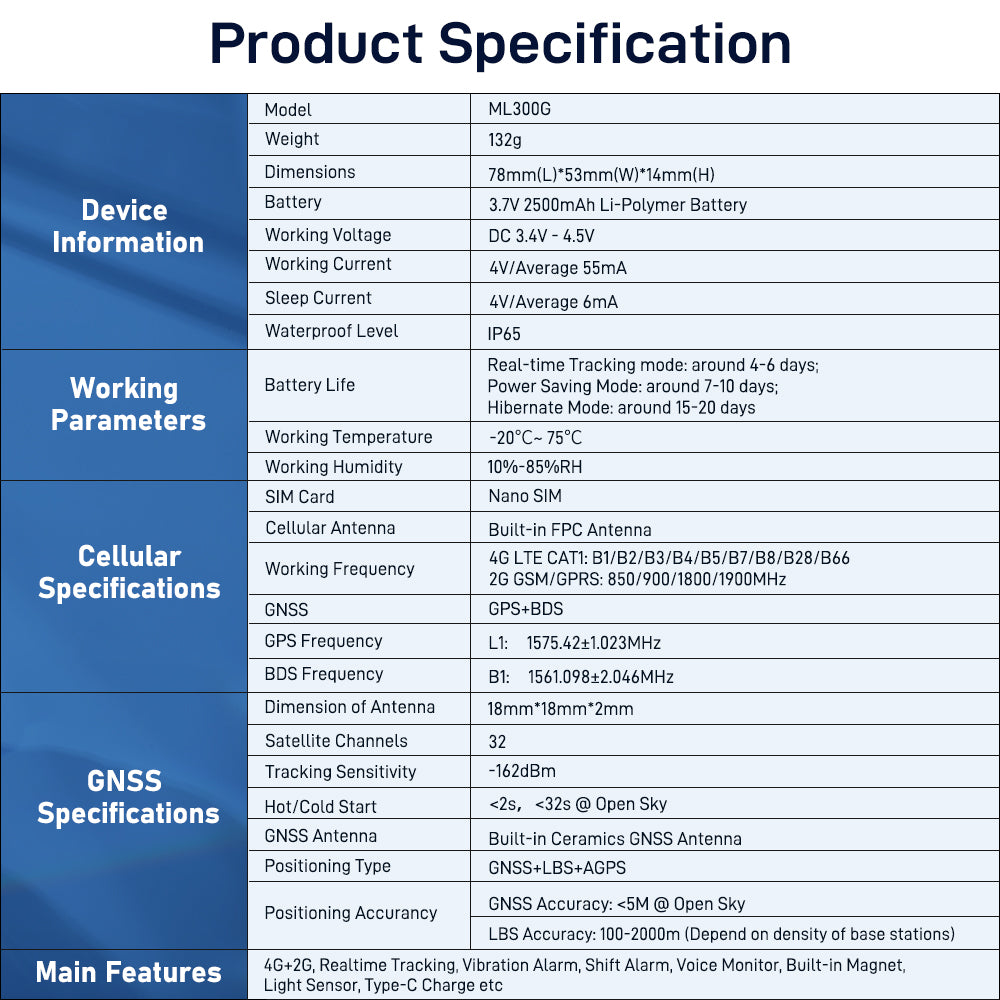

Characteristics

Model ML300G

Weigh 132g

Dimensions 78mm(L)*53mm(W)*14mm(H)

Battery 3.7V 2500mAh Li - Polymer Battery

Working Voltage DC 3.4V - 4.5V

Working Current 4V/Average 55mA

Sleep Current 4V/Average 6mA

Waterproof Level IP65

Battery Life Real-time Tracking mode: around 4-6 days; Power Saving Mode: around 7-10 days; Hibernate Mode: around 15-20 days

Working Temperature -20℃~75℃

Working Humidity 10%-85%RH

SIM Card Nano SIM

Cellular Antenna Built-in FPC Antenna

Working Frequency 4G LTECAT1:B1/B2/B3/B4/B5/B7/B8/B28/B66 2G GSM/GPRS: 850/900/1800/1900MHz

GNSS GPS+BDS

GPS Frequency L1: 1575.42±1.023MHz

BDS Frequency B1: 1561.098±2.046MHz

Dimension of Antenna 18mm*18mm*2mm

Satellite Channel 32

Tracking Sensitivity -162dBm

Hot/Cold Start <2s，<32s @ Open Sky

GNSS Antenna Built-in Ceramics GNSS Antenna

Positioning Type GNSS+LBS+AGPS

Positioning Accurancy GNSS Accuracy: <5M @ Open Sky; LBS Accuracy:100-2000m (Depend on density of base stations)

Main Features 4G+2G, Realtime Tracking,Vibration Alarm,Shift Alarm,Voice Monitor, Built-in Magnet,Light Sensor,Type-C Charge etc
