About

Description

Main Features:
1. GPS+GLONASS+LBS Multiple Positioning Ways
2. Realtime Tracking
3. History Route Playback
4. Built-in 3.7V 5000mAh Li-ion battery
5. Powerful Magnetic
6. Waterproof IP65
7. Remotely Voice Monitor
8. Overspeed Alarm,Shock/Vibration Alarm, Movement Alarm, Geo-fence, Teardown Alarm, Temperature
Monitor

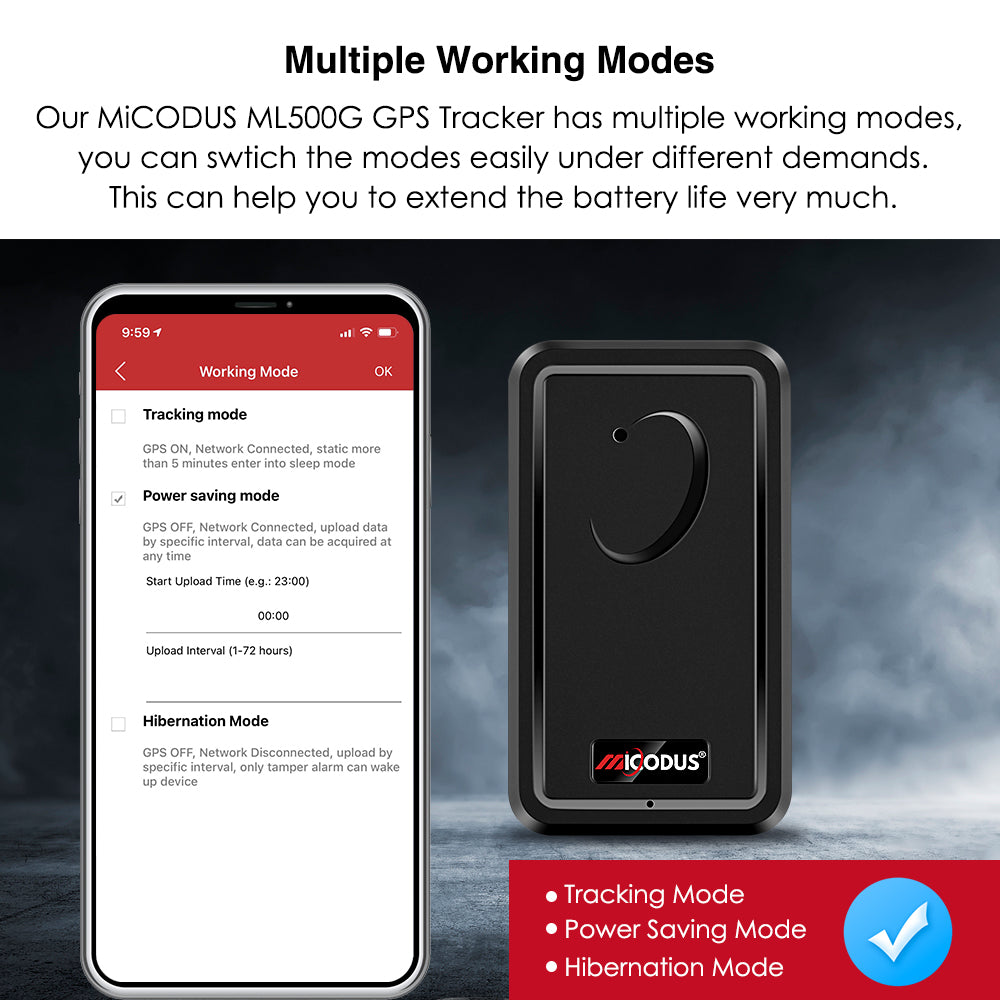

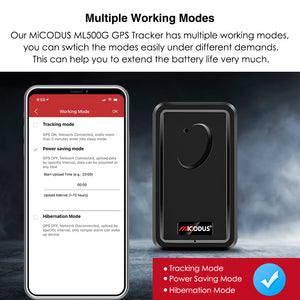

9. Multiple Working Modes: Realtime tracking mode, Power saving mode, Hibernation mode
10.LIFETIME FREE Web Tracking Platform and Mobile APP
11. The Tracking Platform Supports Multiple Languages.

www.micodus.net
iOS&Android APP: Micodus

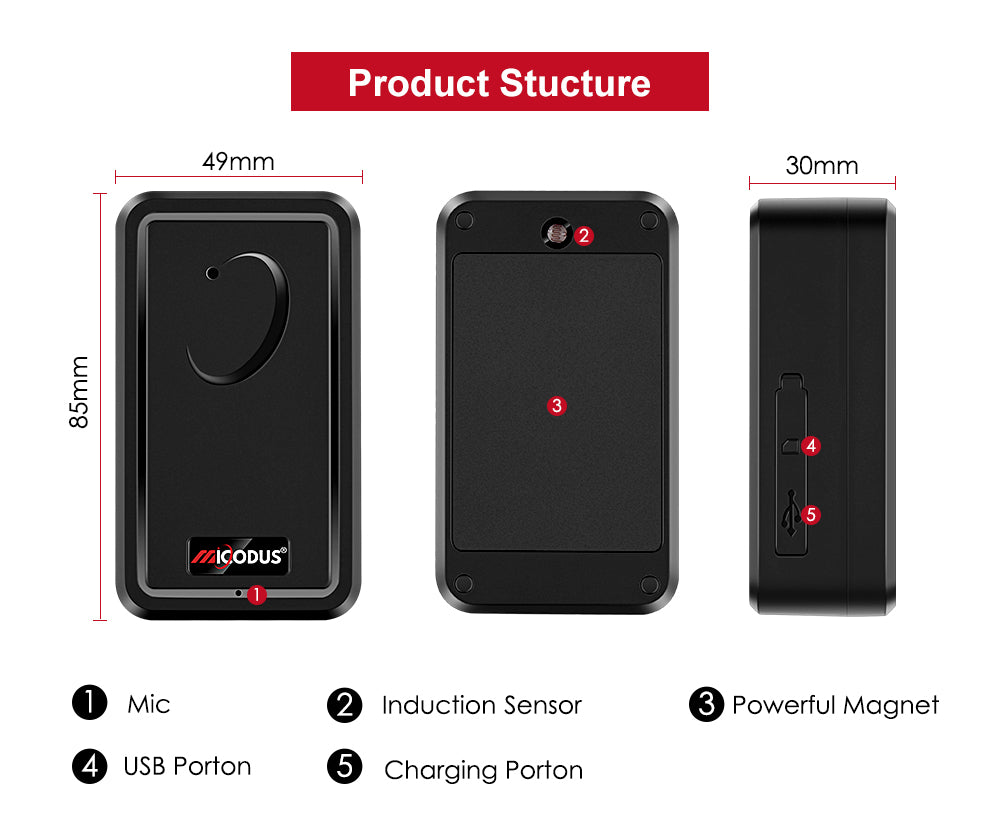

Product Structure

Product Size: 85(L) x 49(W) x 30(H)mm

Weight : 125g

IP65 Dust And Waterproof

Our MiCODUS ML500G GPS tracker has super water-resistant to ensure stable operation in tough environment.

It is not only effectively prevent dust from entering, but also don't worry about being splashed by water.

Long Standby and Working Time

The GPS tracking device has built-in rechargeable 3.7V 5000mAh Li-ion battery, can last 7-10 days under tracking mode and around 35 days under hibernate working mode.

Strong Magnetic Mounting

It has 6PCS built-in magnets, which super strong magnetic, can be installed very easily, all people will can manage it, no need professional installation.

Temperature Monitoring

Our MiCODUS ML500G GPS tracker has built-in temperature sensor, it can detect the temperature of the surrounding environment. The error is within the range of 1 to 2 degrees celsius.

Remotely Voice Monitor

This MiCODUS ML500G GPS tracker has super quality built-in microphone, you will can remotrly monitor the device around the device clearly via your cellphone by manual dialing and automatic answering.

Teardown Alarm

This ML500G has built-in light sensor, after installed it, this fall off alarm function will be enabled automatically.Once someone take ot away or the device dropped the device will send " TEARDOWN ALARM " message to SOS contact munbers and tracking platform.

4G & 2G

This GPS tracker supports the latest 4G LTE Cat1 network on multiple bands for operation globally, and also stay with a fallback to 2G GSM/GPRS/EDGE, can work perfectly around the worldwide.

Product Applications

MiCODUS ML500G is small size and portable, it can be used for cars, personal, cargo, container etc.

Web Tracking Platform and Mobile APP

LIFETIME FREE ! Web server and both iOS and Android version APP are available!

www.micodus.net

APP: MiCODUS

Support Multiple languages tracking platform.There is demo account , just please go there to click the demo account button directly to try it. no need user name and password.

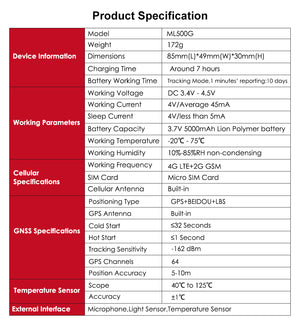

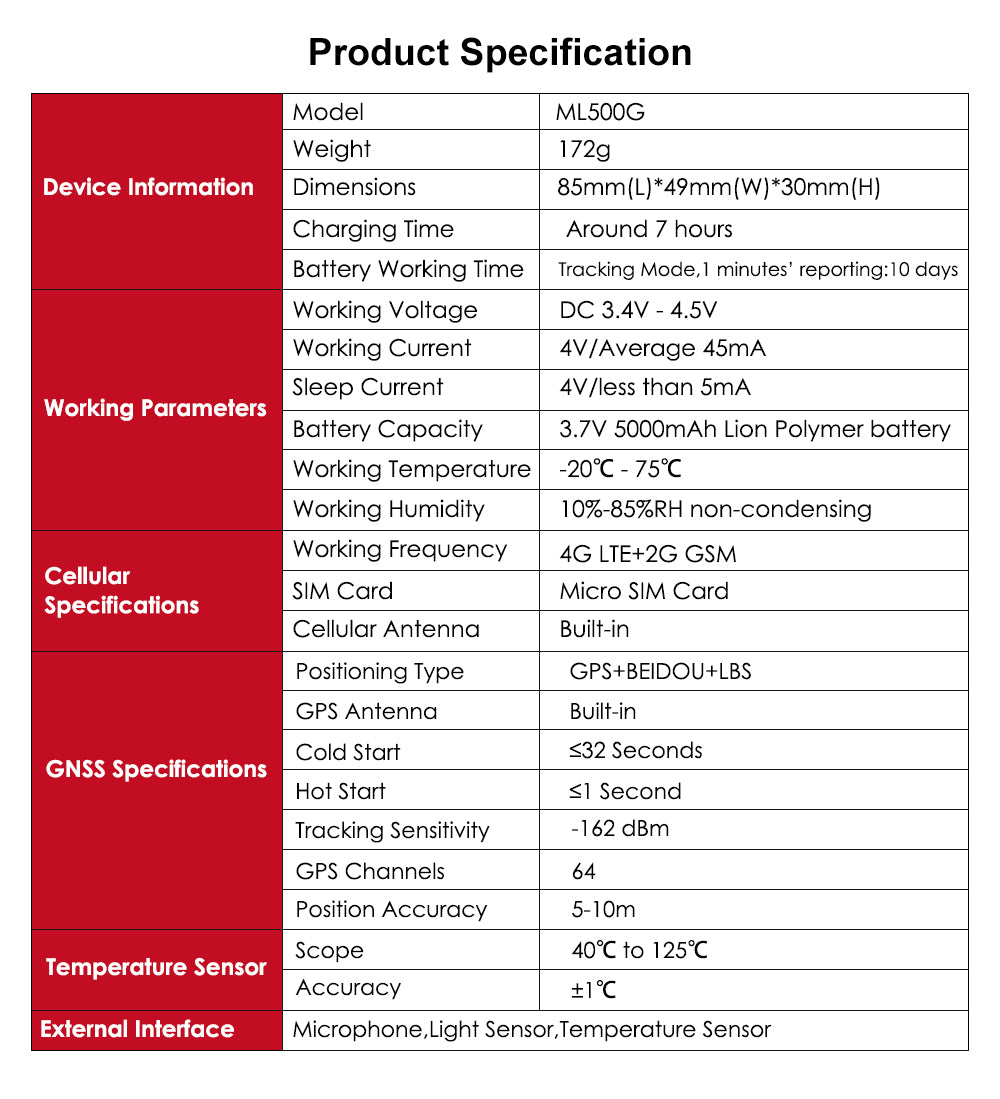

Characteristics

Model ML500G

Weight 172g

Dimensions 85mm(L) * 49mm(W) * 30mm(H)

Charging Time Around 7 hours

Battery Working Time Tracking Mode, 1 minutes’ reporting: 10 days

Working Voltage DC 3.4V - 4.5V

Working Current 4V/Average 45mA

Sleep Current 4V/less than 5mA

Battery Capacity 3.7V 5000mAh Lion Polymer battery

Working Temperature -20℃ - 75℃

Working Humidity 10%-85%RH non-condensing

Working Frequency 4G LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66 2G GSM/GPRS/EDGE: 850/900/1800/1900MHz

SIM Card Micro SIM Card

Cellular Antenna Built-in

Positioning Type GPS+BEIDOU+LBS

GPS Antenna Built-in

Cold Star ≤32 Seconds

Hot Star ≤1 Second

Tracking sensitivity -162 dBm

GPS Channels 64

Position Accuracy 5-10m

Scope 40℃ to 125℃

Accuracy ±1℃

External Interface Microphone, Light Sensor, Temperature Sensor
