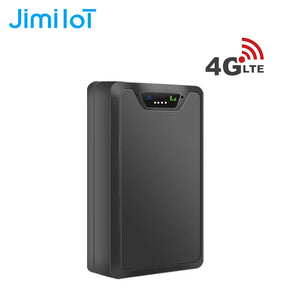

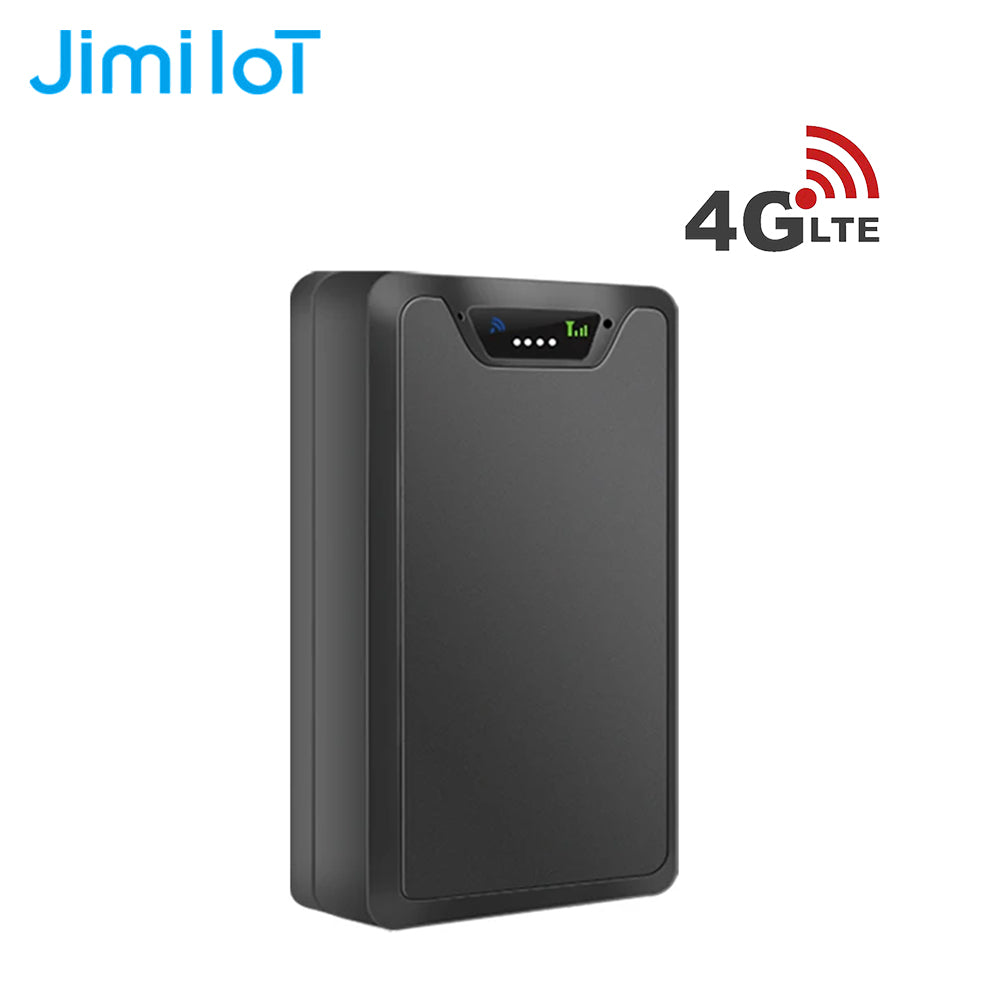

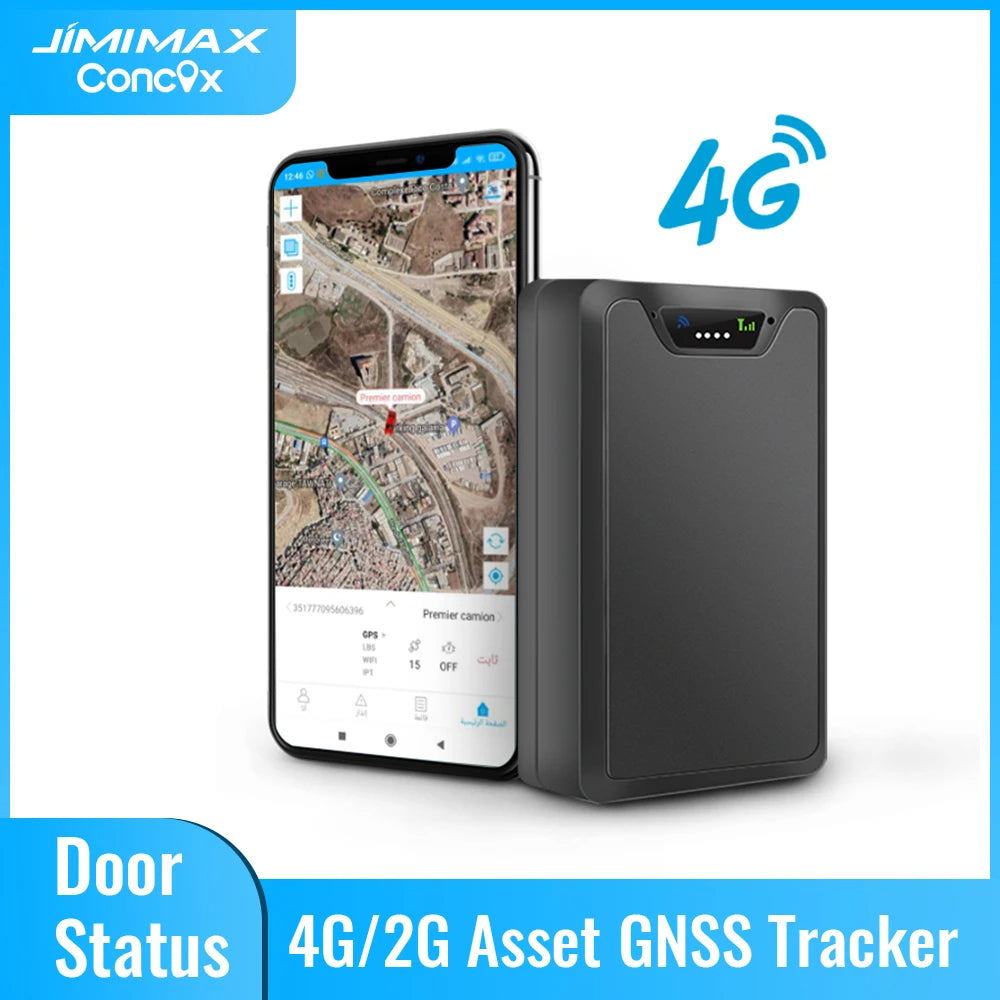

4G Assets GPS Tracker LL302

Designed for vehicle & asset tracking, LL302 is a 4G Wireless Asset GNSS Tracker that supports GPS/BDS/LBS/Wi-Fi positioning, light sensor, and multiple alerts for abnormal vibration, low battery, etc. With our cloud platform and mobile App, LL302 is ideal for remote monitoring of users’ targets, and it’s also suitable for such application scenarios as vehicle rental, fleet management, logistics transportation, etc.

Why JIMIMAX LL301 Assets GPS Locator?

1). Temperature /Humidity Sensor

The GPS tracker LL302 4G device can monitor your vehicles inside temperature and trigger alerts with your setted param.

2). Super Long Standby Time

Our LL302 have built-in chargeable and changeable 3.7V 6000mAh Li-ion battery and intelligent dormancy function. One-time charging lasts Up to 1 years in power-saving mode.

3). IP65 Dust And Waterproof

Our asset GPS tracking device have super water-resistant to ensure stable operation in tough environment. It is not only effectively prevent dust from entering, but also don't worry about being splashed by water.

4).Vibration Alarm

Our LL302 Assets tracker have a 3D acceleration sensor. When an abnormality occurs in your car, for example, if someone collide, smash or scratch the car, the device will send a telephone alarm to find the corresponding person in time.

5). GPS+WiFi+LBS Triple Positioning

Our GPS tracking device support GPS, BDS,WiFi and LBS triple positioning. WiFi position is the assisted positioning, which can link automatically in WiFi. Latest WiFi positioning enables the asset to be pinpointed accurately and rapidly.

6). Spreadtrum Intelligence Chipset

Our 4G Asset GPS Tracker LL302 adopt high-performance processing chipest-SC7701B. While reducing the power consumption by a large margin, the accuracy of positioning is greatly increased. Let you enjoy a more accurate life.

7). Get realtime Temperature and humidity report

With TracksolidPRO platform you can get many alerts like Temperature and humidity report .

8). LTE & GSM Network

More fast and accurate for position with 4G LTE and GSM network.

Packing Details for AT4/ LL301 Voice Monitor gps tracker

Tracking Platform---TracksolidPRO

TracksolidPro is a SaaS platform for GPS tracking and video monitoring. Much more powerful and professional: 2,000,000+ Devices integrated | 800,000+ Daily active devices | 150+ Supported devices | 220+ Countries covered | 32+ Languages Supported with APP "TracksolidPRO" for Andorid and IOS.

Characteristics

Positioning system GPS+BDS+LBS

Positioning accuracy ＜2.5m CEP

Tracking sensitivity -165dBm

Acquisition sensitivity -148dBm

TTFF (open sky) Avg. hot start ≤1sec Avg. cold start ≤32sec

Communication network LTE Cat 1/GSM

Frequency LL302-E: LTE-FDD: B1/B3/B5/B7/B8/B20/B28 LTE-TDD: B38/B40/B41 GSM: B2/B3/B5/B8LL302-L: LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28 LTE-TDD: B40 GSM: B2/B3/B5/B8

Battery 6,000mAh/3.7V industrial-grade Li-Polymer battery

Working modes Mode 1: Timing mode Mode 2: Intelligent mode Mode 3: Power-saving mode

Standby time Up to 300 days in power-saving mode

LED indication GNSS (Blue), Cellular (Green), Power (White)

SIM Micro-SIM

Tamper proof Light sensor

Dimensions 95.0 x 59.0 x 29.2mm (with magnet)

Weight 233g (with magnet)

Operating temperature –20℃ to +70℃

Operating humidity 5%～95%, non-condensing

IP rating IPX5

Temperature detection –20℃ to +70℃ (±0.2℃)

Humidity detection 5%～95% (±1％RH)

Sensors Accelerometer, Light sensor, Temperature & humidity sensor(Optional), Hall effect sensor

Scenarios Low battery alert, Tamper alert, Vibrating Alert
