About

Description

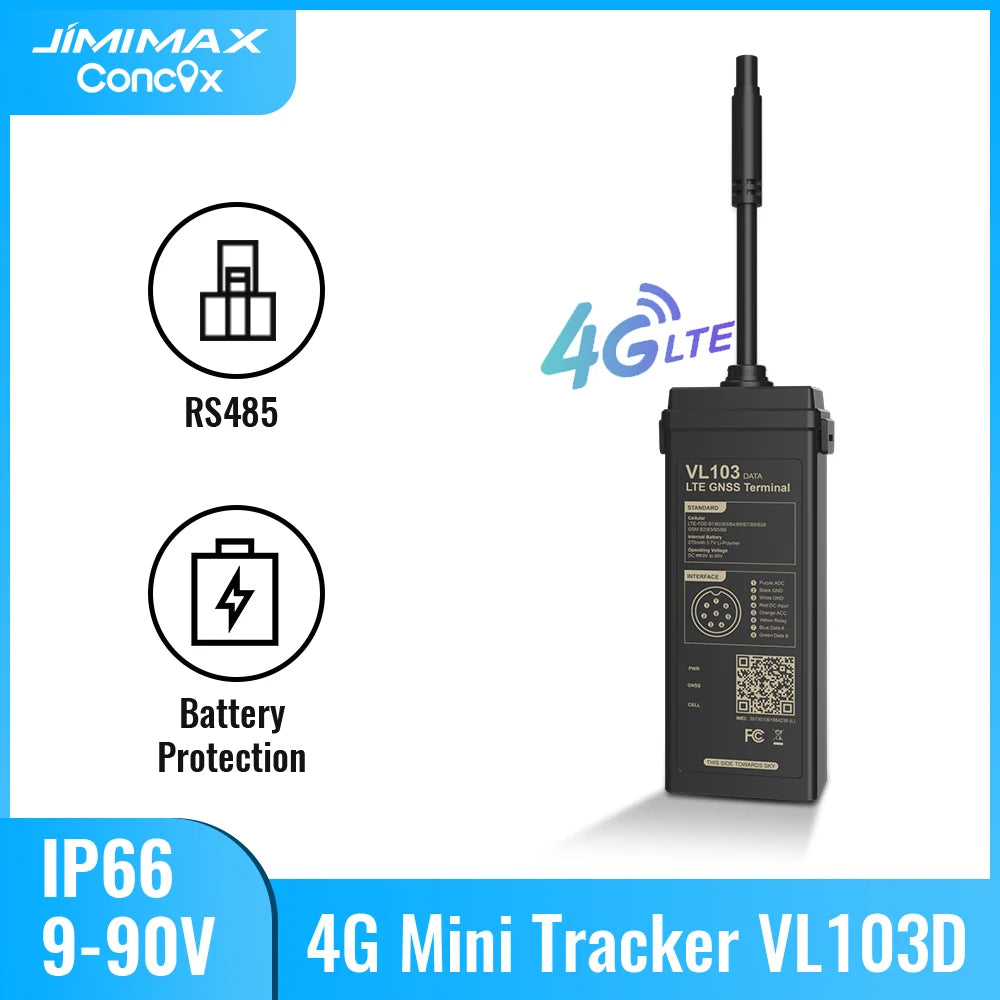

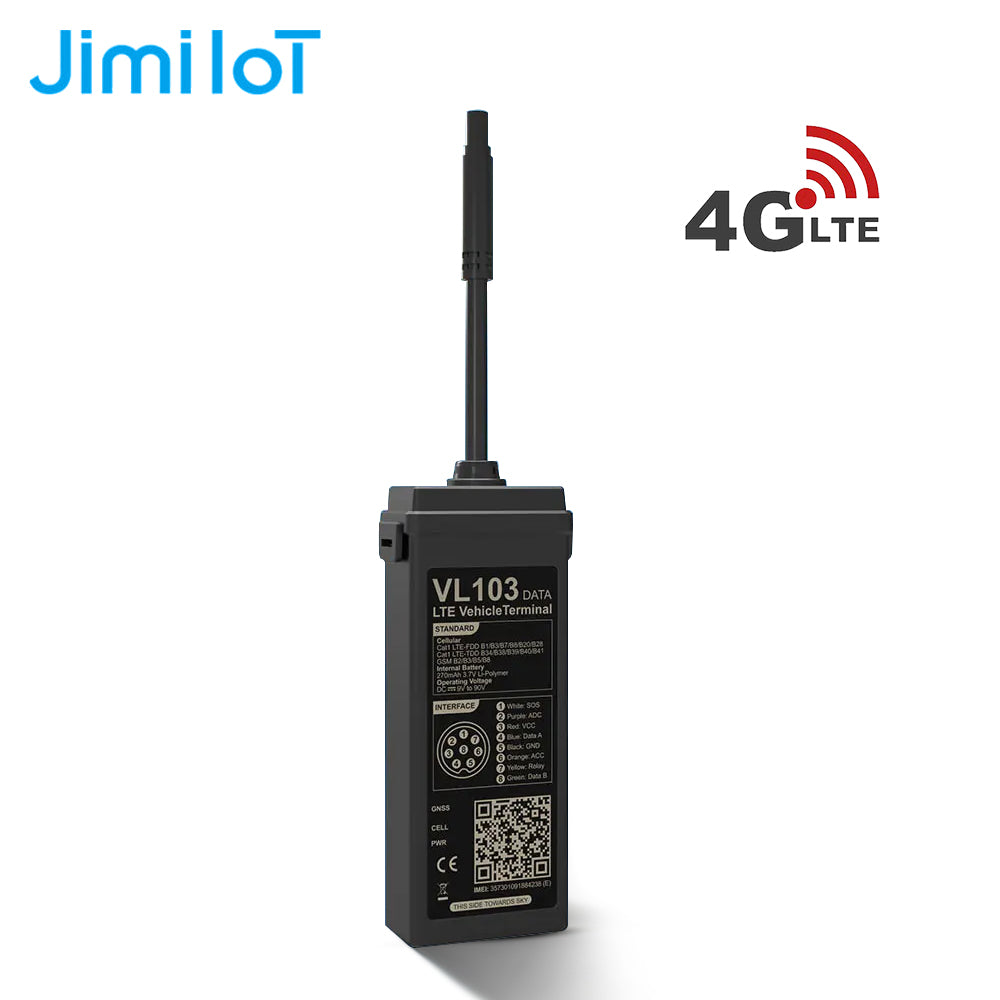

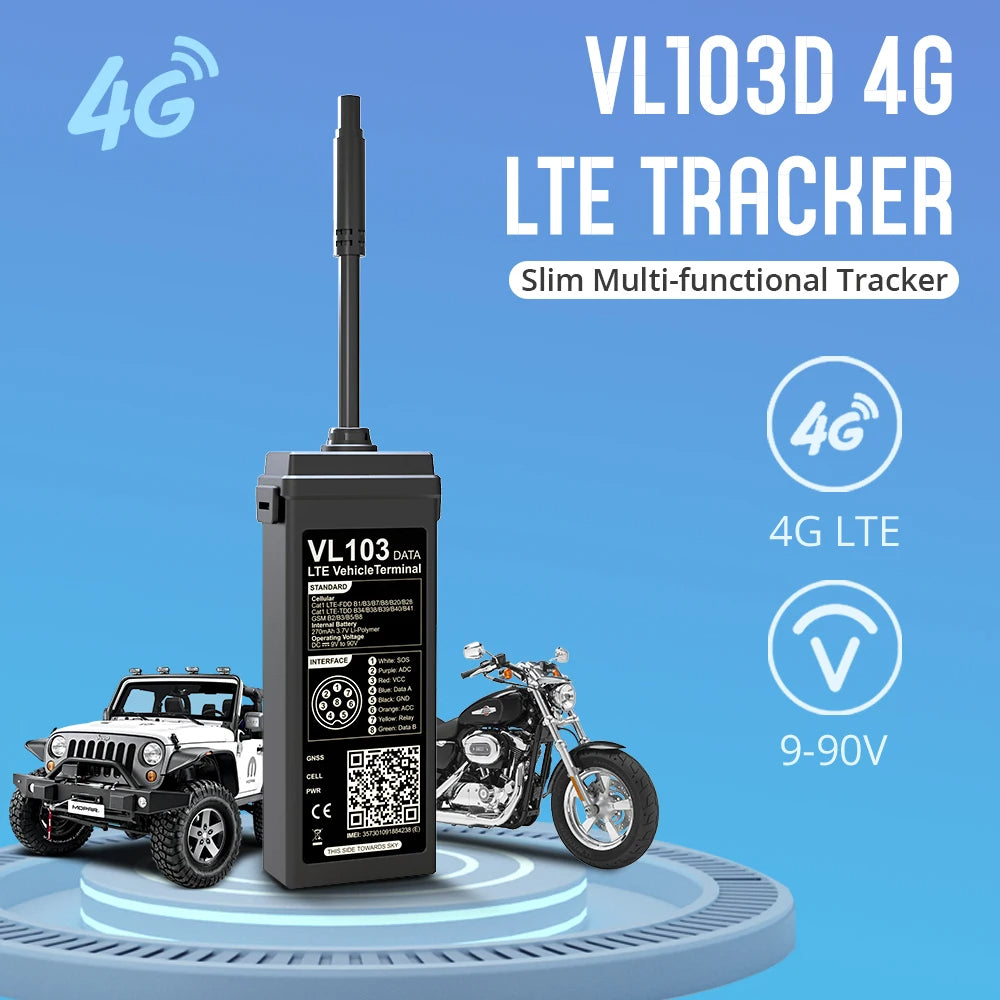

JimiIoT VL103D Mini Realtime Locator Remote Control Car Tracker 4g Cable Alarm for Motorcycle RS485 270mAH Battery Cut-Off Fuel

1. Why JIMIMAX & Concox VL103D Car Tracker 4g?

Compact size with great power, the VL103D is a discreetly-installed, fully-featured tracker with LTE, GNSS, RS485 interface and the IP66 waterproof rating. LTE communication with GSM (2G) fallback ensures a solid connection in almost all cases, and the wide 9-90V input voltage range is compatible with virtually any vehicle. It is a perfect tracker for a wide range of use cases – stolen vehicle recovery and the management of motorcycles, passenger cars, and light commercial vehicles.

1). 4G Tracker Work Global

Global use for VL103D GPS tracker for motorcycle 4G car locator, we will send out the correct version E or L to you.

2). Mini size powful function

With RS485 port and battery, driver bahavior monitoring, 9-90V wide volgate 4G gps tracker.

3). Stop Engine Remotely

With relay can stop car remotely by send command Relay,1# or just click the button in TracksolidPRO APP.

4). 9-90V Wide Voltage

Suit for all kinds of vehicles tracking, boad, truck, motorbike, car, bus fleet management etc.

4). Slim Design

The smallest size among all Concox and JIMIIOT 4g gps trackers, easy to hide.

5). 270mAH built-in Battery

With built-in battery, can work even power cable was cut and more convinent for testing.

6). Car Battery Protection

No worry about your car or motorbike will drain out the original battery while you open the VL103D battery protection function.


7). Dust & Water Resistance IP66

JIMIMAX VL103D gps tracker suit for SUV, scooter , boat etc help you drive more safety.


8). 4 kinds of Driver behavior monitor

Driving behavior analysis for Harsh acceleration, Harsh braking, Harsh cornering, Collision.

2. Advantages of JIMIOT & Concox JM-VL103D Mini Tracker

1). LTE & GSM Network
Communication via 4G LTE networks with 2G GSM fallback.
2). Configurable Input/Output
Set to alarm button status monitoring by default, also configurable as an extra digital output.
3). Vehicle Battery Protection
Automatically stop drawing power from the car battery when it drops near the threshold.
4). IP66 Dust & Water Resistance
Rugged design ensures continued optimal performance, even in the toughest conditions.

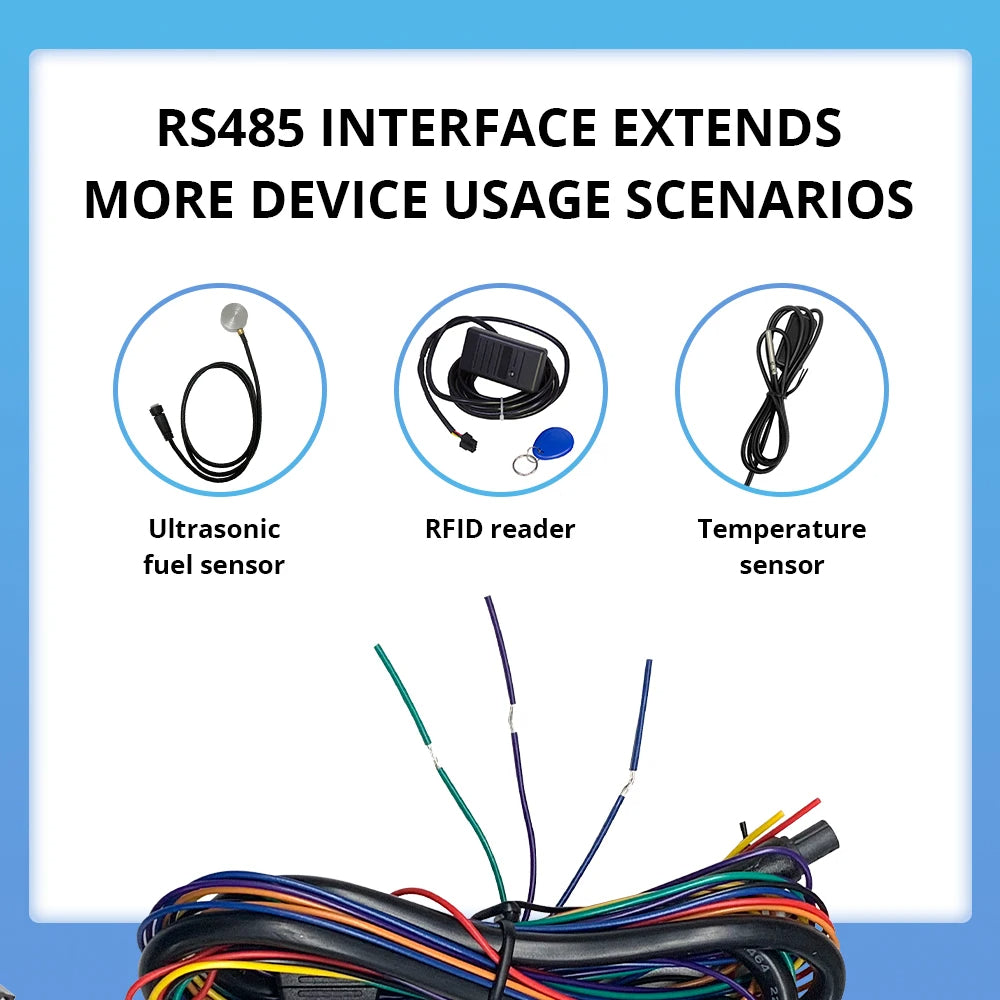

5). RS232 & TTL Interface RS485 interface extends more device usage scenarios.
6). Driving Behavior Analysis (Basic)
Receive alerts when any of 4 kinds of dangerous driving.

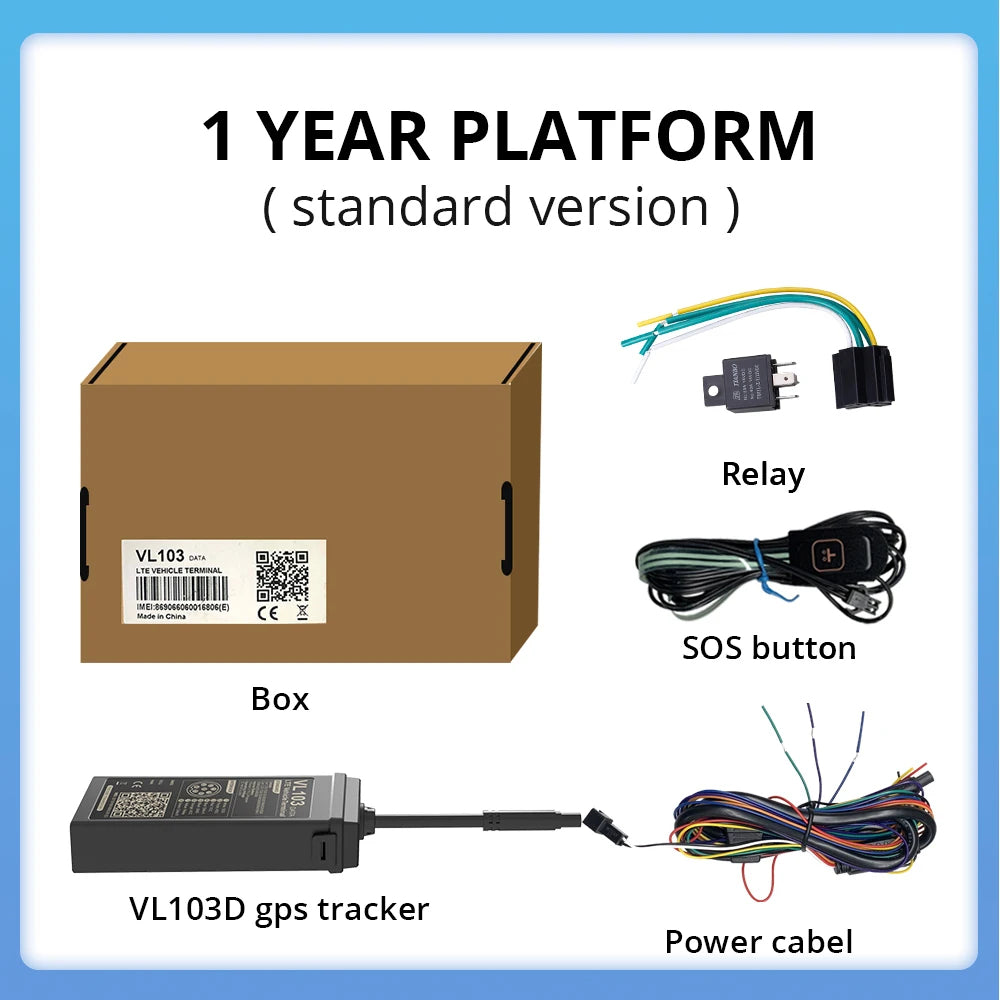

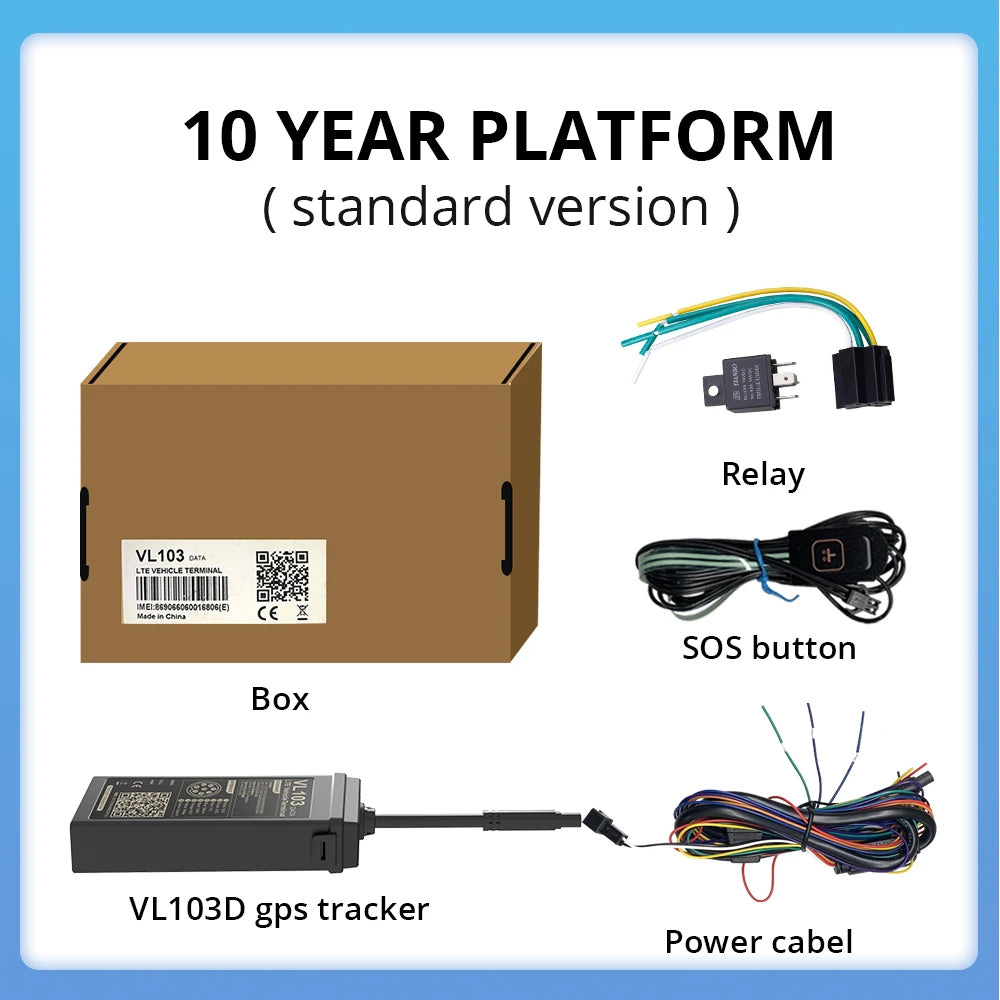

3. Packing Details for JIMIMAX VL103D
User-friendly Tracking Platform-------TracksolidPRO
Characteristics
Positioning system GPS+BDS+LBS
Positioning accuracy <2.5m CEP
Tracking sensitivity -165dBm
Acquisition sensitivity -148dBm
TTFF (open sky) Avg. hot start ≤1sec Avg. cold start ≤32sec
Communication network LTE Cat 1/GSM
Frequency VL103D (L) LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28 GSM: B2/B3/B5/B8 VL103D (E) LTE-FDD: B1/B3/B7/B8/B20/B28 LTE-TDD: B34/B38/B39/B40/B41 GSM: B2/B3/B5/B8
Battery 270mAh/3.7V industrial-grade Li-Polymer battery
Input voltage 9-90VDC
LED indication GNSS (Blue), Cellular (Green), Power (Red)
SIM Micro-SIM
Digital inputs ACC
Digital outputs Relay
Configurable I/O SOS (configurable as an extra digital output)
ADC 0-5V ADC detection
Dimensions 92.0 x 40.0 x 20.0mm
Weight 55g
Operating temperature –20℃ to +70℃
IP rating IP66
Sensors Accelerometer
Scenarios Vehicle movement alert, Speeding alert, Geo-fence entry/exit, Vehicle battery detection
Driving behavior analysis Harsh acceleration, Harsh braking, Harsh cornering, Collision
Description

JimiIoT VL103D Mini Realtime Locator Remote Control Car Tracker 4g Cable Alarm for Motorcycle RS485 270mAH Battery Cut-Off Fuel

1. Why JIMIMAX & Concox VL103D Car Tracker 4g?

Compact size with great power, the VL103D is a discreetly-installed, fully-featured tracker with LTE, GNSS, RS485 interface and the IP66 waterproof rating. LTE communication with GSM (2G) fallback ensures a solid connection in almost all cases, and the wide 9-90V input voltage range is compatible with virtually any vehicle. It is a perfect tracker for a wide range of use cases – stolen vehicle recovery and the management of motorcycles, passenger cars, and light commercial vehicles.

1). 4G Tracker Work Global

Global use for VL103D GPS tracker for motorcycle 4G car locator, we will send out the correct version E or L to you.

2). Mini size powful function

With RS485 port and battery, driver bahavior monitoring, 9-90V wide volgate 4G gps tracker.

3). Stop Engine Remotely

With relay can stop car remotely by send command Relay,1# or just click the button in TracksolidPRO APP.

4). 9-90V Wide Voltage

Suit for all kinds of vehicles tracking, boad, truck, motorbike, car, bus fleet management etc.

4). Slim Design

The smallest size among all Concox and JIMIIOT 4g gps trackers, easy to hide.

5). 270mAH built-in Battery

With built-in battery, can work even power cable was cut and more convinent for testing.

6). Car Battery Protection

No worry about your car or motorbike will drain out the original battery while you open the VL103D battery protection function.


7). Dust & Water Resistance IP66

JIMIMAX VL103D gps tracker suit for SUV, scooter , boat etc help you drive more safety.


8). 4 kinds of Driver behavior monitor

Driving behavior analysis for Harsh acceleration, Harsh braking, Harsh cornering, Collision.

2. Advantages of JIMIOT & Concox JM-VL103D Mini Tracker

1). LTE & GSM Network
Communication via 4G LTE networks with 2G GSM fallback.
2). Configurable Input/Output
Set to alarm button status monitoring by default, also configurable as an extra digital output.
3). Vehicle Battery Protection
Automatically stop drawing power from the car battery when it drops near the threshold.
4). IP66 Dust & Water Resistance
Rugged design ensures continued optimal performance, even in the toughest conditions.
5). RS232 & TTL Interface RS485 interface extends more device usage scenarios.
6). Driving Behavior Analysis (Basic)
Receive alerts when any of 4 kinds of dangerous driving.

3. Packing Details for JIMIMAX VL103D
User-friendly Tracking Platform-------TracksolidPRO
Characteristics
Positioning system GPS+BDS+LBS
Positioning accuracy <2.5m CEP
Tracking sensitivity -165dBm
Acquisition sensitivity -148dBm
TTFF (open sky) Avg. hot start ≤1sec Avg. cold start ≤32sec
Communication network LTE Cat 1/GSM
Frequency VL103D (L) LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28 GSM: B2/B3/B5/B8 VL103D (E) LTE-FDD: B1/B3/B7/B8/B20/B28 LTE-TDD: B34/B38/B39/B40/B41 GSM: B2/B3/B5/B8
Battery 270mAh/3.7V industrial-grade Li-Polymer battery
Input voltage 9-90VDC
LED indication GNSS (Blue), Cellular (Green), Power (Red)
SIM Micro-SIM
Digital inputs ACC
Digital outputs Relay
Configurable I/O SOS (configurable as an extra digital output)
ADC 0-5V ADC detection
Dimensions 92.0 x 40.0 x 20.0mm
Weight 55g
Operating temperature –20℃ to +70℃
IP rating IP66
Sensors Accelerometer
Scenarios Vehicle movement alert, Speeding alert, Geo-fence entry/exit, Vehicle battery detection
Driving behavior analysis Harsh acceleration, Harsh braking, Harsh cornering, Collision
JimiloT by JimiloT

JimiIoT VL103D 4g Mini Realtime Locator Car Tracker Cable Alarm for Motorcycle RS485 270mAH Battery

Regular price
$58.90
Sale price
$58.90
Regular price
$89.90
STYLE:
99 in Stock Now
Upgrade your tech collection with the latest must-have item, available now in limited quantities.
