JIMIIOT LL303 Solar GPS Tracker 4G Auto Tag Rastreador Waterproof Car Alarm Bluetooth Wireless APP Vehicle Tracking Device Locat

Solar & Magnetic Charging

Easy charging via the solar panel and magnetic charger.

Bluetooth to Edit Param

You can download JIMI IOT LAB APP from Iphone for Bluetooth Configuration, no need input SIM card at first. Fast and simple device configuration via app for iOS.

IP67 Dust & Water Resistance

Rugged design ensures continued optimal performance, even in the toughest conditions.

99% Efficiency no worry power off

Strong structure two way get power from solar or charger indoor. Fast and easy installation

Multiple Alerts

With TAMPER Alert, vibration alert and in/out limited ruled area alarms, cover move alert etc.

Multiple Working Modes

Configurable working modes according to your actual demands.

LTE & GSM Network

Communication via 4G LTE networks with 2G GSM fallback.

All STATUS In Your Hand

Instant alerts for atypical events such as device removal, abnormal vibration, abnormal temperature & humidity, etc.

LTE Solar Powered GNSS Tracker

The LL303 is a 4G solar-powered GPS tracker designed for the management of construction vehicles and vessels. Featuring the solar panel, magnetic charger, and IP67 waterproof rating, this device is ideal for a variety of deployments that require long standby time and continued optimal performance. LTE communication with GSM (2G) fallback ensures a solid connection in almost all cases. In addition to these features, multiple working modes, various peripheral accessories and the suite of event-triggered alerts will make the LL303 a valuable part of your fleet management strategy.

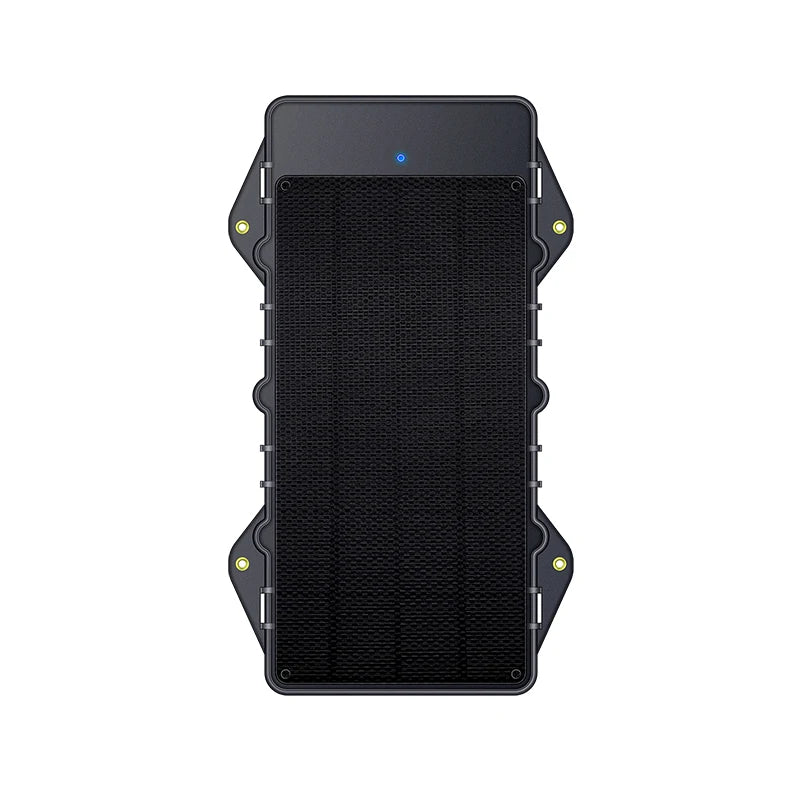

Solar Tracker LL303 Preview

Tracking Platform 7/24H Live Monitor

Characteristics

Positioning system GPS+BDS+LBS

Positioning accuracy ＜2.5m CEP

Tracking sensitivity -165dBm

Acquisition sensitivity -148dBm

TTFF (open sky) Avg. hot start ≤1sec Avg. cold start ≤32sec

Communication network LTE Cat 1/GSM; LTE Cat M1/Cat NB2

Frequency LL303-L LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28 LTE-TDD: B40 GSM: B2/B3/B5/B8LL303-E LTE-FDD: B1/B3/B5//B7/B8/B20/B28 LTE-TDD: B38/B40/B41 GSM: B2/B3/B5/B8 LL303-A Cat M1: B2/B4/B5/B12/B13/B25/B26/B66 Cat NB2: B2/B4/B5/B12/B13/B25/B66 GSM: B2/B3/B5/B8

Battery 10,000mAh/3.7V industrial-grade Li-Polymer battery

Solar power 5V/400mA (Standard Operating Voltage/Current @STC) STC: Direct illumination with 38,000lux halogen lamp on the test bench.

Magnetic charger 5V/2A

Working modes Mode 1: Timing mode Mode 2: Intelligent mode Mode 3: Power-saving mode

Standby time Up to 1 year in power-saving mode

LED indication Cellular (Green), Power (Red)

SIM Nano-SIM

Tamper proof Hall effect sensor

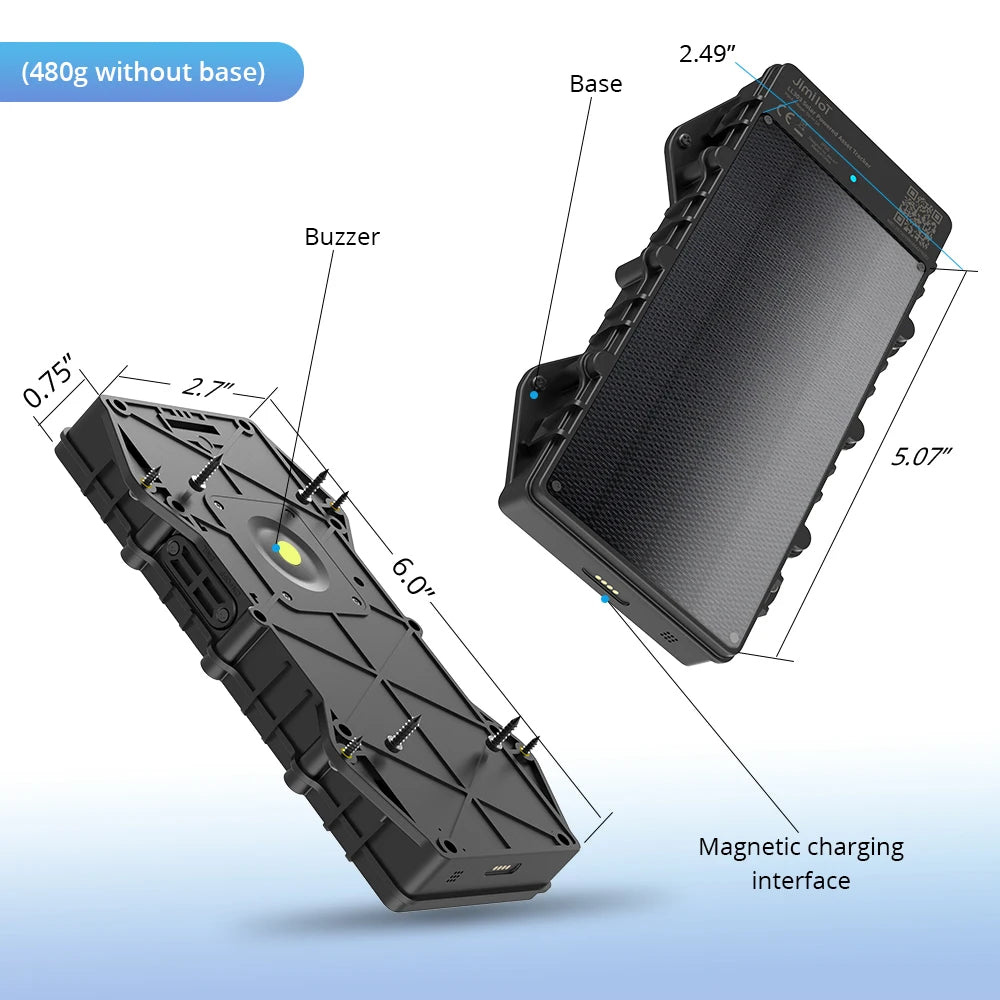

Dimensions 200x115x25mm

Weight 423g

Operating temperature –20℃ to +70℃

Operating humidity 5%～95%, non-condensing

IP rating IP67

Sensors Accelerometer, Hall effect sensor

Scenarios Low battery alert, Tamper alert, Vibrating Alert

Bluetooth BLE 5.0

RFID 2.4GHz
