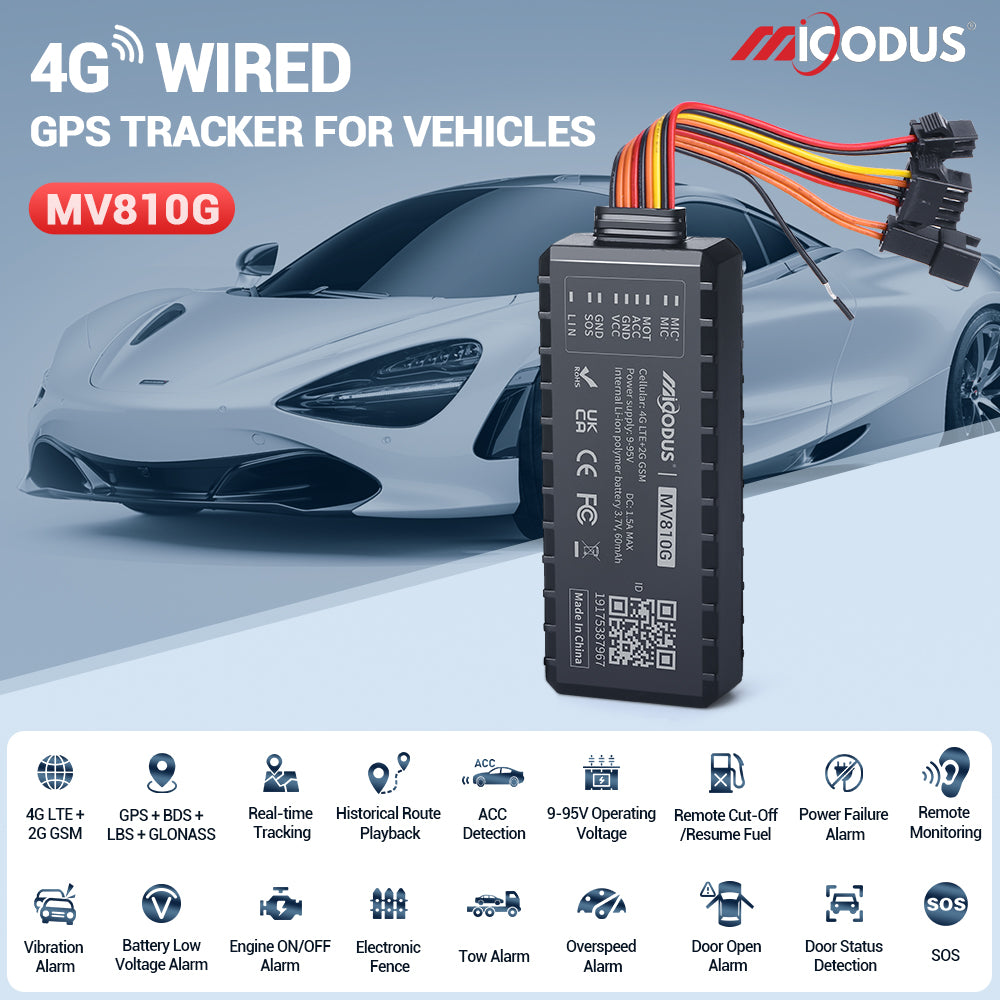

GPS Rastreador Car 4G GPS Tracker MiCODUS MV810G 9-95V Door Open Alert Cut Off Fuel Mini GPS Vibrate ACC SOS MiC Alarm

Comparison of MV810G, MV710G and J16

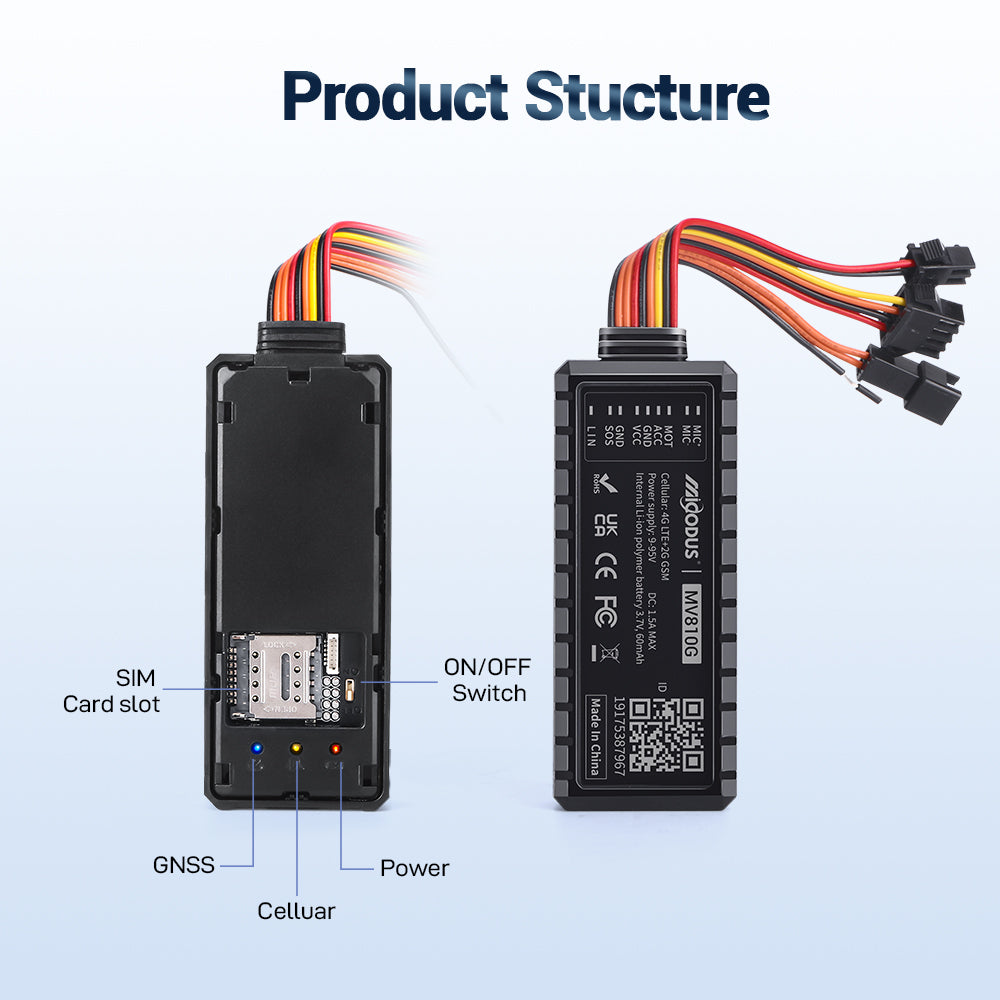

Product Structure

Product Parameters

4G LTE+2G GSM Network

MV810G works with the latest 4G LTE CAT1 network, fast and stable, and backward compatible with 2G GSM network, applicable to all countries in the world

Multiple Satellite Systems

MV810G supports multiple Global Navigation Satellite Systems(GNSS) around the world: GPS+GLONASS+BDS

Dual Positioning Ways

MV810G can locate via both satellite and base station, both indoor and outdoor can be tracked. Once it doesn't have good satellite signal, it will switch to LBS positioning mode automatically as aid.

Vehicle Battery Voltage Detecting

MV810G can detect vehicle battery's voltage, and with low voltage alarm function

60mAh Backup Battery

With 60mAh built-in backup battery MV710G can keep working around 1-2 hours after the external power disconnected

Wide Working Voltage 9-90V

With wide working voltage 9-90V DC, MV810G can be applied to various vehicles: cars, trucks, electric vehicles, motorcycles, bus etc.

Real-time Tracking On Google Maps

Google Maps real-time positioning, the minimum data upload time interval of MV810G is 5 seconds

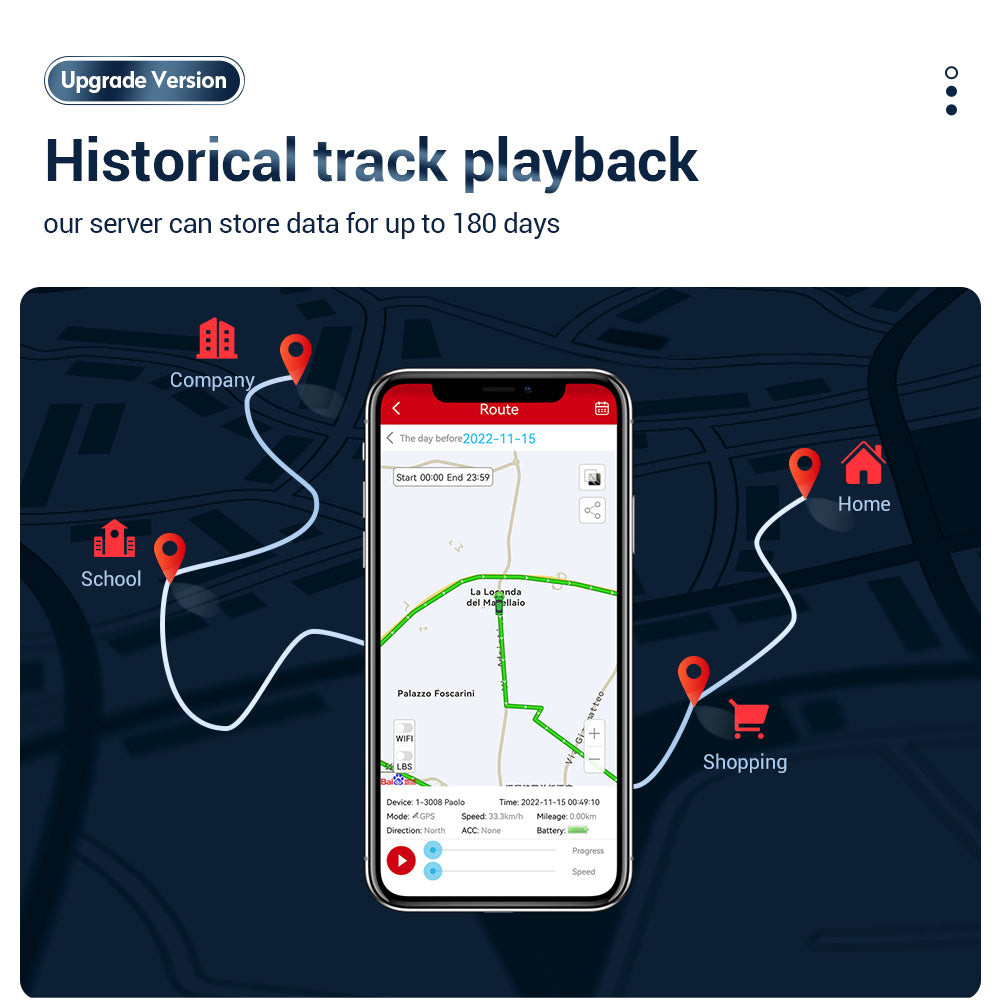

Historical Route Playback

Our MiCODUS cloud server can store history location data of your car up to 180 days, you can playback the route whenever you want

Remote Cut-Off and Resume Fuel/Power Circuit

When your car was stolen or lost control, you can remotely cut off the fuel circuit via our MiCODUS APP to get control with it and find it in the first time.

Auto Arm by ACC

The MV810G device will enter into arm status automatically once it detects engine flameout, then once the vibration alarm or movement alarm is triggered, it will send alarm message to you in the first time.

Multiple Anti-theft Alarms

Instant alerts for atypical events such as open door, vibration, displacement, power supply disconnection, geo-fence entry/exit etc, makes your car under multiple protection. And the alert ways support: SMS+Server+Call

GPS Data Compens By Cornering

When turning, the device will upload a GPS data in order to reflect the details of turning, the uploaded positioning data will be more denser and the trajectory query is more accurate.

GPS Data Supplementary of Network Blind Area

Without network, the device will disconnect with the server, but the GPS data will be saved by built-in memory, 5000pcs GPS data can be saved at the most. Once the network signal is recovered the stored GPS data will be uploaded to the tracking server.

Firmware OTA

Characteristics
Model MV810G
Weight 40g
Dimensions 79mm(L)*33mm(W)*16mm(H)
Battery Built-in 60 mAh 3.7V polymer battery
Working Voltage 9-95V DC
Working Current 12V/average 35mA
Sleep Current 12V/average 10mA
Working Temperature -20°C-75℃
Working Humidity 10%-85% RH non-condensing
SIM Card Micro SIM
Celluar Antenna Built-in, FPC
Working Frequency GSM/2G: 850/900/1800/1900MHz; LTE/4G: LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B28/B66
GNSS GPS+BDS+GLONASS
GPS Frequency L1:1575.42±1.023MHz
BDS Frequency B1:1561.098±2.046MHz
Sensitivity -162 dBm
Satellite Channels 32
Hot/Cold Start <1s, <32s @ Open Sky
Positioning Antenna Built in ceramic dielectric antenna, 18*18*4mm
Accuracy <10m (1σ)
ACC Detection 1
Cut Off Fuel/Power Standard
SOS 1
Open door Alarm 1
Microphone 1
