Description

1. Why JIMIMAX JM-VL01 4G Car GPS Tracker?

Not only a 4G LET gps tracker but also with wifi hotspot can work as a moving router.



1). Work as a Wifi router with wifi hotspot

Open wifi hotspot funtion (Default is the IMEI number and last 8 digits is wifi password) you can watch football match in your cars.



2). Stop Engine Remotely

With relay can stop car remotely by send command Relay,1# or just click the button in TracksolidPRO APP.



3). 4G LET +GSM network work all over the world

4G Cat1 LET gps tracker more stable and fast for position.


4). Kinds of Driver behavior monitoring

Driving behavior analysis for Harsh acceleration, Harsh braking, Harsh cornering, Collision.



5). Multi-Alerts in Tracking platform and APP

You can get vibration alerts, moving alerts, Geo-fence, low-power, power cut-off alerts, sharp turnning, harsh speeding alarm etc



6). SOS panic button optional

SOS panic button optional for urgent things.



7). ACC Detection

Get ACC on/ off alerts remotely know ignition status more easy.

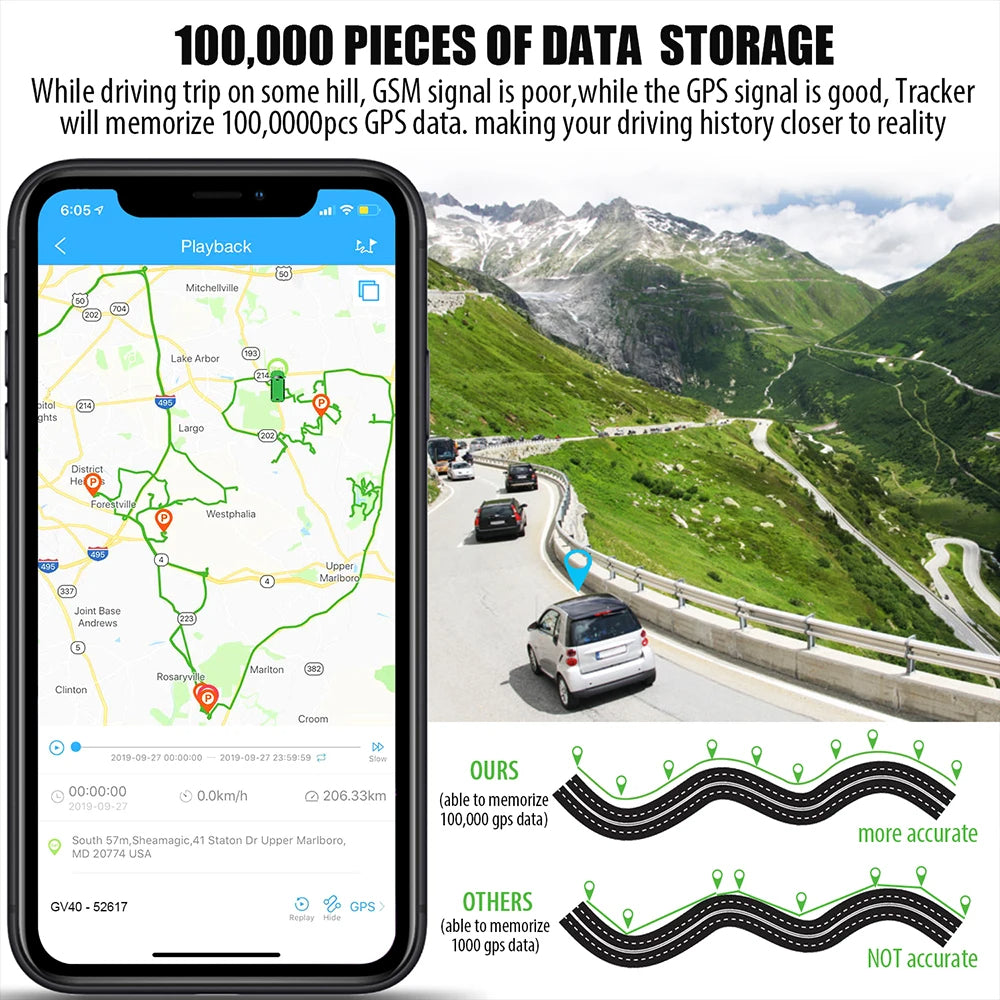

8). 100,000 Pieces Data Storage

With big RAM even if drive in moutains or other no GSM signal area, our gps tracker can store the data and reload to our tracking server later.


9). Overspeed alerts

You can get over speed or vibration alerts from APP or SMS or PC side.

MAIN FEATURES

2. Advantages of JIMIMax & Concox JM-VL01 Car GPS Tracker:

1). LTE & GSM Network;
The device can receive and transmit data in the coverage of 4G and 2G network. JM-VL01:
LTE: B2/B4/B5/B7/B12/B13
GSM: 850/900/1800/1900 MHz

2).Driving Behavior Analysis (Basic);
You will receive immediate alert when driver's dangerous driving behavior is detected

3). Vehicle Battery Protection;
Optimized battery protection prevents vehicle battery from draining out or damage

4). Remote Cut-off (Fuel/Power)
Immobilize a vehicle by cutting off the power source through a relay

5). Ignition Detection;
Always keeps you informed of the ACC status of your vehicle

6).Tamper Alert;
When device's attitude has (been) changed, you'll be notified of falling or man-made removal


LTE Cat 4 Vehicle GNSS Tracker

Improve the performance of your fleet business today with the feature-rich and lightning-fast JM-VL01. The JM-VL01 is a powerful and easy-to-install 4G GPS tracker that gives you actionable telematics insights. In addition to standard functions such as GPS location and geo-fence alerts, the JM-VL01 can also act as a WiFi hotspot.


3. What can JM-VL01 4G LTE GPS tracker do for you?

1). With 4G network more quick and stable even roaming to another country.

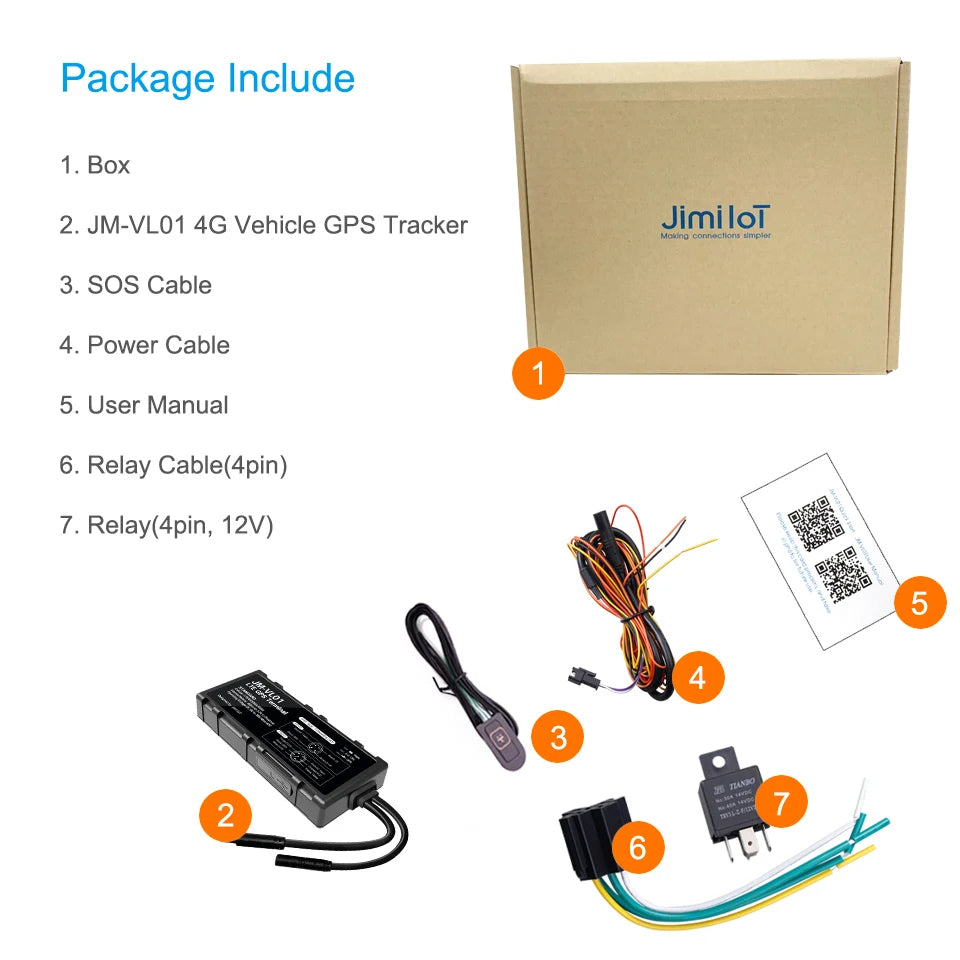

PACKAGE SETS

Packing Details for JIMIMAX JM-VL01

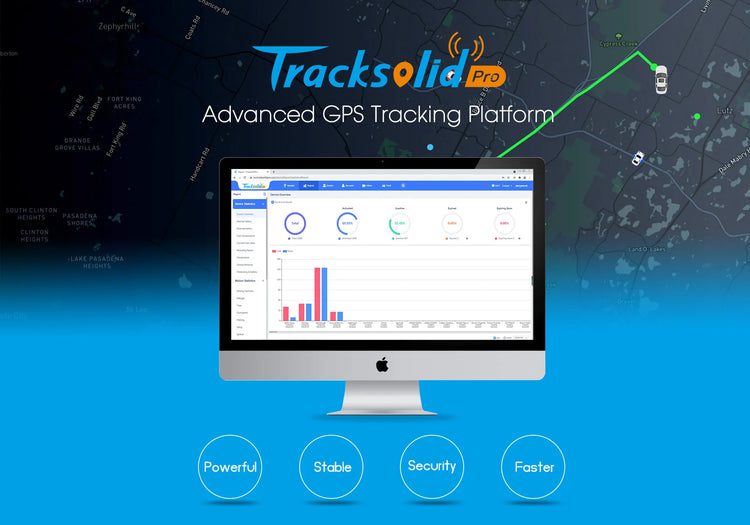

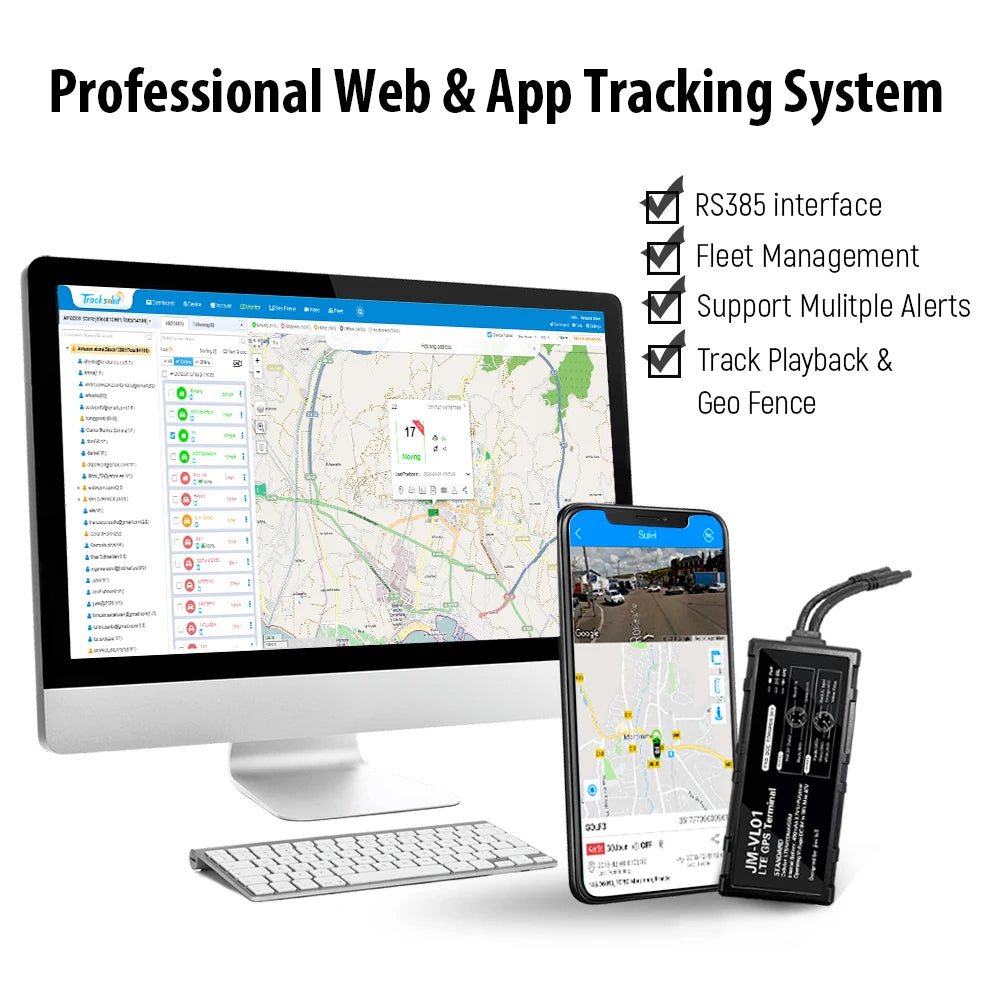

User-friendly Tracking Platform-------TracksolidPRO

Characteristics
Positioning system GPS
Positioning accuracy <2.5m CEP
Tracking sensitivity -162dBm
Acquisition sensitivity -149dBm
TTFF (open sky) Avg. hot start ≤1sec; Avg. cold start ≤45sec
Communication network LTE/UMTS/GSM
Frequency JM-VL01LA: LTE: B1/B2/B3/B4/B5/B7/B8/B28AB UMTS/HSPA: 850/900/1900/2100 MHz GSM: 850/900/1800/1900 MHz JM-VL01E: LTE: B1/B3/B5/B7/B8/B20/B28A UMTS/HSPA: 900/1900/2100 MHz GSM: 900/1800 MHz
Battery 450mAh/3.7V industrial-grade Li-Polymer battery
Input voltage 9-36VDC
LED indication GNSS (Blue), Cellular (Green), Power (Red)
SIM Micro-SIM
Data storage 4Gb+2Gb
Digital inputs ACC, SOS
Digital outputs Relay
Dimensions 113.0 x 51.0 x 20.0mm
Weight 105g
Operating temperature –20℃ to +70℃
Operating humidity 5%~95%, non-condensing
IP rating IP65
Sensors Accelerometer
Scenarios Vehicle movement alert, Over-speed alert, Geo-fence, Vehicle battery detection, Power supply disconnection
Driving behavior analysis Harsh acceleration, Harsh braking, Harsh cornering, Collision
Description

1. Why JIMIMAX JM-VL01 4G Car GPS Tracker?

Not only a 4G LET gps tracker but also with wifi hotspot can work as a moving router.



1). Work as a Wifi router with wifi hotspot

Open wifi hotspot funtion (Default is the IMEI number and last 8 digits is wifi password) you can watch football match in your cars.



2). Stop Engine Remotely

With relay can stop car remotely by send command Relay,1# or just click the button in TracksolidPRO APP.



3). 4G LET +GSM network work all over the world

4G Cat1 LET gps tracker more stable and fast for position.


4). Kinds of Driver behavior monitoring

Driving behavior analysis for Harsh acceleration, Harsh braking, Harsh cornering, Collision.



5). Multi-Alerts in Tracking platform and APP

You can get vibration alerts, moving alerts, Geo-fence, low-power, power cut-off alerts, sharp turnning, harsh speeding alarm etc



6). SOS panic button optional

SOS panic button optional for urgent things.



7). ACC Detection

Get ACC on/ off alerts remotely know ignition status more easy.


8). 100,000 Pieces Data Storage

With big RAM even if drive in moutains or other no GSM signal area, our gps tracker can store the data and reload to our tracking server later.


9). Overspeed alerts

You can get over speed or vibration alerts from APP or SMS or PC side.

MAIN FEATURES

2. Advantages of JIMIMax & Concox JM-VL01 Car GPS Tracker:

1). LTE & GSM Network;
The device can receive and transmit data in the coverage of 4G and 2G network. JM-VL01:
LTE: B2/B4/B5/B7/B12/B13
GSM: 850/900/1800/1900 MHz

2).Driving Behavior Analysis (Basic);
You will receive immediate alert when driver's dangerous driving behavior is detected

3). Vehicle Battery Protection;
Optimized battery protection prevents vehicle battery from draining out or damage

4). Remote Cut-off (Fuel/Power)
Immobilize a vehicle by cutting off the power source through a relay

5). Ignition Detection;
Always keeps you informed of the ACC status of your vehicle

6).Tamper Alert;
When device's attitude has (been) changed, you'll be notified of falling or man-made removal


LTE Cat 4 Vehicle GNSS Tracker

Improve the performance of your fleet business today with the feature-rich and lightning-fast JM-VL01. The JM-VL01 is a powerful and easy-to-install 4G GPS tracker that gives you actionable telematics insights. In addition to standard functions such as GPS location and geo-fence alerts, the JM-VL01 can also act as a WiFi hotspot.


3. What can JM-VL01 4G LTE GPS tracker do for you?

1). With 4G network more quick and stable even roaming to another country.

PACKAGE SETS

Packing Details for JIMIMAX JM-VL01

User-friendly Tracking Platform-------TracksolidPRO

Characteristics
Positioning system GPS
Positioning accuracy <2.5m CEP
Tracking sensitivity -162dBm
Acquisition sensitivity -149dBm
TTFF (open sky) Avg. hot start ≤1sec; Avg. cold start ≤45sec
Communication network LTE/UMTS/GSM
Frequency JM-VL01LA: LTE: B1/B2/B3/B4/B5/B7/B8/B28AB UMTS/HSPA: 850/900/1900/2100 MHz GSM: 850/900/1800/1900 MHz JM-VL01E: LTE: B1/B3/B5/B7/B8/B20/B28A UMTS/HSPA: 900/1900/2100 MHz GSM: 900/1800 MHz
Battery 450mAh/3.7V industrial-grade Li-Polymer battery
Input voltage 9-36VDC
LED indication GNSS (Blue), Cellular (Green), Power (Red)
SIM Micro-SIM
Data storage 4Gb+2Gb
Digital inputs ACC, SOS
Digital outputs Relay
Dimensions 113.0 x 51.0 x 20.0mm
Weight 105g
Operating temperature –20℃ to +70℃
Operating humidity 5%~95%, non-condensing
IP rating IP65
Sensors Accelerometer
Scenarios Vehicle movement alert, Over-speed alert, Geo-fence, Vehicle battery detection, Power supply disconnection
Driving behavior analysis Harsh acceleration, Harsh braking, Harsh cornering, Collision
JimiloT by JimiloT

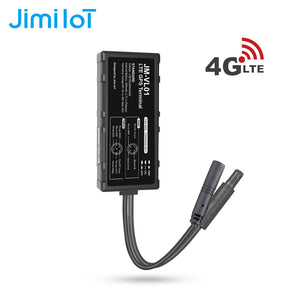

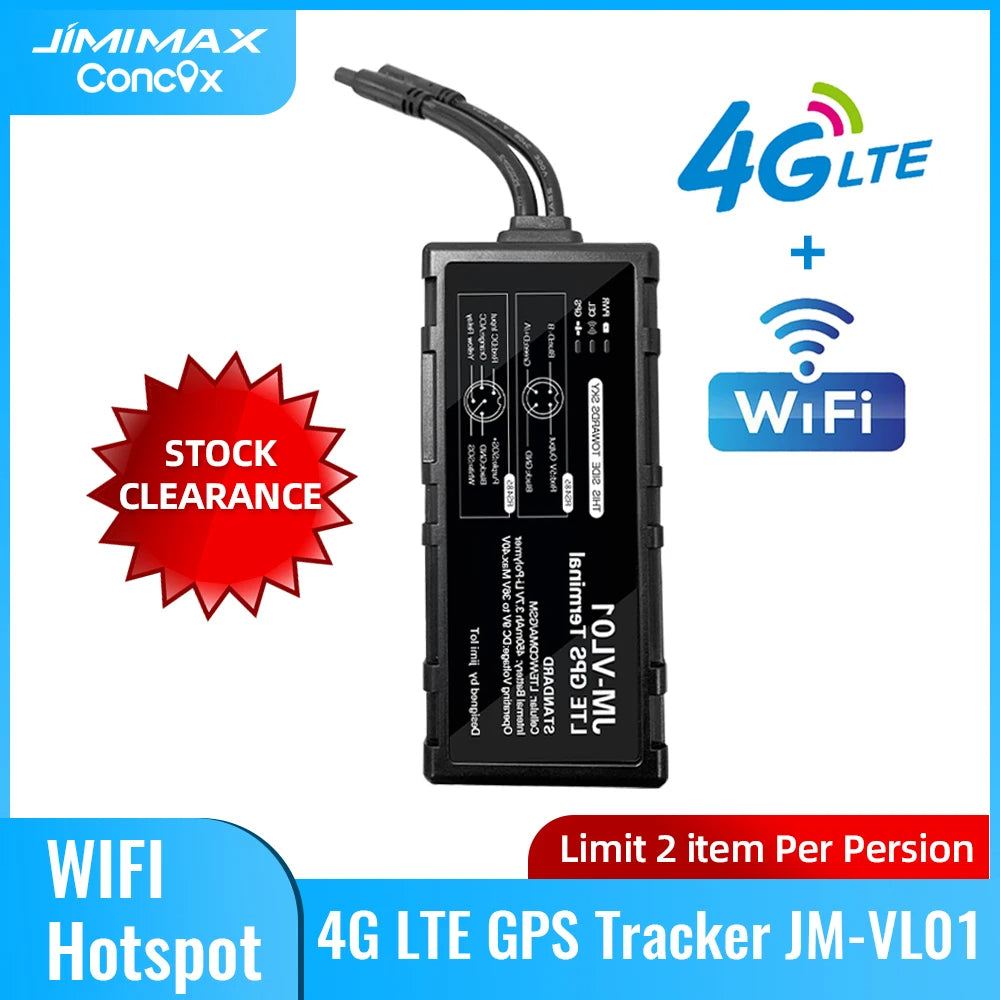

JIMI 4G JM-VL01 Wifi Hotspot Vehicle Tracking Device Cut-off Engine Remote RS485 Port Multi Alarm Anti-thieft GPS Locator

Regular price
$75.99
Sale price
$75.99
Regular price
$99.99
99 in Stock Now
Upgrade your tech collection with the latest must-have item, available now in limited quantities.
Next Day Delivery
Lightning-fast shipping, guaranteed.
Free 30-day returns
Shop risk-free with easy returns.
