With the growing demand for vehicle security, more and more car owners are opting for GPS trackers to safeguard their vehicles. The MiCODUS MV55G 4G OBDII GNSS Tracker stands out as a top choice due to its powerful features and ease of use. In this blog post, we’ll walk you through how to connect the MV55G tracker to a software protocol, enabling real-time monitoring and tracking.
1. Device Overview

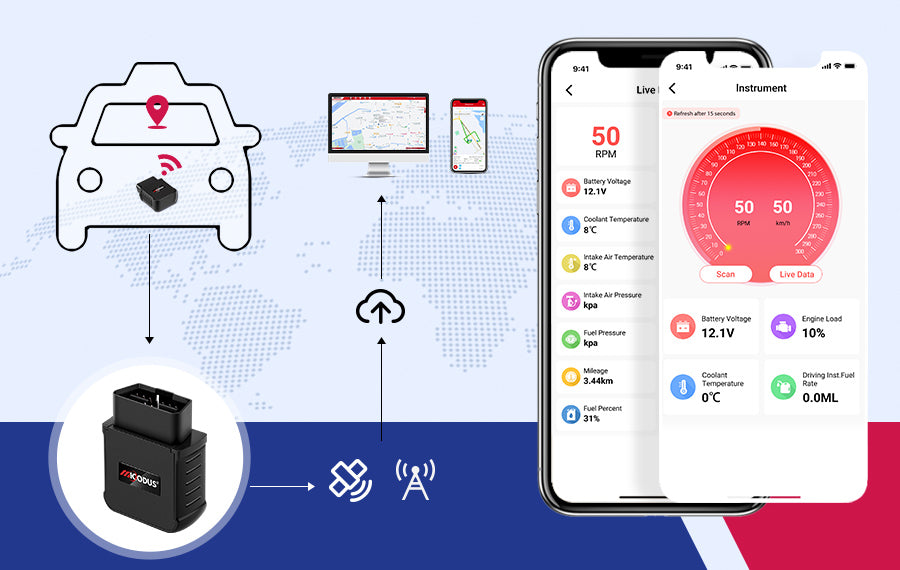

The MiCODUS MV55G 4G OBDII GNSS Tracker is a robust vehicle tracking device that supports 4G LTE, 3G, and 2G networks. It offers real-time GPS tracking, historical route playback, and vehicle status monitoring, among other features. Additionally, the MV55G provides lifetime free app support, allowing users to monitor their vehicles anytime, anywhere through a smartphone or computer.
2. Preparation
Before configuring the device, ensure you have completed the following steps:
- Install and Activate the MV55G Tracker: Plug the device into your vehicle’s OBDII port.
- Obtain a SIM Card: Ensure the SIM card is activated and supports 4G/3G/2G data transmission.
- Download and Install the Official MiCODUS App or access the official website.
3. Configure Device Parameters
First, you’ll need to configure the basic parameters of the MV55G tracker. This can be done via SMS commands or a dedicated configuration tool:
-
APN Settings: Send an SMS command to the device to configure the SIM card's APN (Access Point Name) to enable internet connectivity through the mobile network. Example:
APN123456 apnname
. -
Server IP and Port: Set up the device's server IP address and port number so it can send data to the monitoring platform. Example:
SERVER123456 IP address port number
.
4. Select the Software Protocol
The MV55G supports various communication protocols, such as TCP and UDP. During configuration, you can choose the appropriate protocol based on the server requirements. TCP is generally recommended for its higher reliability.
5. Connect to the Monitoring Server
Once the above configurations are completed, the MV55G tracker will automatically send data to the configured server via the mobile network. The monitoring software or platform on the server side must support and parse the MV55G’s data protocol to correctly display vehicle location and other related information.
6. Monitor Using the App
By downloading the official MiCODUS app, you can log into the server and view data from the MV55G device in real time. The app offers various features, such as:
- Real-Time Tracking: Display the vehicle’s real-time location.
- Historical Routes: Playback the vehicle's driving history over a specified period.
- Vehicle Status: Monitor vehicle status information such as ignition, speed, and more.
7. Testing and Troubleshooting
After configuration, restart the MV55G tracker and perform a connection test to ensure the device successfully connects to the server and that data is displayed correctly in the app. If you encounter issues, you can use SMS commands to check the device status or contact technical support for assistance.
Conclusion
The MiCODUS MV55G 4G OBDII GNSS Tracker is an excellent choice for vehicle tracking and management, thanks to its powerful features and user-friendly setup. By correctly configuring and connecting to a software protocol, you can monitor your vehicle's movements in real time and ensure its safety. We hope this guide helps you make the most of your MV55G tracker. For further assistance, please refer to the device manual or contact the official customer support.
